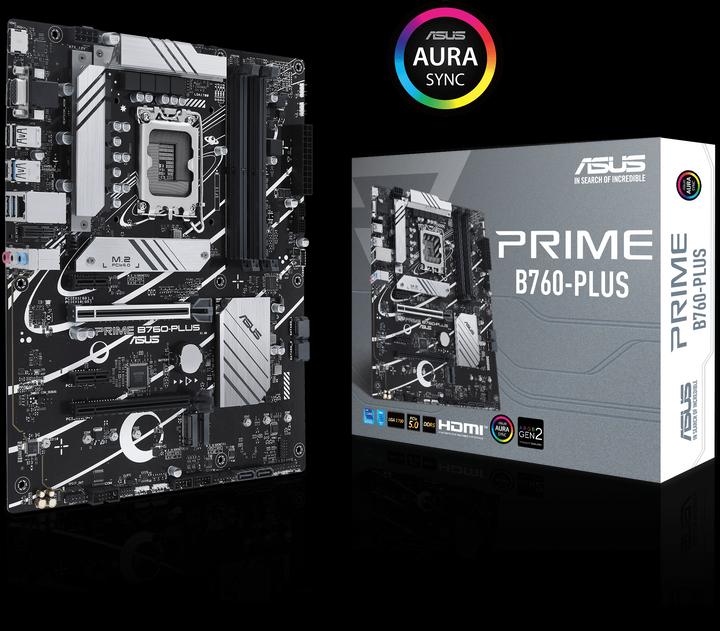

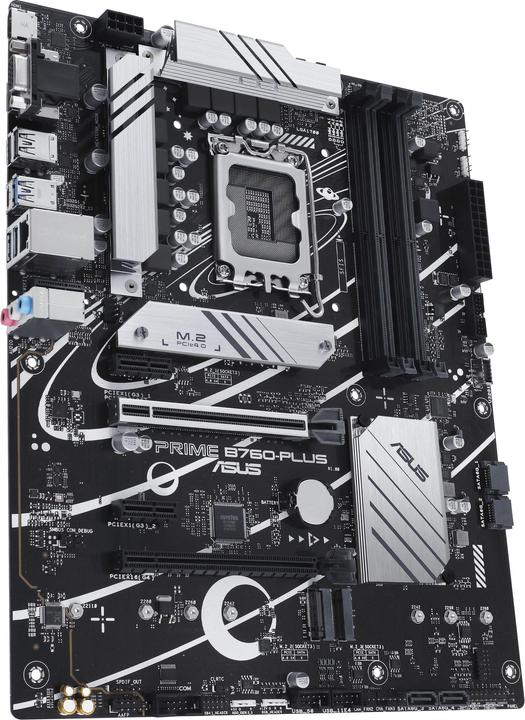

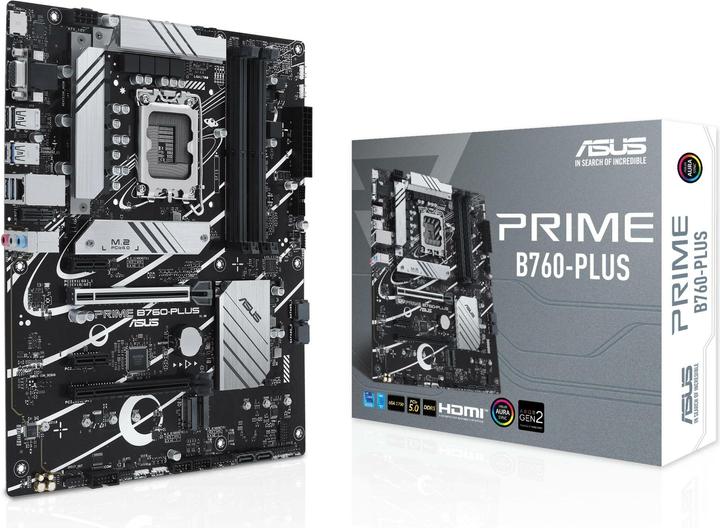

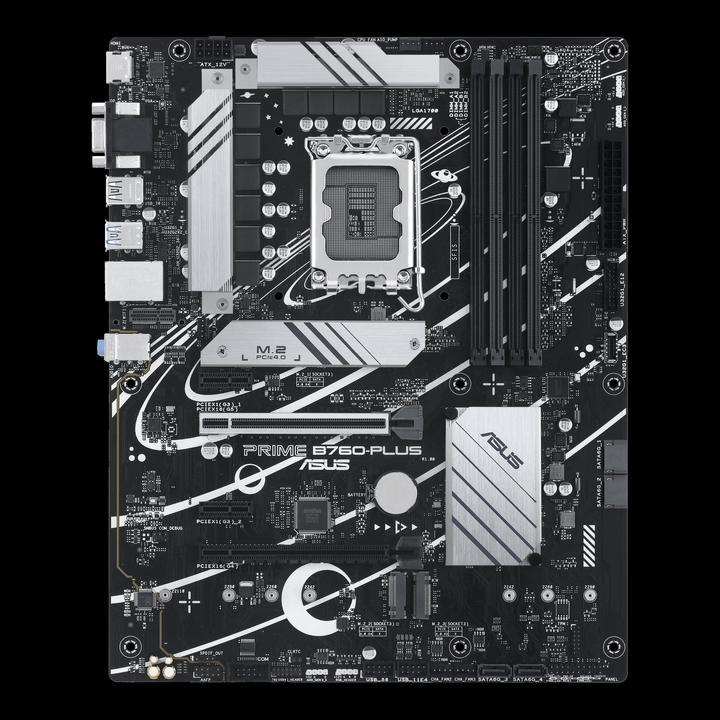

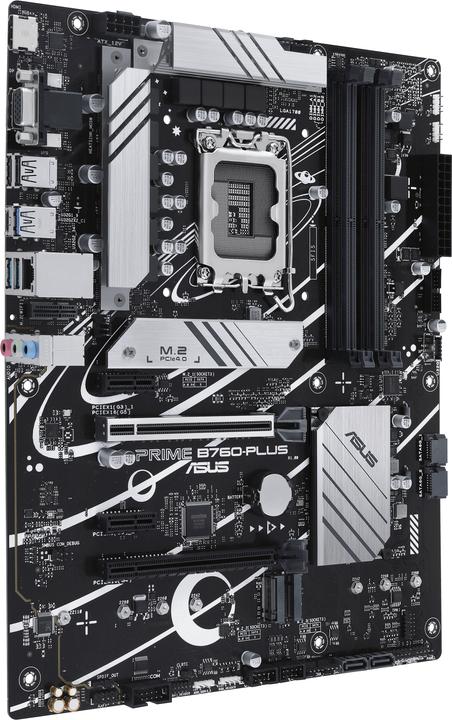

The ASUS Prime B760-PLUS is an ATX motherboard featuring the Intel B760 chipset and LGA 1700 socket. This motherboard is compatible with 12th and 13th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory with speeds of up to 3,200 MHz and is particularly well-suited for RAM overclocking due to its excellent power delivery.
In addition to a stable power supply with high-quality VRMs, the ASUS Prime B760-PLUS boasts several highlights that significantly facilitate system overclocking. The DIGI+ VRM allows for adjustment of VRM voltage and frequency modulation, while the VRM cooler ensures safety during overclocking attempts on this board.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Mainboard features | Front panel audio connector, RGB header |
Item number | 24967603 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1EF0-M0EAY0 |
Release date | 2.3.2023 |
Sales rank in Category Motherboards | 48 of 1018 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7200 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

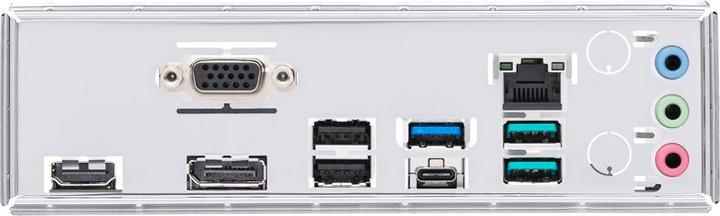

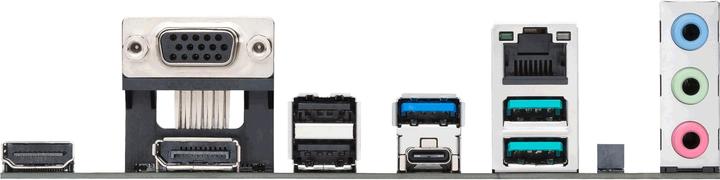

Video connections | D-Sub (1x), DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Jack 3.5mm Line In (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 3 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (1x), USB-A 3.2 Gen 1 (2x) |
Power connectors | 24-pin ATX, 8-pin EATX 12V |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

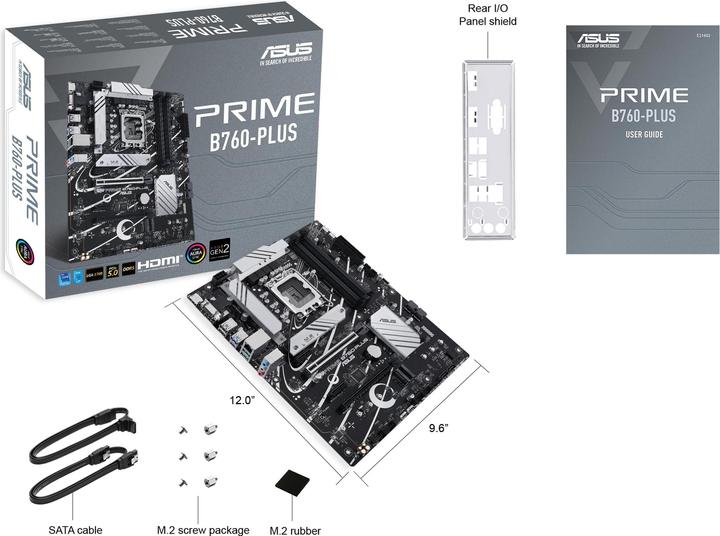

Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 36 mm |
Weight | 760 g |
Length | 34 cm |
Width | 32 cm |
Height | 4 cm |
Weight | 1.05 kg |
