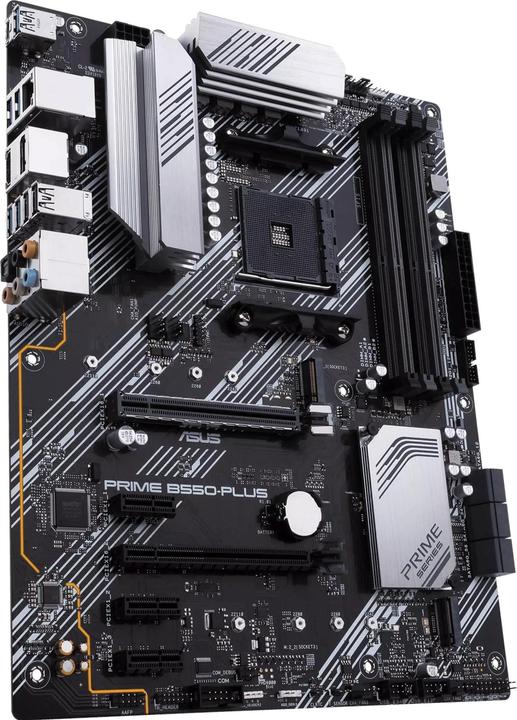

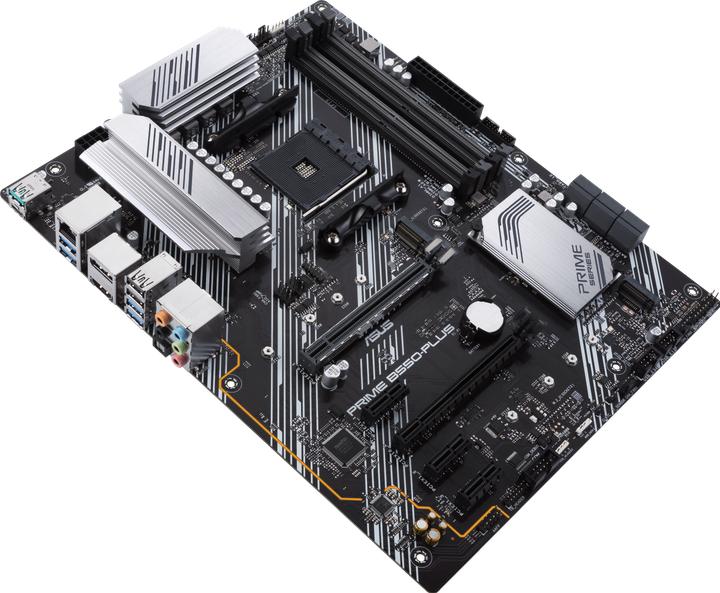

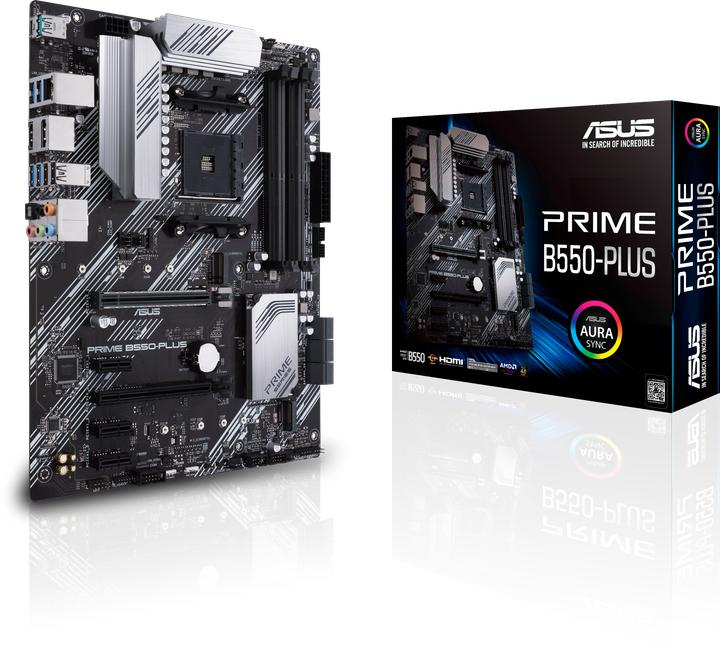

ASUS PRIME B550-PLUS
AM4, AMD B550, ATXtonight with flash delivery
to check if flash delivery is available to you.
Product details
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard offers flexible tools for fine-tuning every aspect of your system, allowing you to perfectly adjust performance settings to match your workflow and maximize your productivity.
Processor family | Ryzen 3rd generation |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (6x) |
Item number | 13348833 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB14U0-M0EAY0 |
Release date | 17.6.2020 |
Sales rank in Category Motherboards | 105 of 993 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD B550 |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 3rd generation |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2800, DDR4-3000, DDR4-3200 |
Max. RAM OC | 4600 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Multi-GPU technology | AMD 2-Way CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887 |
Audio channel | 7.1 Channel |
Audio Connections | Optical TOSLINK (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (3x) |
PCI express version (max.) | 4 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 3.0 (4x) |
Power connectors | 24-pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 305 mm |
Width | 244 mm |
Height | 670 mm |
Weight | 1000 g |
Length | 33 cm |
Width | 26.60 cm |
Height | 5.40 cm |
Weight | 1.34 kg |
