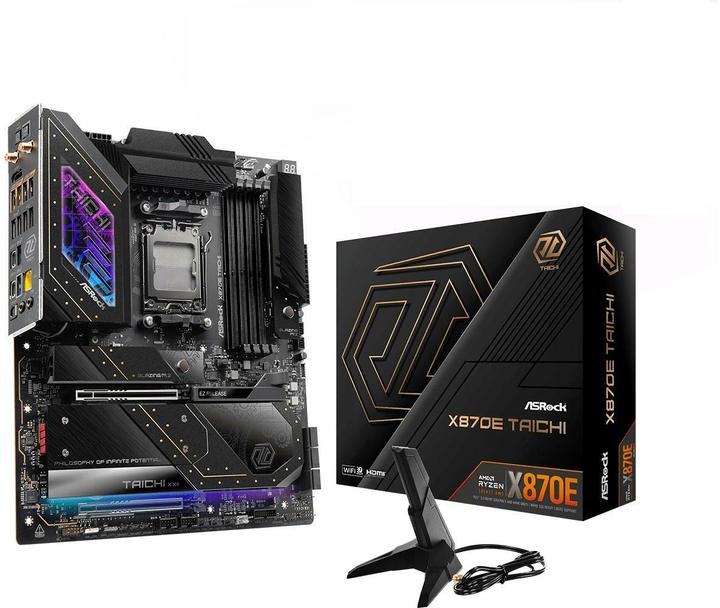

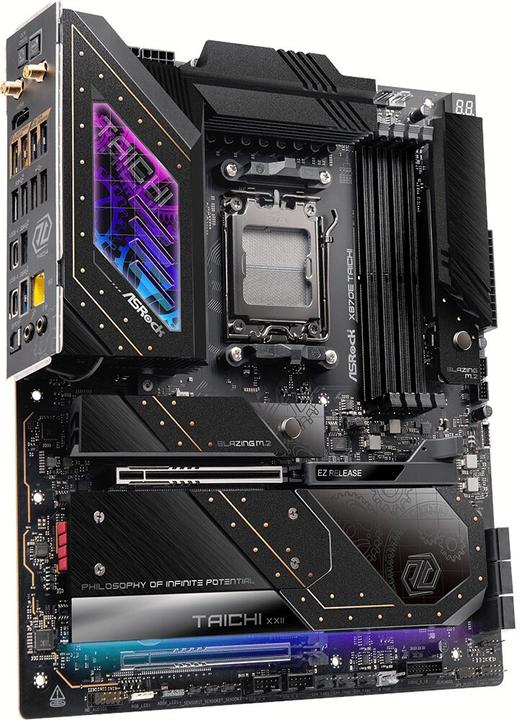

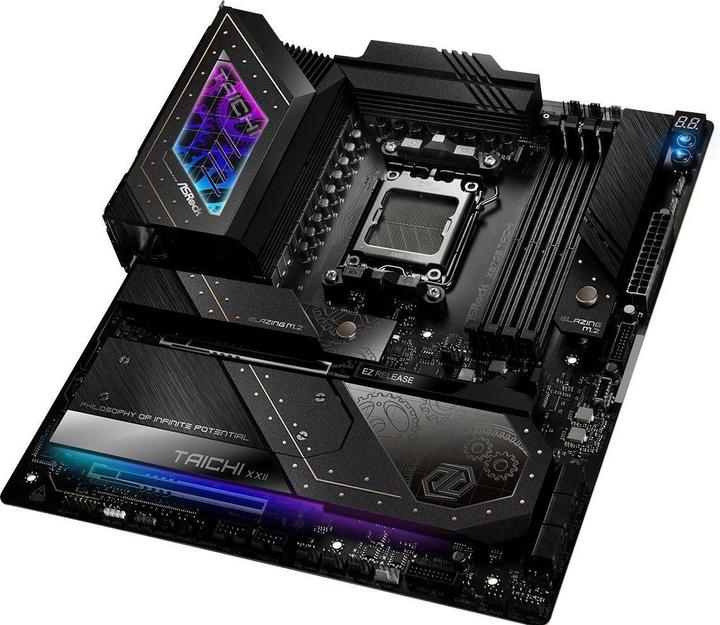

The ASRock X870E Taichi is based on the AMD X870E chipset and supports AMD processors for the AM5 socket. It features four DDR5 slots for up to 256 GB of RAM. Additional features of the ASRock X870E Taichi include a PCIe 5.0 x16 slot and a PCIe 5.0 x16 slot (x8 lanes). Furthermore, the ASRock X870E Taichi offers 8-channel sound, a 5 Gigabit LAN interface, WiFi 7, Bluetooth 5.4, six SATA3 ports, four M.2 slots, and a variety of USB interfaces.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (4x), S-ATA III (6x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Power-On Button, Reset button |
Item number | 49690731 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBP90-A0UAYZ |
Release date | 24.9.2024 |
Form factor | E-ATX |
Socket | AM5 |
Chipset | AMD X870E |
Mainboard features | Clear CMOS Button, Power-On Button, Reset button |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5-5200, DDR5-5600 |
Max. RAM OC | 8200 MHz |
Supported memory speed | 8200 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | 2 x USB-C, HDMI (1x) |
Network connections | RJ45 5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC4082 |
Audio channel | 7.1 Channel |
Audio Connections | Audio Out (1x), Microphone connection (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (4x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (2x) |
PCI express version (max.) | 5 |
Number of fan connector | 6 |

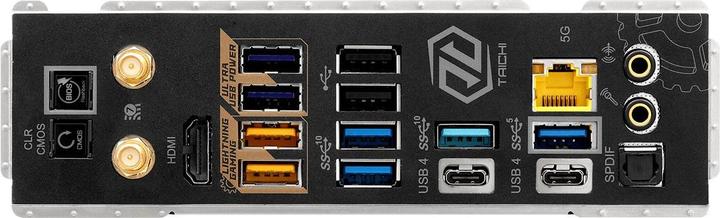

USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (3x), USB-C 3.2 Gen 2x2 (1x), USB-C 4 (2x) |
Power connectors | 24-pin ATX, 2x 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Length | 267 mm |
Width | 305 mm |
Height | 80 mm |
Weight | 3400 g |
Length | 36.60 cm |
Width | 32.50 cm |
Height | 8.50 cm |
Weight | 3.53 kg |
