AsRock X670E Taichi Carrara

AM5, AMD X670, E-ATX
6Ratings
BrandMore from AsRock
Delivered between Wed, 18.6. and Mon, 23.6.
9 items in stock at third-party supplier
Supplied by

Product details

The ASRock X670E Taichi Carrara is equipped with the high-end X670E chipset for AMD's Ryzen 7000 series processors and offers numerous features for enthusiasts and gamers. The Ryzen 7000 processors require a new socket due to support for PCIe 5.0 and enhanced power delivery, which is why the AM5 socket (LGA 1718) is used on the 600 series motherboards. Despite the increased pin count of AM5, the actual size of the socket remains the same as the older generation, allowing most CPU coolers designed for the AM4 socket to be mounted on the motherboard. With features like a BIOS FlashBack button and voltage regulators with 24+2+1 phases, the ASRock X670E Taichi Carrara is well-suited for overclocking and gaming. The integrated 2.5 Gbit/s LAN connection and Wi-Fi enable lightning-fast internet connectivity, allowing even the largest files to be downloaded in just a few minutes.

Key specifications

Processor family
AMD 5000 Series
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 SATA (2x), S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Front panel audio connector
Item number
22518302

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBJ10-A0UAYZ
Release date
14.9.2022
External links
Manufacturer's site (de)

Motherboard properties

Form factor
E-ATX
Socket
AM5
Chipset
AMD X670
Mainboard features
Front panel audio connector
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
AMD 5000 Series

Memory

Memory form factor
DIMM
Number of pins
240 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Max. RAM OC
6600 MHz
Supported memory speed
6600 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Killer NIC
Ethernet controller
Killer E3100G
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC4082
Audio channel
5.1 channels
Audio Connections
Audio In

Internal interfaces

Internal connection options
M.2 SATA (2x), S-ATA III (4x)
Expansion slot
PCI Express x16 (1x), PCI Express x16 (2x)
Number of fan connector
8

Further connections

Exact USB ports
USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 2 (1x)

Power supply

Power connectors
24-pin ATX

Voluntary climate contribution

CO₂-Emission
Climate contribution

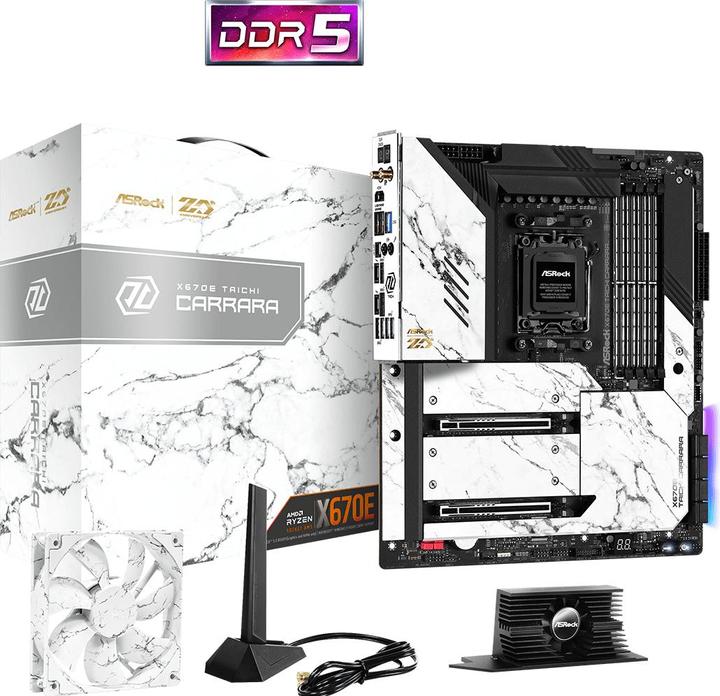

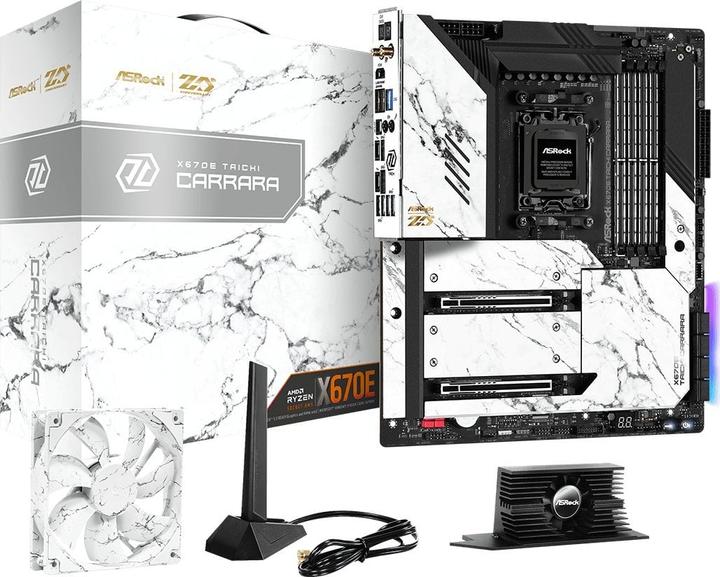

Scope of delivery

Scope of delivery
4 x Serial ATA cable

Product dimensions

Length
267 mm
Width
305 mm
Height
370 mm
Weight
3980 g

Package dimensions

Length
38 cm
Width
34.30 cm
Height
13.40 cm
Weight
3.97 kg

30-day right of return
24 Months Warranty (Bring-in)
