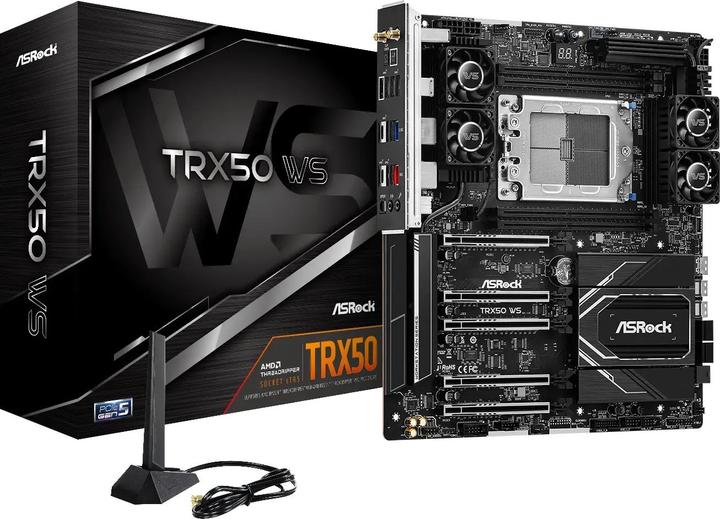

AsRock TRX50 WS
sTR5, AMD TRX50, E-ATXOnly 3 items in stock at supplier
Product details
The ASRock TRX50 WS motherboard offers a powerful and versatile solution for professional use and gaming. This motherboard is designed to support AMD Ryzen Threadripper and AMD Ryzen Threadripper PRO processors, delivering excellent performance for demanding tasks. The quad-channel DDR5 memory support allows for up to one terabyte of memory, and Wi-Fi 6E and Bluetooth 5.2 provide fast wireless connections.
The TRX50 WS offers comprehensive connectivity, including USB4 Type-C ports and 10 Gb/s Ethernet as well as 2.5 Ethernet ports, facilitating rapid data transfer and robust network features. Overall, this motherboard is a reliable and efficient choice for very demanding applications.
- AMD sTR5 socket supports AMD Ryzen Threadripper and AMD Ryzen Threadripper PRO processors
- 18+3+3 phase power supply, 110A SPS design for VCore
- 4 x DDR5 DIMM memory slots, max. 1 TB
- Supports quad-channel ECC memory, up to 7600+ (OC)
- Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio.
Processor family | Ryzen Threadripper |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, COM Port Header |
Item number | 39672743 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBN40-A0UAYZ |
Release date | 1.11.2023 |
External links |
Form factor | E-ATX |
Socket | sTR5 |
Chipset | AMD TRX50 |
Mainboard features | Clear CMOS Button, COM Port Header |
Operating system compatibility | Windows 11 Home |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Ryzen Threadripper |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 1000 GB |
Memory chip | DDR5-7200 |
Max. RAM OC | 7600 MHz |
Supported memory speed | 7600 MHz |
Memory type | DDR5 RAM |
RAM buffer | ECC Registered |

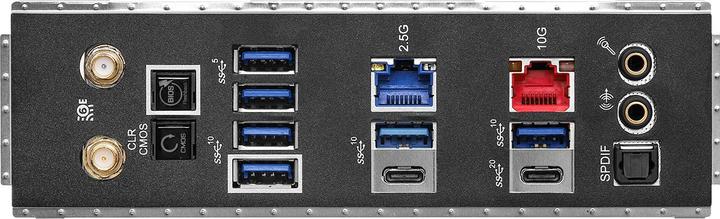

Network connections | RJ45 10 Gigabit Ethernet (1x), RJ45 2.5 Gigabit Ethernet (1x), RJ45 5 Gigabit Ethernet (1x) |
Ethernet controller brand | Marvell |
Ethernet controller | Dragon RTL8125BG, Marvell AQC113 |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Microphone |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (5x) |
PCI express version (max.) | 5 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (2x) |
Power connectors | 24-pin ATX, 2x 6-pin PCI-E, 2x 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | SATA cable - 4 pcs., Screws, WiFi antenna |
Length | 277 mm |
Width | 305 mm |
Length | 38.50 cm |
Width | 34.30 cm |
Height | 10.30 cm |
Weight | 3.61 kg |
