The ASRock Radeon RX 9060 XT Steel Legend OC is a powerful graphics card designed for demanding applications and gaming. With 16 GB of GDDR6 memory, it offers high performance and efficiency, essential for modern gaming and graphic design requirements. The active cooling system ensures that the card remains cool under load, enhancing its longevity and stability. Support for PCIe 4.0 enables fast data transfer and improves the overall performance of the system. With two HDMI and two DisplayPort connections, the graphics card is versatile and allows for the connection of multiple monitors for an expanded gaming or work environment.
Max. connected monitors | 3x |
Max. video resolution | 7680 x 4320 pixels |
Graphics card model | Radeon RX 9060 XT |
Number of shaders | 2048x |
Video memory clock | 20 GHz |
Power consumption | 150 W |
Length | 29.80 cm |
Item number | 58867630 |
Manufacturer | AsRock |
Category | Graphics card |
Manufacturer no. | 90-GA5JZZ-00UANF |
Release date | 26.5.2025 |
External links |
Max. connected monitors | 3x |
PCI Express version | PCIe 5.0 |
Max. video resolution | 7680 x 4320 pixels |
Expansion card form factor | 2.5 Slots |

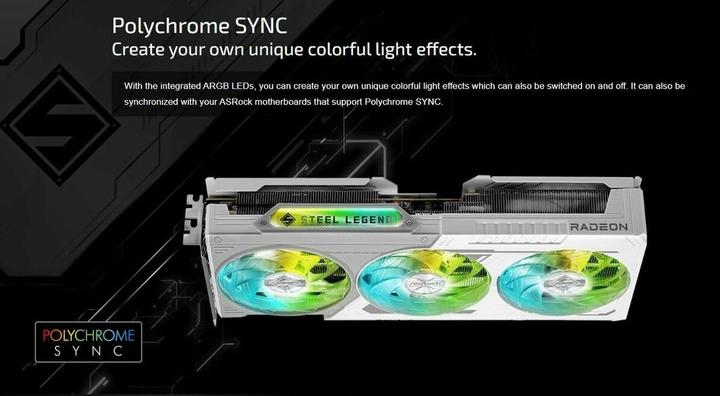

LED colour | RGB |
Graphics chip (GPU) | AMD Radeon |
Graphics card model | Radeon RX 9060 XT |
Boost frequency | 3320 MHz |
Number of shaders | 2048x |
Video memory type | GDDR6 |
Storage capacity | 16 GB |
Video memory clock | 20 GHz |
Memory Interface | 128 bits |
Memory Bandwidth | 320 GB/s |
Number of fans | 3x |
DirectX version | 12 |
OpenGL version | 4.6 |
GPU microarchitecture | AMD RDNA 4 |
GPU manufacturer technology | AMD Fidelity FX Super Resolution 4, AMD freesync, AMD HYPR-RX |
Video connections | DisplayPort (2x), HDMI (1x) |
HDMI version | 2.1b |
DisplayPort version | 2.1a |
Power consumption | 150 W |
Min. recommended system performance | 550 W |
Power connectors | 8-pin PCI-E |
Country of origin | China |
CO₂ emissions | 518.31 kg |
Climate contribution | CHF 12.33 |
Length | 29.80 cm |
Width | 13.10 cm |
Height | 5.10 cm |
Length | 40.20 cm |
Width | 22.50 cm |
Height | 11.10 cm |
Weight | 1.38 kg |
How often does a product of this brand in the «Graphics card» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Graphics card» category returned?

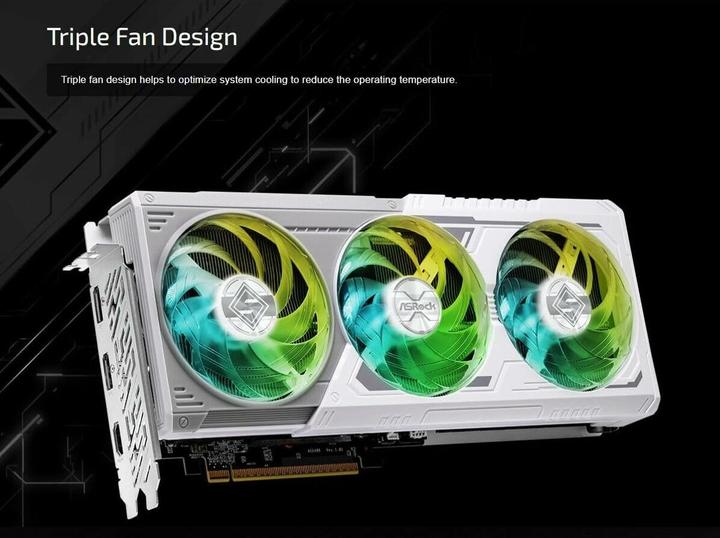

Source: Digitec GalaxusIn chic white and with eye-catching, colourful lighting, the Steel Legend is the unicorn in the test field. But what can the cooling system do? The cooler is massive, equipped with three 88 mm fans and has a large flow-through area; half of the cooler protrudes over the PCB. There is no switch for a second BIOS, but the lighting can be switched on and off and even synchronised with the PC...
