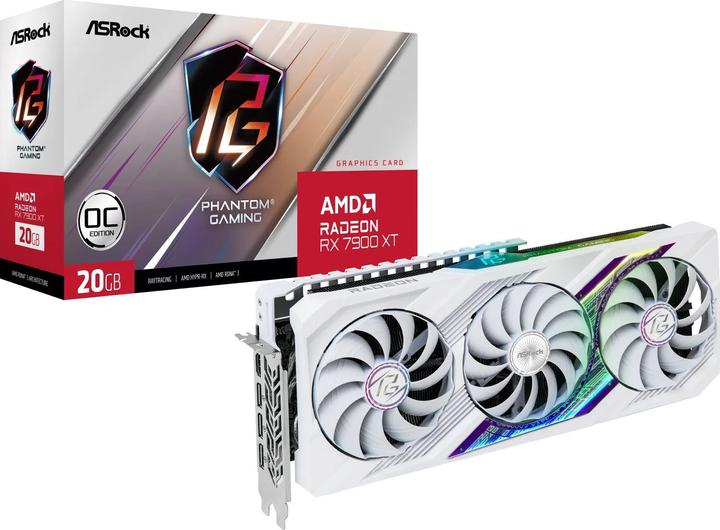

AsRock Radeon RX 7900 XT Phantom

20 GB
8Ratings
BrandMore from AsRock
Delivered between Sat, 12.7. and Thu, 17.7.

Product details

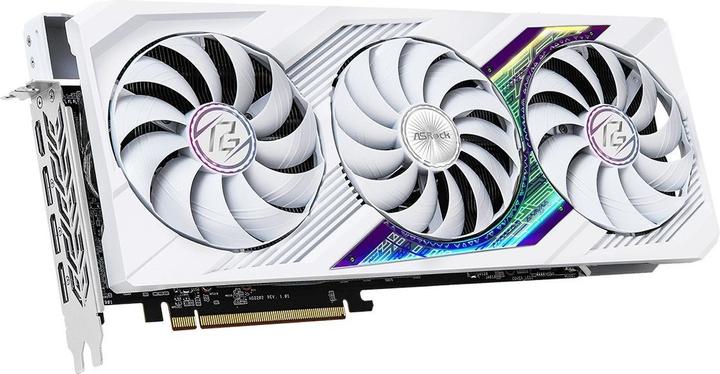

The centre fan rotates backwards to reduce turbulence and improve air distribution through the heatsink. For the best balance between thermal efficiency and quietness through all details. ASRock's new striped-ring fan provides more side intake and better airflow through the cooling system. Direct airflow more smoothly and quickly to improve cooling efficiency through the V-cut fins and V-shaped vents. The heatpipes are consolidated to maximise contact with each other and with the GPU baseplate for optimised heat dissipation. The premium copper heatsink design maximises the direct contact area with the GPU to effectively improve heat transfer.

Key specifications

Length
33 cm
Number of shaders
5376 x
Graphics card model
Radeon RX 7900 XT
Video memory clock
20 GHz
Max. connected monitors
4 x
Max. Video resolution
7680 x 4320 pixels
Power consumption
315 W
Item number
40293923

General information

Manufacturer
AsRock
Category
Graphics card
Manufacturer no.
RX7900XT PGW 20GO
Release date
29.11.2023
External links
Manufacturer's site (de)

Graphics card properties

Max. connected monitors
4 x
PCI Express version
PCIe 4.0
Max. Video resolution
7680 x 4320 pixels
Expansion card form factor
3 slots
LED colour
Multicoloured

Graphics processing unit

Graphics chip (GPU)
AMD Radeon
Graphics card model
Radeon RX 7900 XT
Clock frequency
2075 MHz
Boost frequency
2450 MHz
Number of shaders
5376 x

Video memory

Video memory type
GDDR6
Storage capacity
20 GB
Video memory clock
20 GHz
Memory Interface
320 bits
Memory Bandwidth
2.50 GB/s

Cooling properties

Graphics card cooling system
Active cooler
Number of fans
3 x

Graphics card technologies

DirectX version
12
OpenGL version
4.60

Connections

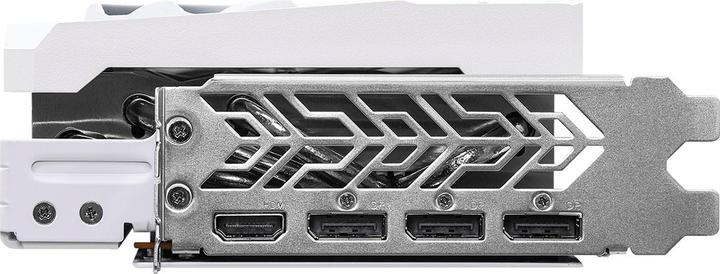

Video connections
DisplayPort (3x), HDMI (1x)
HDMI version
2.1
DisplayPort version
2.1

Power supply

Power consumption
315 W
Min. recommended system performance
750 W
Power connectors
2x 8-pin PCI-E

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
33 cm
Width
5.76 cm
Height
14 cm

Package dimensions

Length
40.90 cm
Width
22.60 cm
Height
10.40 cm
Weight
2.01 kg

30-day right of return
24 Months Warranty (Bring-in)
