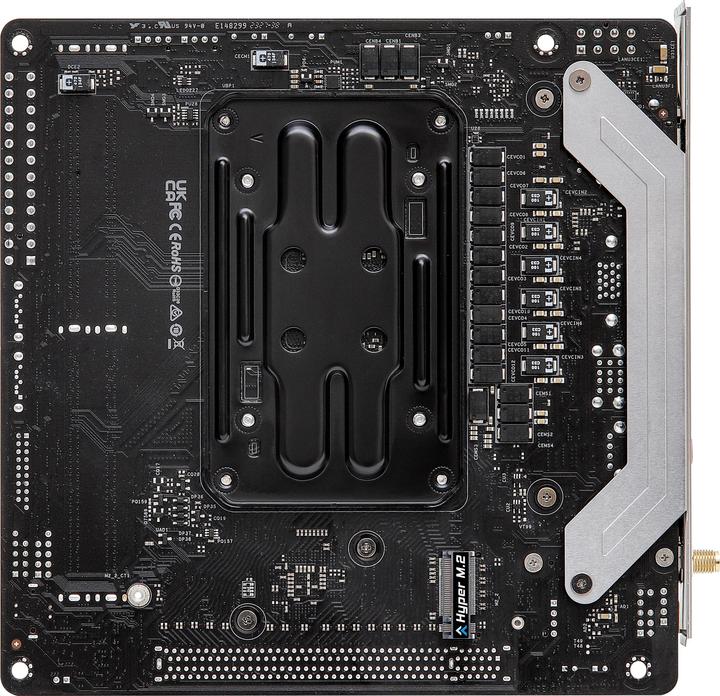

AsRock B650I Lightning WiFi AM5 mITX HDMI DDR5 retail

AM5, AMD B650, Mini-ITX
27Ratings
BrandMore from AsRock
Test reportsGood based on 1 test
Delivered tomorrow
More than 10 pieces in stock
free shipping

Product details

The ASRock B650I Lightning WiFi is a powerful Mini-ITX motherboard specifically designed for AMD Ryzen 7000 series processors. Equipped with the B650 chipset and the new AM5 socket, it offers a variety of features that are of interest to both gamers and tech enthusiasts. With support for up to 96 GB of DDR5 RAM and a maximum clock speed of 7,200 MHz (OC), it enables high performance and flexibility in memory customization. The motherboard features multiple modern connectivity options, including PCIe 5.0 and PCIe 4.0 M.2 slots, ensuring fast data transfer and expandability. Additionally, it offers integrated WiFi 6E and Bluetooth 5.2 for reliable wireless connectivity. The thoughtful design and advanced OC features make the B650I Lightning WiFi an excellent choice for anyone looking to get the most out of their hardware.

  • Supports up to 96 GB of DDR5 RAM with a maximum clock speed of 7,200 MHz (OC)
  • Provides a PCIe 5.0 M.2 slot for fast SSDs
  • Integrated WiFi 6E and Bluetooth 5.2 for enhanced connectivity
  • Allows the use of up to 3 PWM fans for optimal cooling
  • Equipped with 10 virtual and 5 real phase VRMs for stable power supply.

Key specifications

Mainboard features
Front panel audio connector, RGB header
Wireless transmission
Bluetooth, Wi-Fi
Processor family
AMD 7000 Series
Number of memory modules (RAM)
2x
Memory type
DDR5 RAM
Internal connection options
M.2 (2x), S-ATA III (2x)

General information

Item number
39139878
Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBMP0-A0UAYZ
Release date
4.10.2023
Sales rank in Category Motherboards
53 of 1016

Motherboard properties

Form factor
Mini-ITX
Socket
AM5
Chipset
AMD B650
Mainboard features
Front panel audio connector, RGB header
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
AMD 7000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2x
Max. memory (RAM)
128 GB
Transfer rate
7200 MT/s
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Dragon RTL8125BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
M.2 (2x), S-ATA III (2x)
Expansion slot
PCI Express x16 (1x)
PCI express version (max.)
4
Number of fan connector
3

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (3x), USB-C 3.2 Gen 2 (1x)

Power supply

Power connectors
20+8 pin ATX, 24-pin ATX

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
1560.67 kg
Climate contribution
CHF 6.05

Scope of delivery

Scope of delivery
2 x Serial ATA cable, 1 M.2 screw, ASRock WiFi 2.4, 5, 6 GHz antenna

Product dimensions

Length
170 mm
Width
170 mm

Package dimensions

Length
23 cm
Width
20 cm
Height
10 cm
Weight
1.03 kg

30-day right of return
24 Months Warranty (Bring-in)
