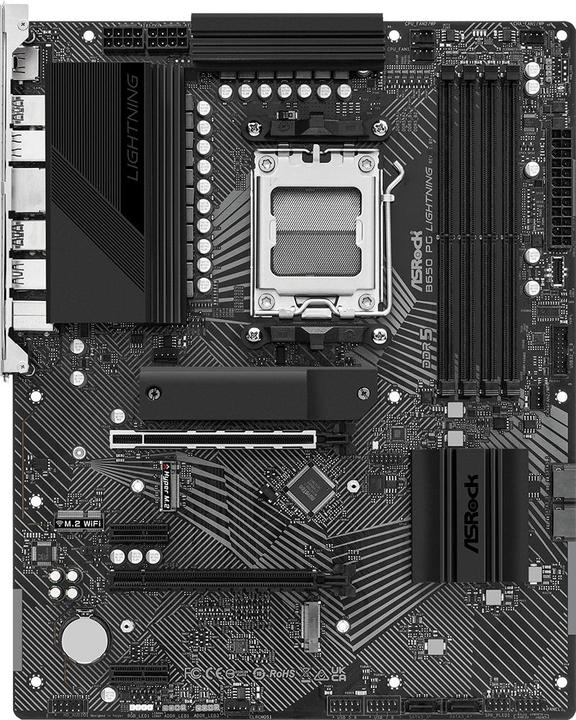

AsRock B650 PG Lightning

AM5, AMD B650, ATX
6Ratings
BrandMore from AsRock
Delivered between Thu, 5.6. and Wed, 11.6.
5 items in stock at third-party supplier
Supplied by

Product details

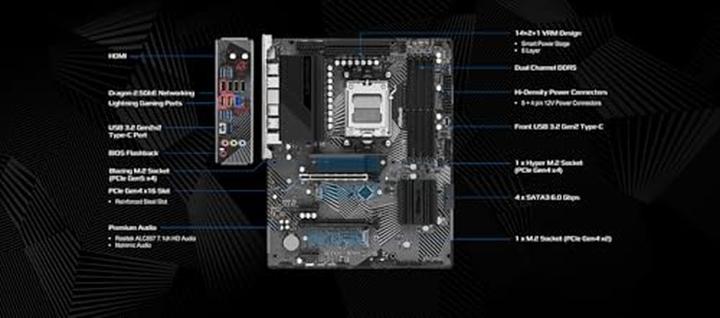

The ASRock B650 PG Lightning is based on the AMD B650 chipset and supports AMD processors for the AM5 socket. It features four DDR5 slots for up to 128 GB of RAM. Additional features of the ASRock B650 PG Lightning include two PCIe 4.0 x16 slots and two PCIe 4.0 x1 slots. It also comes with 8-channel audio, a 2.5 Gigabit LAN interface, four SATA3 ports, three M.2 slots, and a variety of USB interfaces.

Key specifications

Processor family
AMD 7000 Series
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Front panel audio connector
Item number
22641991

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBK20-A0UAYZ
Release date
28.10.2022
Sales rank in Category Motherboards
125 of 964
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD B650
Mainboard features
Front panel audio connector
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
AMD 7000 Series

Memory

Memory form factor
DIMM
Number of pins
184 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Max. RAM OC
6400 MHz
Supported memory speed
6400 MHz, 6600 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Broadcom
Ethernet controller
Dragon RTL8125BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 3) (1x), PCI Express x16 (Gen 4) (1x)

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (2x)

Power supply

Power connectors
20+8 pin ATX, 8x 8-pin PCI-E

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
305 mm
Height
244 mm
Weight
150 g

Package dimensions

Length
37 cm
Width
30 cm
Height
8 cm
Weight
1.69 kg
