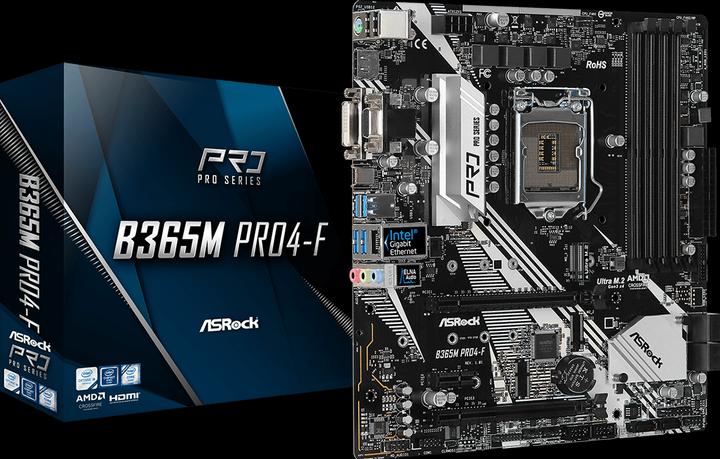

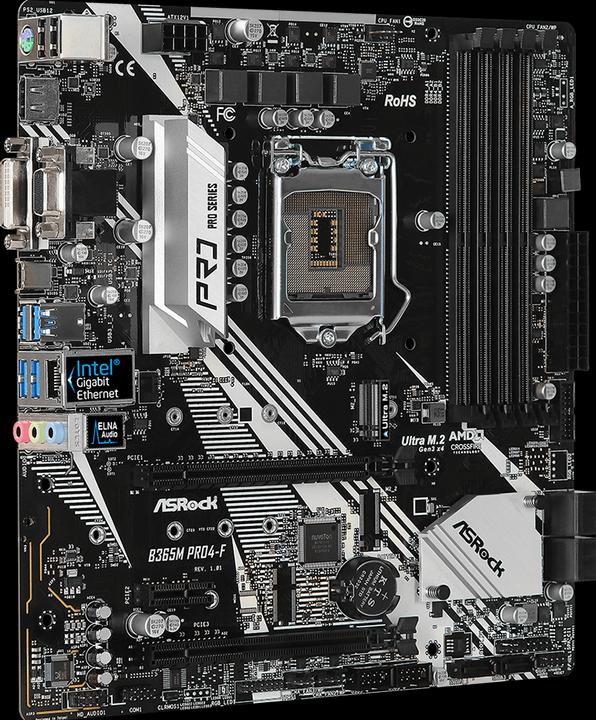

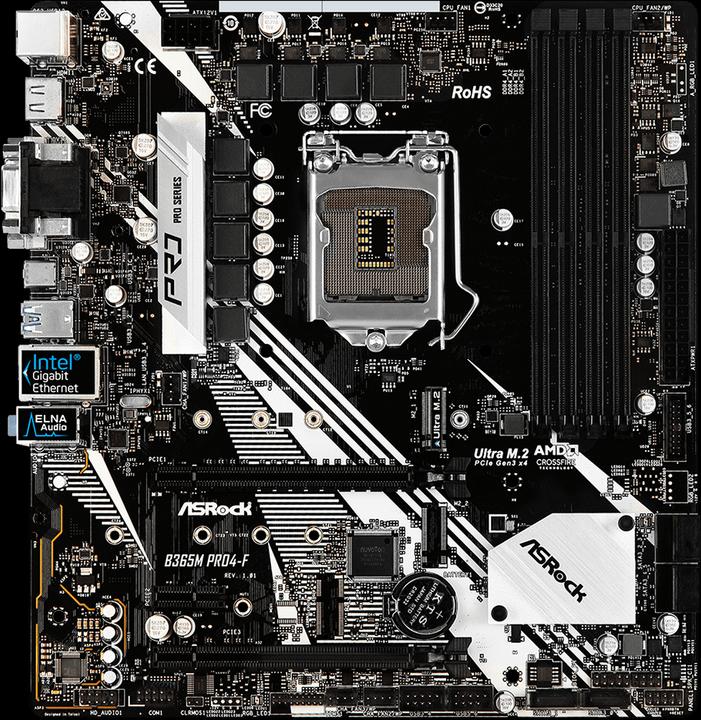

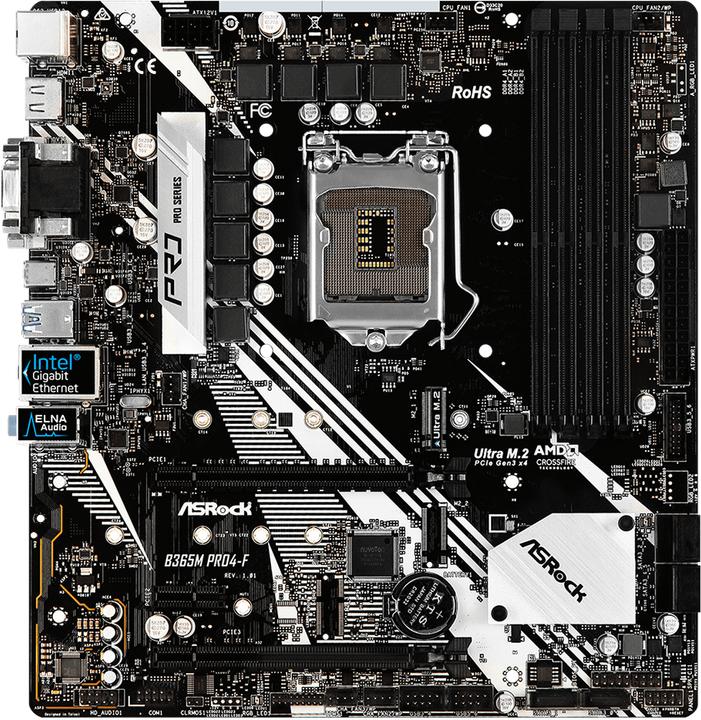

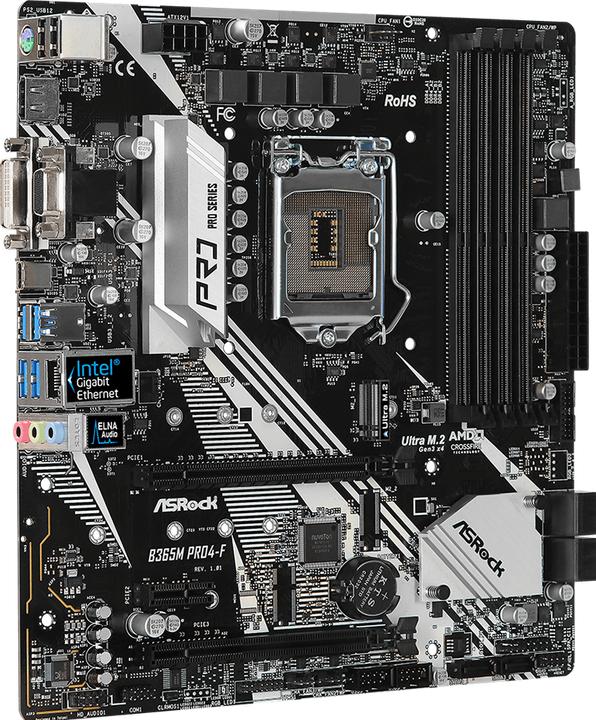

AsRock B365M Pro4

LGA 1151, Intel B365, mATX
4Ratings
BrandMore from AsRock
Currently out of stock

Product details

This motherboard features integrated RGB headers and an addressable RGB header, allowing it to connect to compatible LED devices such as strips, CPU fans, coolers, cases, and more. Users can also synchronize RGB LED devices through Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Key specifications

Processor family
Core i3 8th Gen, Core i3 9th Gen, Core i5 8th Gen, Core i5 9th Gen, Core i7 8th Gen, Core i7 9th Gen, Core i9 8th Gen, Core i9 9th Gen
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (6x)
Mainboard features
COM Port Header
Item number
13458857

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBB30-A0UAYZ
Release date
23.7.2020
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1151
Chipset
Intel B365
Mainboard features
COM Port Header
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Core i3 8th Gen, Core i3 9th Gen, Core i5 8th Gen, Core i5 9th Gen, Core i7 8th Gen, Core i7 9th Gen, Core i9 8th Gen, Core i9 9th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
64 GB
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

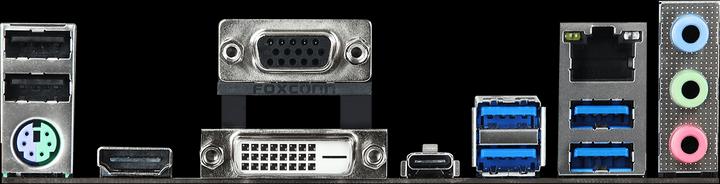

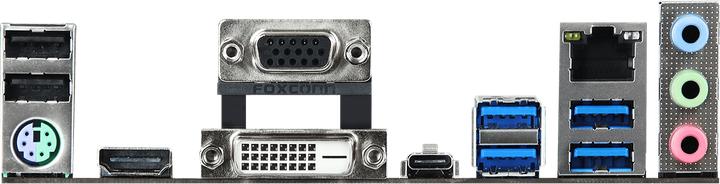

Video connections
HDMI (1x)
Multi-GPU technology
AMD Quad-GPU CrossFireX

Network

Network connections
RJ45 Gigabit Ethernet (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel I219V

Audio

Chip
Realtek ALC892
Audio channel
7.1 Channel
Audio Connections
HDMI (1x)

Internal interfaces

Internal connection options
S-ATA III (6x)
Expansion slot
PCI Express x1 (Gen 3) (1x), PCI Express x16 (3x)

Further connections

Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (1x), USB-B 3.2 Gen 1 (1x)

Power supply

Power connectors
8-pin PCI-E

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
I/O backplane, 1 M.2 screw

Product dimensions

Length
229 mm
Width
244 mm
Height
229 mm

Package dimensions

Length
27 cm
Width
6 cm
Height
27 cm
Weight
1.09 kg
