Alutruss BILOCK E-GL22 290 2-point crosshead

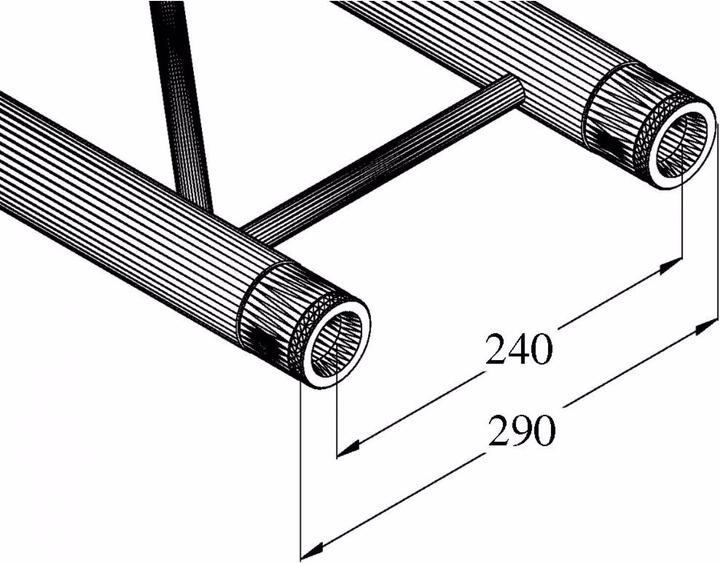

BILOCK E-GL22 2-point truss systemThe BILOCK E-GL22 system is a 2-point truss system made of aluminum, which is connected via two conical connectors, pins and cotter pins.The advantage of conical connectors is that they are force-locked and form-fit with the belt tube and thus guarantee maximum load capacity. The Quick-Lock system allows for fast, efficient and visually appealing assembly with frequent assembly and disassembly.The two belt tubes are made of 50 mm aluminum tubing with 2 mm wall thickness, giving this system an excellent weight-to-load ratio. The struts are 20 mm in diameter with 2 mm wall thickness, leaving plenty of clearance for hanging couplers, hooks and clamps.With outside dimensions of 290 mm, this is a sturdy truss system for heavier loads and longer durability. This truss system is primarily designed for intensive use in stage construction, exhibition stand construction, event technology, but also for permanent installations in discotheque and theater facilities.Its polished surface makes this universal system a real eye-catcher. Due to its extensive range of standard system lengths, corners, circles and accessories, this system is highly versatile and offers endless design possibilities.The documentation of this truss system closely follows the SQ P1 - Trusses standard published by the VPLT. The load table as a basis for calculation can be downloaded from the Internet before purchase!Please note: This truss system must never be combined with other systems!

2-point truss system

• Easy mounting

• Low weight

• For trade fair and store construction, discotheque and theater installations

• Incl. 1 x connector set

• Belt tube: 50 mm

• Made in Europe.
