Alfa Network AWPCIE-AX200U - High-Efficiency Intel AX200 mini PCIe WiFi6 and BT5 Card

USB 2.0, PCIe
2Ratings
BrandMore from Alfa Network
Currently out of stock
Free shipping starting at 50.–

Product details

AWPCIE-AX200U - High-Efficiency Intel AX200 Mini-PCIe WiFi6 and BT5 Card

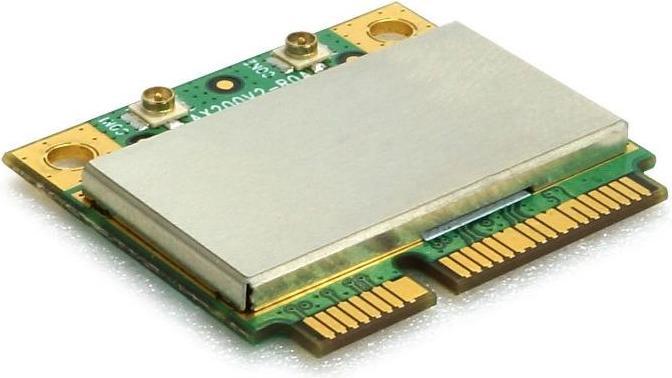

The AWPCIE-AX200U is a half-size Mini-PCIe WiFi6 card based on the high-efficiency Intel AX200.

The AWPCIE-AX200U supports the latest WiFi6 (IEEE 802.11ax) with special features such as OFDMA, 1024QAM, and MU-MIMO. The module also includes a Bluetooth 5.0 radio, is backward compatible (IEEE 802.11a/b/g/n/ac), and operates in the 2.4 and 5 GHz bands.

Thanks to the Mini-PCIe form factor (half size) and IPEX/U.FL antenna connectors, owners of older products can utilize the latest wireless technologies with a data rate of up to 2.4 Gbit/s.

The wide support in modern operating systems (Microsoft Windows 10, Linux, Chrome OS) facilitates seamless module integration.

  • Intel Product Code: AX200D2WL (Intel AX200 Cyclone Peak 2 Series)
  • IEEE 802.11 Standards: a/b/g/n/ac/ax
  • Features: OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT
  • Frequency: 2.4 GHz, 5 GHz
  • Data Rate: 2.4 Gbit/s
  • Bluetooth: 5.0
  • Antenna Connectors: 2x IPEX/U.FL
  • Interface: 1x PCIe (WiFi), USB 2.0 (Bluetooth)
  • Operating Systems: Microsoft Windows 10, Linux, Chrome OS
  • Form Factor: Mini-PCIe half size
  • Dimensions: 30 x 26.8 x 2.75 mm.

Key specifications

Network adapter type
WLAN adapter
Item number
22534276

General information

Manufacturer
Alfa Network
Category
Network cards
Manufacturer no.
AWPCIE-AX200U
Release date
30.9.2022

Network card properties

Hardware interface
PCIe, USB 2.0
Network adapter type
WLAN adapter

Network connections

Wireless transmission
Bluetooth, Wi-Fi

Wi-Fi standard

Wi-Fi standard
Wi-Fi 6 / 802.11ax
Wi-Fi frequency band
Dual band

Mobile internet properties

Max. data transfer rate
2.40 Gbit/s

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
30 mm
Width
26.80 mm

Package dimensions

Length
5.60 cm
Width
4.30 cm
Height
0.90 cm
Weight
9 g
