Alfa Network APA-L5818

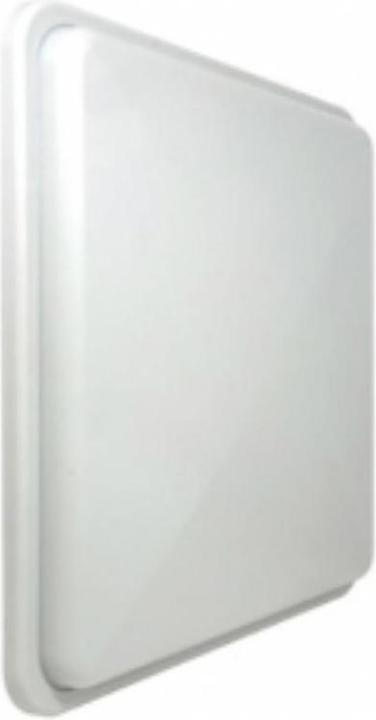

ALFA Network APA-L5818 - 5.4 to 5.9 GHz Panel Antenna 18 dBi Outdoor

The APA-L5818 is designed for the 5.8 GHz ISM band, supporting 5.1 to 5.9 GHz, and provides superb performance in IEEE 802.11a Wi-Fi applications. The APA-L5818 includes a mounting bracket and hardware for up to 2" OD masts. Made with fiberglass.

Key features:

• Superior performance
• Lightweight
• All weather operation
• Installed for vertical
• DC short lightning protection
• Includes tilt and swivel mast mount
• RoHS compliant
• Can be installed for either vertical or horizontal polarization

Application:

• 5.1 to 5.9 GHz ISM band
• 5.3 GHz band applications
• 5.4 GHz band applications
• 5.8 GHz UNII applications
• IEEE 802.11a wireless LAN
• Unlicensed European 5.4 GHz band applications
• 5.8 GHz wireless video systems
• WiMAX technology

Model: APA-L5818
Frequency: 5.1-5.9 GHz
VSWR: 1.5
Gain: 18 dBi
Polarization: Vertical or horizontal
Power handling: 50 Watts
Impedance: 50 ohms
Beam width: H: 34° / V: 29°
Connector: N female
Operation temp: -40°C to +80°C
Dimension: 120 x 120 mm
Mounting: 32 to 45 mm (1.2 to 1.75 inch)
Weight: 400 g.
