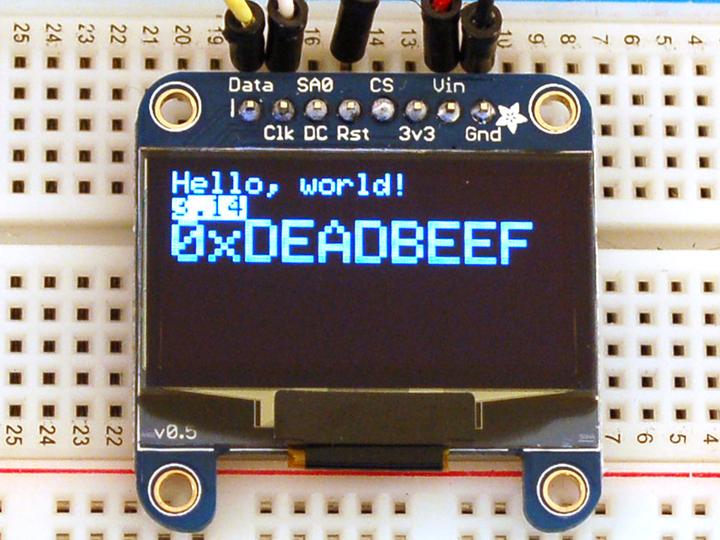

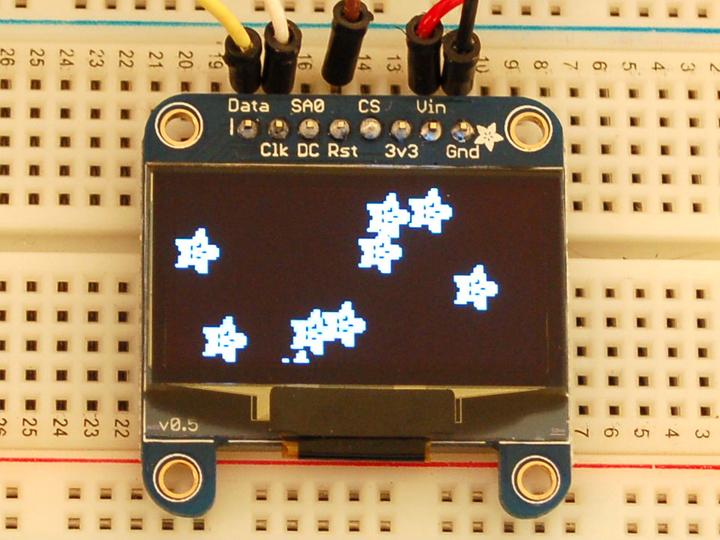

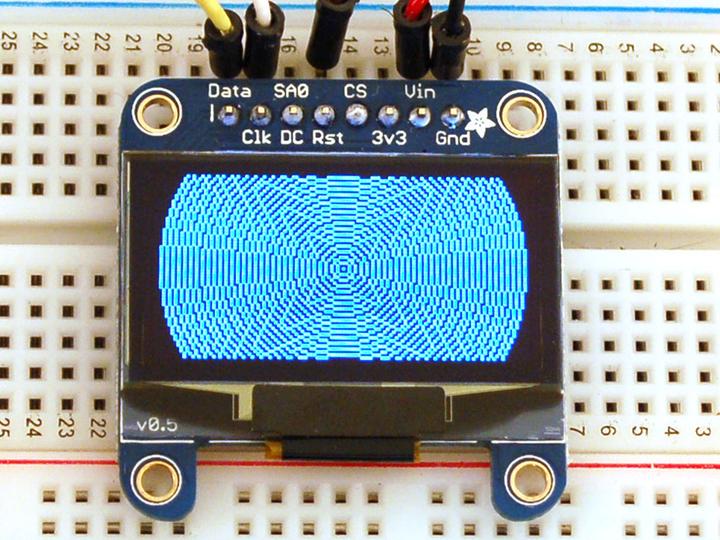

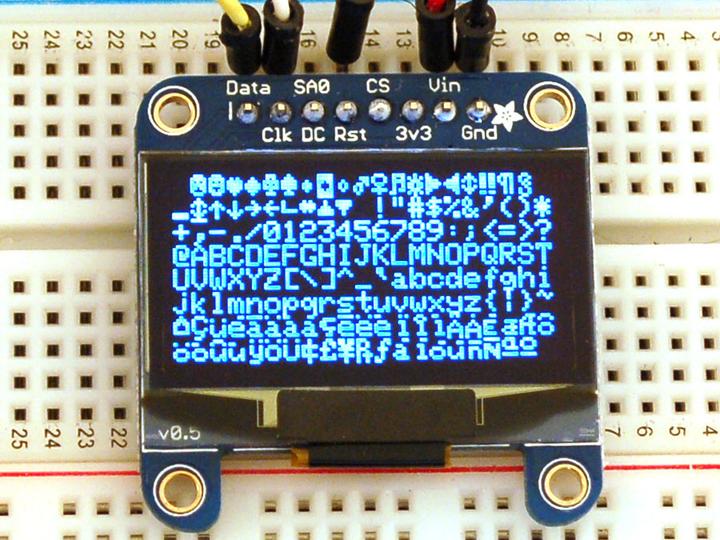

Adafruit Monochrome 1.3" 128x64 OLED graphic display

Highly contrasting 1.3" OLED display with a resolution of 128x64 pixels. Thanks to OLED technology, no backlight is needed, which reduces power consumption while improving contrast - the average power consumption is only about 40 mA.

The SSD1306 driver chip communicates via I2C or SPI. The OLED is powered with 3.3 V but is fully compatible with both 3.3 V and 5 V thanks to the level shifter present on the PCB.

Adafruit provides a complete Arduino library with graphics and text functions. Since the display needs to be buffered, a microprocessor with at least 1 kB of RAM is required.

Size / Dimensions:

* PCB: 35 mm x 35 mm
* Screen: 35 mm x 24 mm
* Thickness: 5 mm
* Weight: 8.5 g

OLED Display Details:

* Screen diagonal: 1.30"
* Resolution: 128 x 64 pixels
* Colors: Monochrome (white)
* Module construction: COG
* Module size (mm): 34.50 x 35.00
* Panel size (mm): 34.50 x 23.00 x 1.45
* Active area (mm): 29.420 x 14.70
* Pixel pitch (mm): 0.23 x 0.23
* Pixel size (mm): 0.21 x 0.21
* Brightness (cd/m²): 100 (typical) @ 12 V.
