Adafruit 938 - Display - - OLED - 3.3 cm (1.3 inch) - 128 x 64 pixels - Monochrome

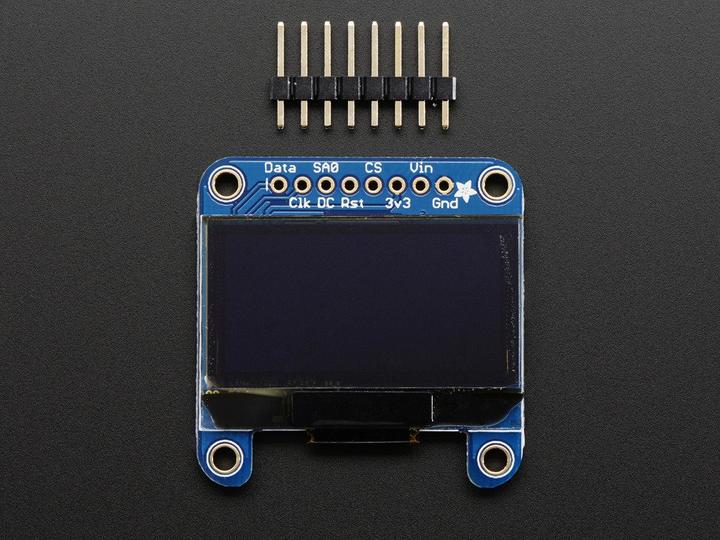

These displays are small, only about 1.3 inches diagonal, but very readable due to the high contrast of an OLED display. This display is made of 128x64 individual white OLED pixels, each one turned on or off by the controller chip. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; we really like this miniature display for its crispness!

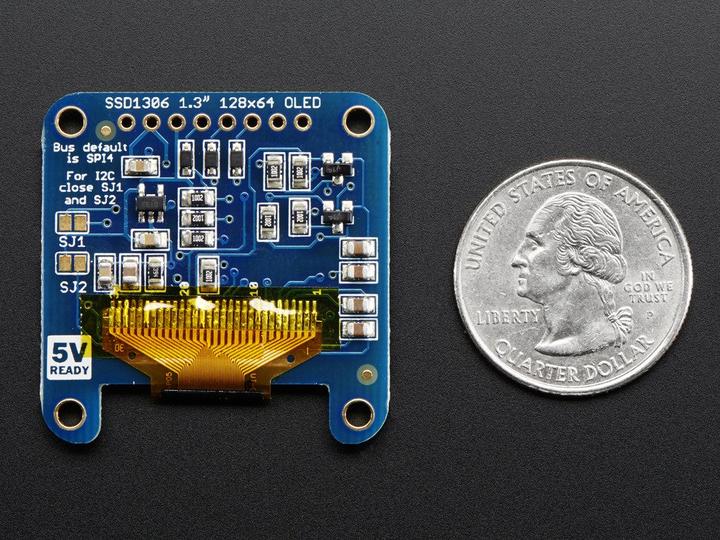

The driver chip, SSD1306, can communicate in two ways: I2C or SPI. The OLED itself requires a 3.3V power supply and 3.3V logic levels for communication, but we include a 3.3V regulator and all pins are fully level shifted so you can use it with 5V devices!

The power requirements depend a little on how much of the display is lit, but on average the display uses about 40mA from the 3.3V supply. Built into the OLED driver is a simple switch-cap charge pump that turns 3.3V to 5V into a high voltage drive for the OLEDs.

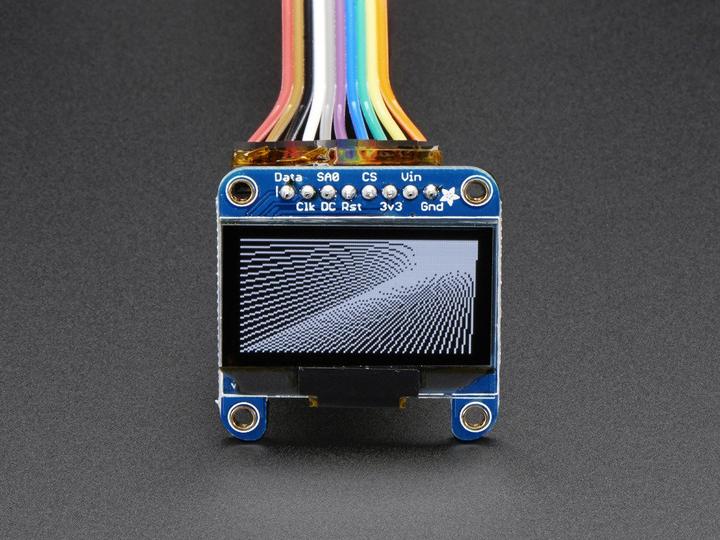

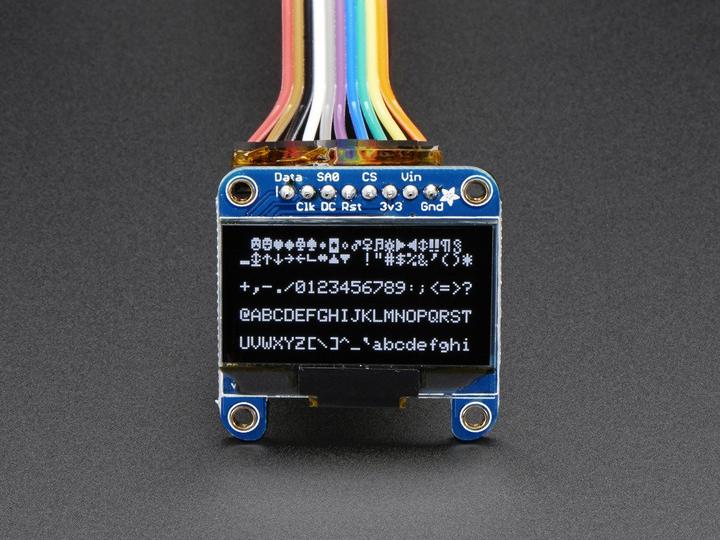

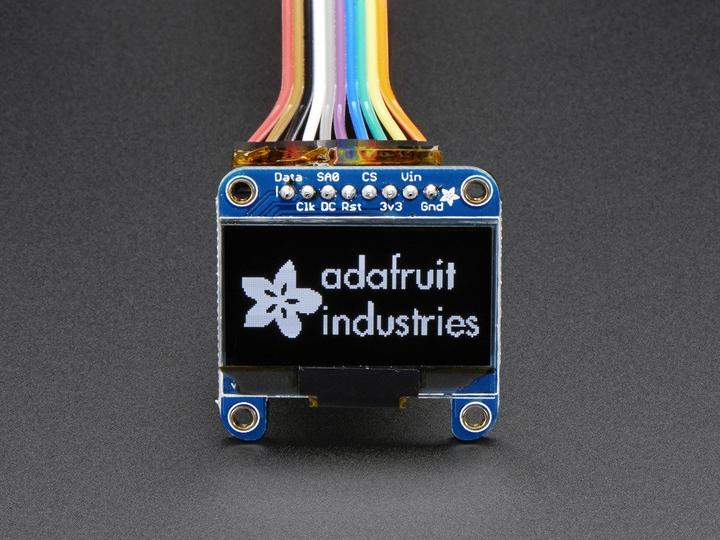

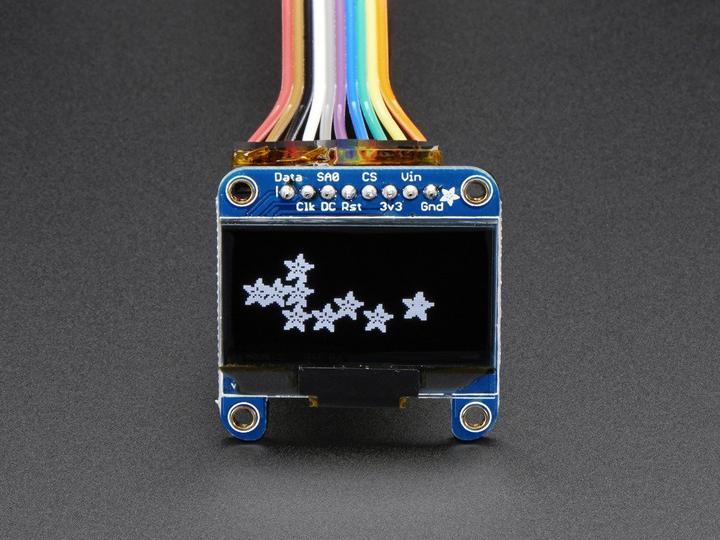

We have a detailed tutorial and example code in the form of an Arduino library for text and graphics. You'll need a microcontroller with more than 1K of RAM since the display must be buffered. The library can print text, bitmaps, pixels, rectangles, circles, and lines. It uses 1K of RAM since it needs to buffer the entire display, but it's very fast! The code is simple to adapt to any other microcontroller.
