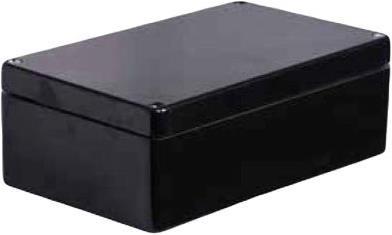

RS PRO IP66 ATEX JUNCTION BOX 400x405x120 mm

Length: 400 mm
Width: 405 mm
Height: 120 mm
Dimensions L x W x H: 400 x 405 x 120 mm
Material: GFP
Protection class: IP66
Color: black
Approval for hazardous areas: ATEX, IECEx

ISO 9001-2008, IEC 80079-34-2011, IEC/EN 60079-0, IEC/EN 60079 and IEC/EN 60079-31. RS Pro explosion-proof junction boxes. An explosion-proof (Ex) junction box for the installation of electrical and mechanical components. The housing is made of high-quality glass fiber reinforced polyester with added graphite. The lid and base are secured together with non-loosening stainless steel screws. A tongue-and-groove system with an inserted sealing cord between the lid and base ensures protection according to IP66. The housing is mounted through the screw channels outside the sealing area.

Features and benefits:

• Housing made of glass fiber reinforced polyester (GRP), with added graphite
• Black RAL 9011
• Protection class IP66 EN 60529
• Surface resistance: 10^9 Ω
• Impact energy: 7 Joules
• Self-extinguishing UL 94 V0
• Temperature range: -50 °C to +100 °C
• ATEX and IECEx: II 2 G Ex e IIC Gb II 2 D Ex tb IIIC Db IP66 DEMKO 15 ATEX 1475U IECEx UL 15.0045U.
