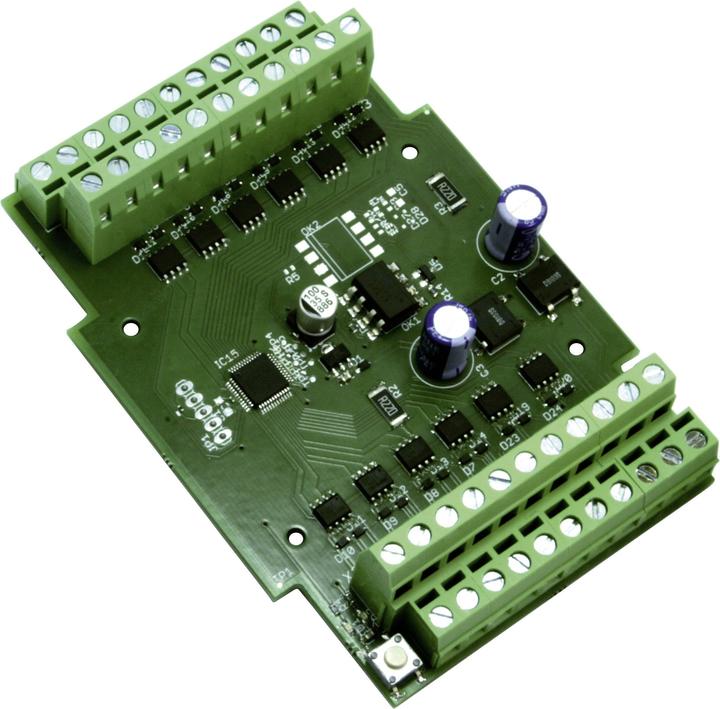

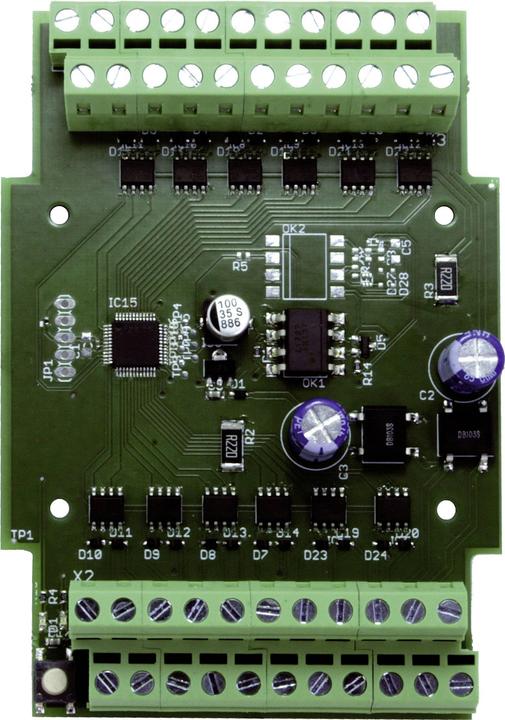

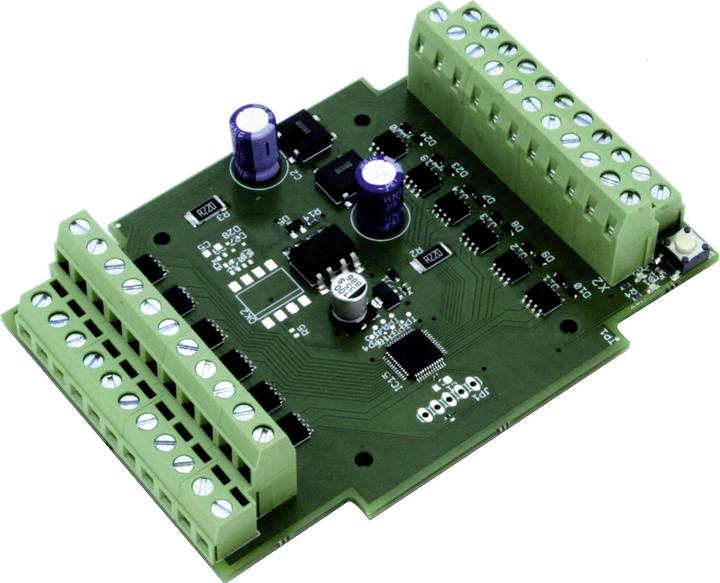

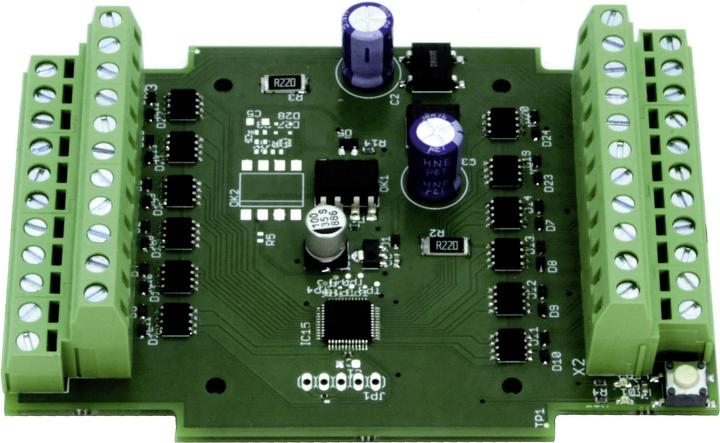

Tams Elektronik 43-02126-01 WD-12 Weichendecoder

The TAMS Elektronik 43-02126-01 WD-12 turnout decoder is a highly advanced solution for controlling turnouts and signals in model railway systems. This decoder allows for direct control of double-coil drives, uncouplers, as well as light signals and turnout lanterns equipped with LEDs. With a maximum switching current capacity of 1 A per output, the WD-12 provides reliable performance for various applications. The flexible addressing via DCC or Motorola enables easy integration into existing systems, while programming can be done through a button or by using CV variables in DCC format. The decoder supports up to 24 switching outputs, which can be assigned to three arbitrary blocks of 4 addresses, ensuring high adaptability and user-friendliness. The supply voltage can be provided from the booster circuit or through separate transformers and power supplies, offering additional flexibility in installation.

• Direct control of turnouts, uncouplers, and light signals
• Flexible addressing via DCC (1-2040) and Motorola (1-1020)
• Supports up to 24 switching outputs (2 x 12)
• Maximum current per output: 1 A, total: 2 A
• Adjustable settings for on-time control and CV variables.
