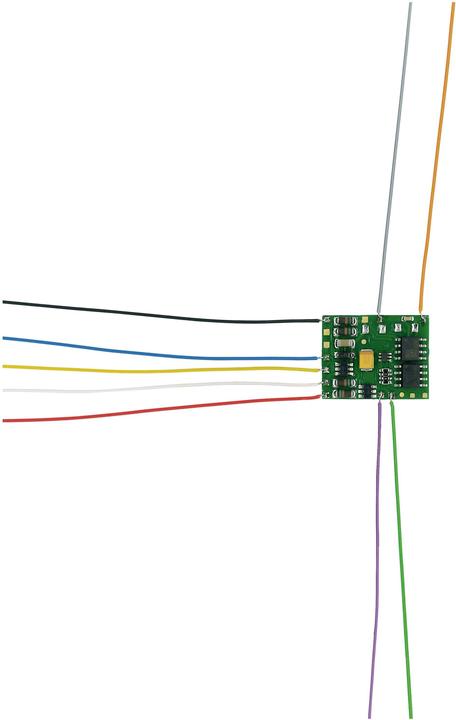

Tams Electronics 41-04481-01-C LD-G-42.2 Locomotive decoder with cable

Digital operation in Motorola II format: maximum 255 addresses, 14 or 27 speed steps, functions F0 to F8 (F5 to F8 via second address). Programming: register. Digital operation in DCC format: 127 basic addresses or 10,239 extended addresses, 14, 28, or 128 speed steps, functions F0 to F28. Programming: configuration variables (Direct Programming on the programming track, DCC-compliant) or POM (Programming on Main = main track programming). Analog operation: analog systems with DC or AC power transformers. Automatic analog detection, switchable. Adaptation to different motor types and locomotive types: adjustment of load control parameters (KP, KI, KD), gain factor. Definition of a linear (possibly kinked) speed characteristic curve by setting the starting, mid, and maximum speed. In 27/28 speed step mode: individual assignment of a motor voltage to each speed step. Start kick, shunting mode, reduction of the speed of all speed steps by approximately 50%. Switching to shunting mode with a function key. Start and braking delay: adjustable separately. On and off with a function key. Automated processes, automatic braking when an asymmetric track voltage is present (ABC method), pendulum automation (via ABC method), braking with direct current (Märklin braking section), speed-dependent on and off. Application examples: turning on and off the high beam or the cab lighting. Shunting function by assigning the shunting mode and shunting light to the same function key. Automatic uncoupling, constant braking distance. On and off of outputs via the switching input. Automatic registration via DCC-A. Function outputs: assignment of functions to the outputs with Function Mapping according to RCN-227. Each function (F0 to F28, separately for forward and reverse operation) can have one or more outputs assigned to it.
