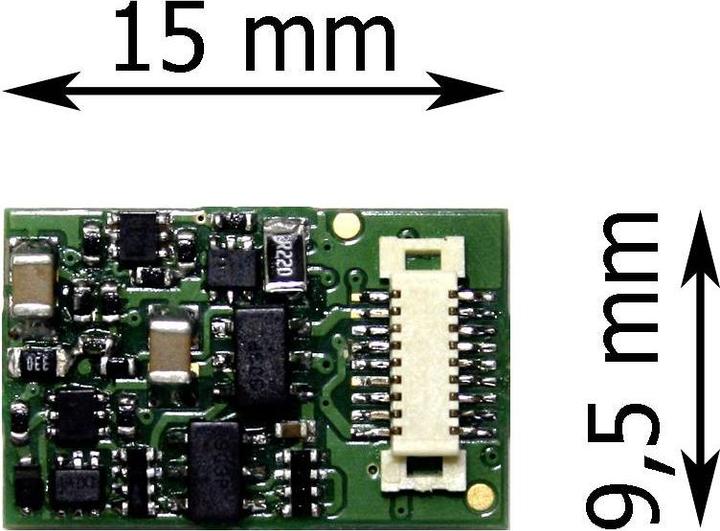

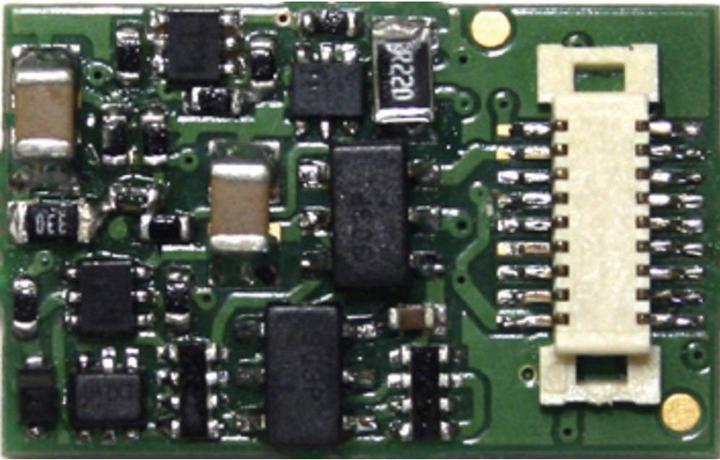

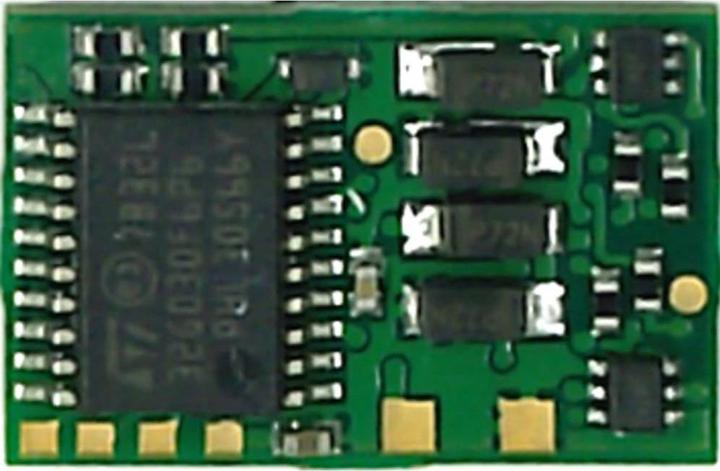

Tams Electronics 41-04414-01-C LD-G-41 Next18 locomotive decoder module, without cable

Digital operation in Motorola II format: maximum 255 addresses, 14 or 27 speed steps, functions F0 to F8 (F5 to F8 via second address). Programming: register.

Digital operation in DCC format: 127 basic addresses or 10,239 extended addresses, 14, 28, or 128 speed steps, functions F0 to F28. Programming: configuration variables (Direct Programming on the programming track, DCC-compliant) or POM (Programming on Main = main track programming).

Analog operation: analog systems with DC power supply. Automatic analog recognition, switchable. Adaptation to different motor types and locomotive types: adjustment of load regulation parameters (KP, KI, KD). Gain factor. Definition of a linear (possibly kinked) speed characteristic curve by setting the starting, mid, and maximum speeds.

In 27-/28-speed step mode: individual assignment of motor voltage to each speed step. Start kick. Shunting mode: reduction of speed for all speed steps by approximately 50%. Switching to shunting mode with a function key. Start and brake deceleration: adjustable separately. On and off with a function key.

Automatic processes: automatic braking when an asymmetric track voltage is present (ABC method), pendulum automation (via ABC method), braking with DC voltage (Märklin brake section), speed-dependent on and off. Application examples: turning on and off the high beam or the cab lighting. Shunting function by assigning the shunting mode and shunting light to the same function key. Constant braking distance.

Automatic registration via DCC-A. Function outputs: assignment of functions to outputs with Function Mapping according to RCN-227. Each function (F0 to F28, separately for forward and reverse) can be assigned one or more outputs. Additionally, there is the possibility to assign a different function to the functions as an OFF switch.
