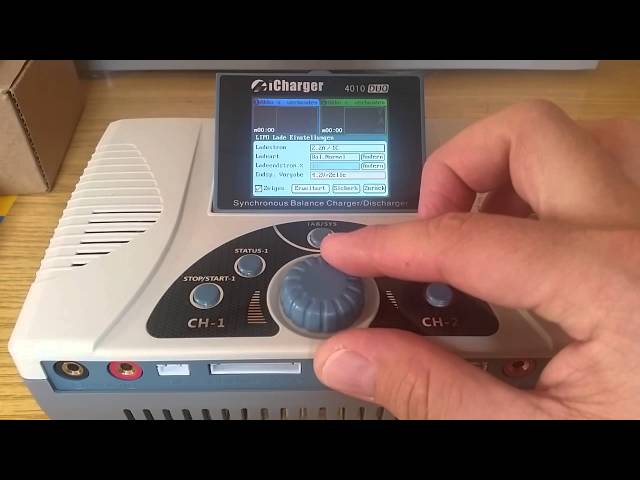

Swaytronic iCharger 4010 Duo Multifunction Balance Charger

4Ratings
Currently out of stock

Product details

Compact 2x 1400W charger with integrated balancer, USB port, and card slot for Micro SD cards for logs.

Microprocessor-controlled high-performance fast charger/unloader and balancer.

Supports battery types: LiIo/LiPo/LiFe, NiMH/NiCd, Pb.

Cell count: 1-10 LiIo/LiPo/LiFe, 1-25 NiMH/NiCd, 1-18 Pb (2-36 V).

Input voltage: DC 9-50 V.

Input current: 23.5V.

Charging power max. (synchronous): 2000W from >23.5V.

Charging power at input voltage > 23V: Max. 1000W.

Charging power at input voltage 12V: Max. 500W.

Charging current: 2 x 0.05 - 40A (asynchronous).

Charging current: 0.05 - 70A (synchronous).

Max. discharge power: 200W synchronous, 130W asynchronous.

Discharge current: 0.05 - 70A.

Regenerative discharge: up to 1400W asynchronous, 2000W synchronous.

Discharge with external load max.: 1600W 40V/40A or 3200W in synchronous mode.

Balancer current: 1.2A per output and cell or 2.4A in synchronous mode.

Balance accuracy: 1mV.

Automatic fan control - 2 fans.

USB port.

Micro SD slot to store logs and data.

Dimensions: 210 x 140 x 80 mm.

Weight: 1470g.

Asynchronous means one battery pack per output.

Synchronous means 2 identical battery packs connected in parallel - both outputs are combined.

Regenerative discharging = current feedback into a lead battery.

Further functions:

Internal resistance measurement of the cells.

Firmware update via USB connection possible.

New: Reverse polarity protection, balancer outputs are protected against reverse polarity.

Key specifications

Battery type
LiPo
Charger Equipment
Display
discharge current
70 A
Charging channels/shafts
2
Item number
6301027

General information

Manufacturer
Swaytronic
Category
RC chargers
Manufacturer no.
7640159364368-2
Release date
3.5.2017

Colour

Colour
Blue, Grey, White

Material

Material group
Plastic

Charger properties

Battery type
LiPo
Charger Equipment
Display
discharge current
70 A
Charging channels/shafts
2

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x input cable, 1x Mini USB cable, 2x balancer board, 2x balancer cables, 2x charging cable

Product dimensions

Length
21 cm
Width
14 cm
Height
8 cm
Weight
1470 g
