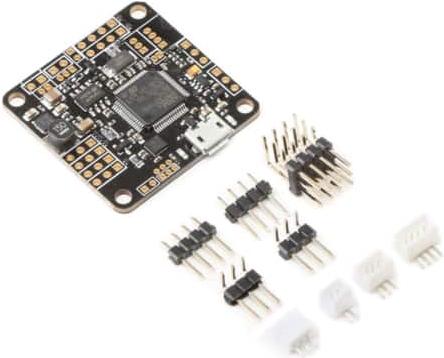

Spektrum F400 Quad Racing Flight Controller

For maximum race performance, we have combined the state-of-the-art F4 processor with the proprietary Raceflight One software. Equipped with an integrated 5V voltage regulator, powering the controller is very straightforward. The necessary connections are also uncomplicated, requiring only one connection each for voltage, signal, and telemetry information. Together with the SPM4649T serial telemetry receiver, all telemetry data can now be transmitted to the Spektrum remote control.

Key Features:
• Compatible with all Spektrum receivers and other manufacturers (Futaba, Frsky, etc.). No built-in SBUS inverter
• Prepared for use with the new SPM4649T telemetry quad racing receiver for full telemetry support
• Standard dimensions of 36mm x 36mm for center mounting
• Race Flight One development
• High-speed 32kHz gyro
• Edge F4 processor
• LED driver for WS2812b programmable LEDs
• Built-in regulator flash function and configurator
• Integrated 5V voltage regulator for 2 – 6S batteries
• Spektrum telemetry lap timer input
• 16MB flash memory for black box

Technical Specifications:
Input Voltage: 2-6S LiPo battery (7.4-22.2V)
Dimensions (LxWxH): 36x36x6 mm (30.5x30.5 mm mounting hole)
Weight: 8g.
