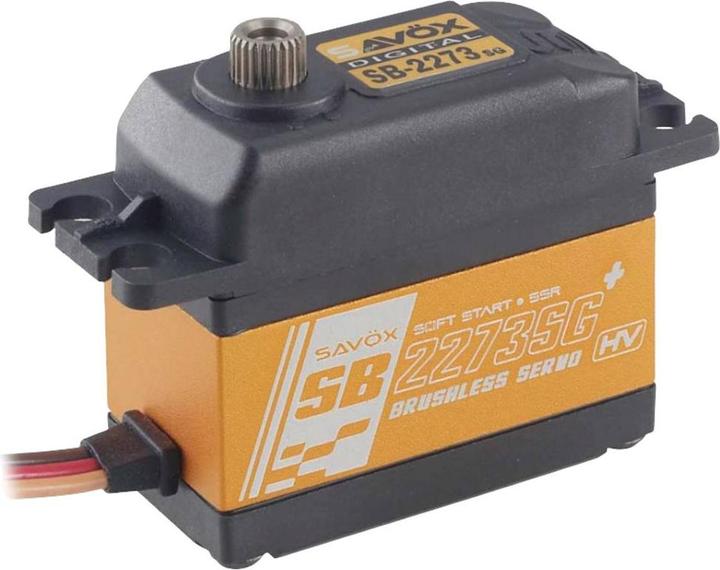

Savöx Servo SB-2273SG

Ratings
BrandMore from Savöx
Currently out of stock
Free shipping starting at 50.–

Product details

HV stands for high-voltage. Savöx servos marked in this way can be operated with up to 8.4V voltage. The use of a 2s LiPo battery is therefore possible without any problems. All HV servos can also be operated with a lower voltage from 4.8V, but in this case, less power is available.

High-voltage digital servo
Classification: Standard
Motor: Brushless motor
Gearbox: Steel
Number of teeth output pinion: 25
Housing: Part metal
Number of ball bearings: 2
Actuating time (sec) to 60 degrees: 0.12 at 6.0 V and 0.095 at 7.4 V
Actuating force (kg): 23.0 at 6.0 V and 28.0 at 7.4 V
Weight (g): 69.0
Dimensions L/W/H (mm): 40.3 x 20.2 x 38.7
Scope of delivery: Servo including servo arm and fastening screws
Range of application: Helicopter, aircraft, car, boat
Possible applications: Swashplate servo for helicopters, steering in buggies, and throttle/brake servo for all nitro cars.

Key specifications

servotype
Standard servo
Servo Technology
Digital
Additionally required (not included)
Servo lever and fastening screws

General information

Item number
24417131
Manufacturer
Savöx
Category
RC servos
Manufacturer no.
SB-2273SG+
Release date
28.2.2023

Material

Material
Metal

RC servo properties

servotype
Standard servo
Servo Technology
Digital
Bearing type
Double ball bearing

Scope of delivery

Scope of delivery
Servo

Additionally required (not included)

Additionally required (not included)
Servo lever and fastening screws

Product dimensions

Length
4.03 cm
Width
2.02 cm
Height
3.87 cm
Weight
69 g
