Product details

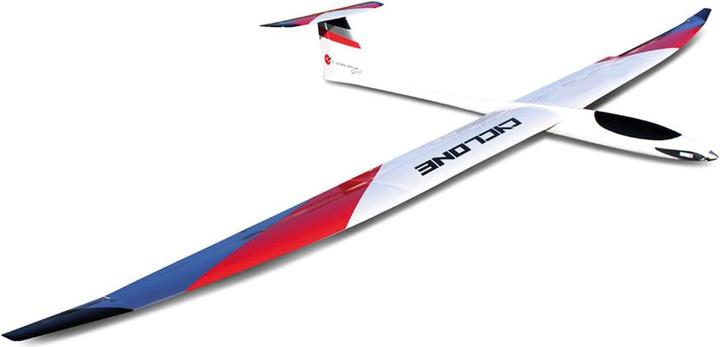

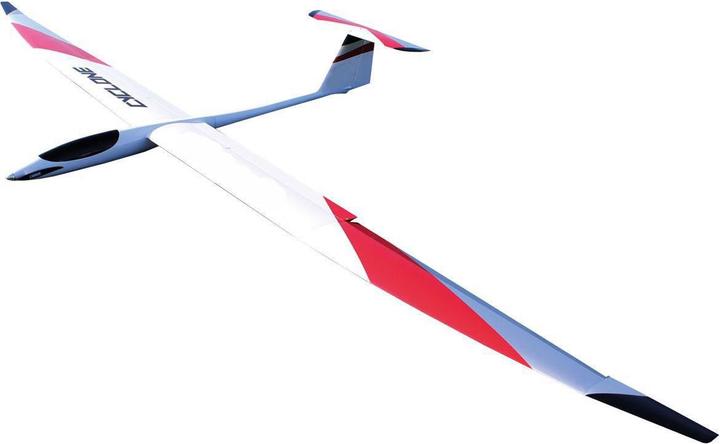

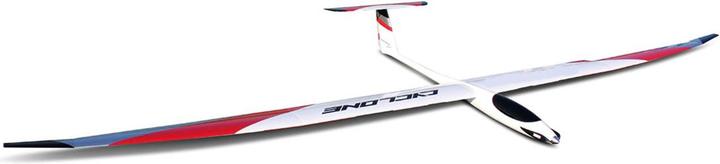

The CYCLONE is an electric sailplane model with a wingspan of 5.50 m. The model features a painted fiberglass fuselage and two three-part wings with Abachi sheeting. A standout feature of the CYCLONE is the airfoil shape of the wings. The airfoil transitions from an HQ/W-2.5/12 at the root rib to an HQ/W-2.5/11 in the middle, finishing at the winglet with an HQ/W-3/10.5.
Features:
- Two-part fuselage made of fiberglass/Kevlar reinforced with carbon fiber
- Wings fully sheathed with Abachi for high pressure resistance
- Pre-covered with ORACOVER
- Six-part wing with integrated MULTIlock wing locks
- Wings with MPX connector for electrical connection (only PNP version)
- Solid 14 mm round steel connection for the inner wings, 12 mm carbon connection for the outer wings
- Center wing completely reinforced with 200 g carbon fabric on the top side, 80 g glass mat on the bottom side
- Outer wings fully reinforced with 80 g glass mat
- High-quality M3 control accessories made in Germany
- Stable elevator control with 5/3 mm carbon tube and M3 clevises

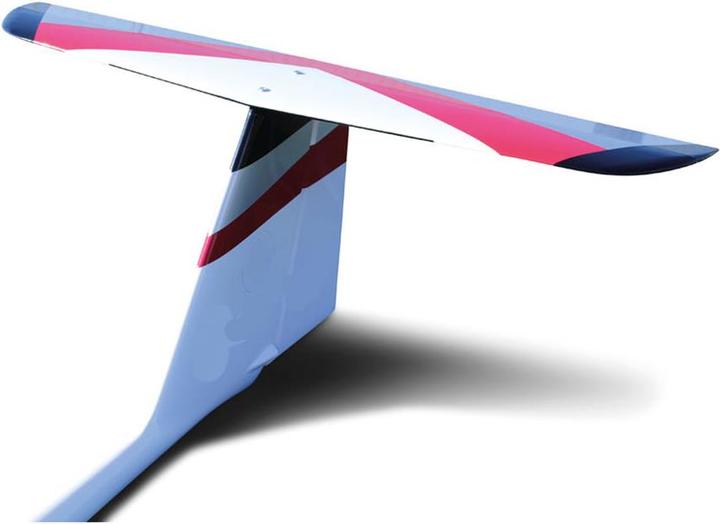

- Reinforced tail construction
- Continuous sandwich spar (carbon-pine-carbon) for maximum bending stiffness
- Precisely fitted anti-twist devices in all wing parts
- High degree of prefabrication
Delivery includes:
- CYCLONE model largely prefabricated
- Two-part fuselage made of fiberglass/Kevlar, reinforced with carbon fiber
- Abachi sheathed wings
- Pre-covered with ORACOVER
- Ro-Power 5030 310 K/V brushless motor installed
- 6x ROVOR S0150 MG BB servos installed
- CFK 20x8 folding propeller FALCON
- Aluminum spinner
- Manual in German/English
Recommended battery:
6S 5000-6300 mAh.
