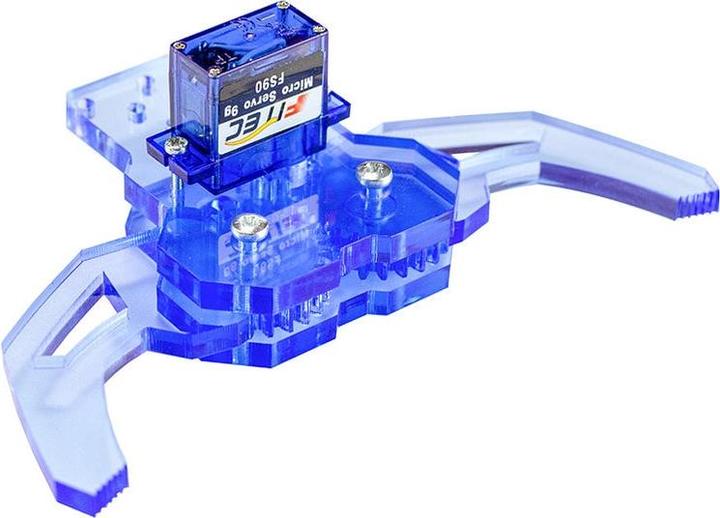

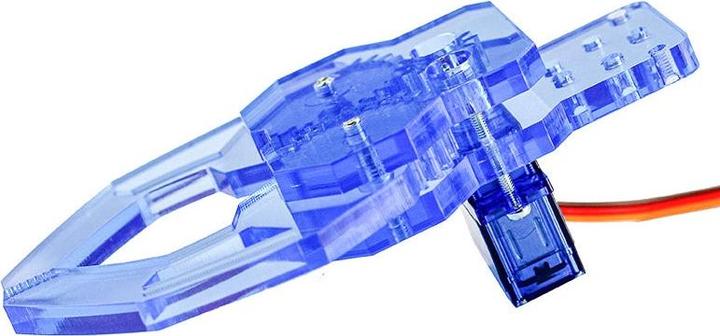

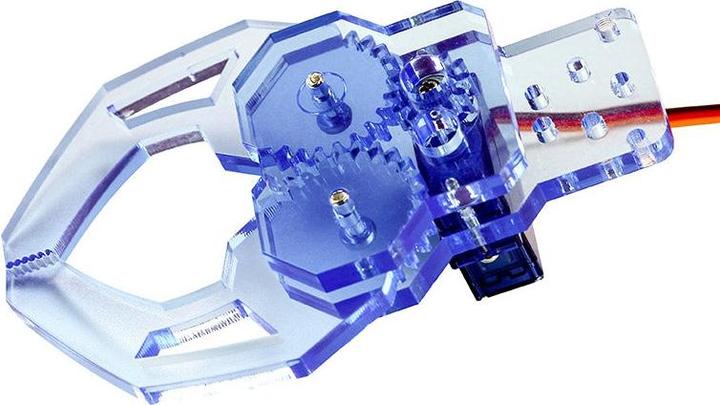

Kitronik Klaw MK2 Robotic Gripper Kit

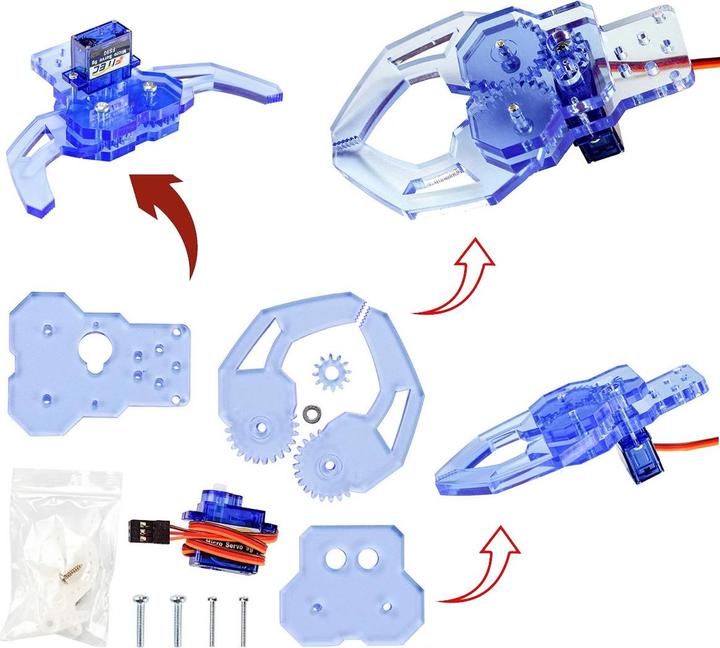

The Kitronik Klaw MK2 Robotic Gripper Kit is the latest version of the original and popular Kitronik Klaw and is a great addition to any robotics or buggy project. It has been carefully redesigned to be compatible with both the MOVE:mini Mk1 and Mk2. On the Mk1, it can be mounted to the boot lid, and on the Mk2, it can be added to both the boot lid and the base plate. Extra holes were added, and a slight change was made to the part that holds the servo to facilitate this. It is controlled by a low voltage servo, which is included; this servo is used to open and close the Klaw. At the rear of the unit are mounting points allowing it to be bolted to other items, such as buggies or robotic arms. Supply voltage: 3V to 6V. Supplied as a set of parts that require simple assembly; see the resources section below for build instructions.

Features:

• Easily add a gripping Klaw to any robotics project.
• Compatible with both MOVE mini Mk1 and Mk2.
• Servo powered opening and closing with the servo included as part of the kit.
• Easy to assemble.

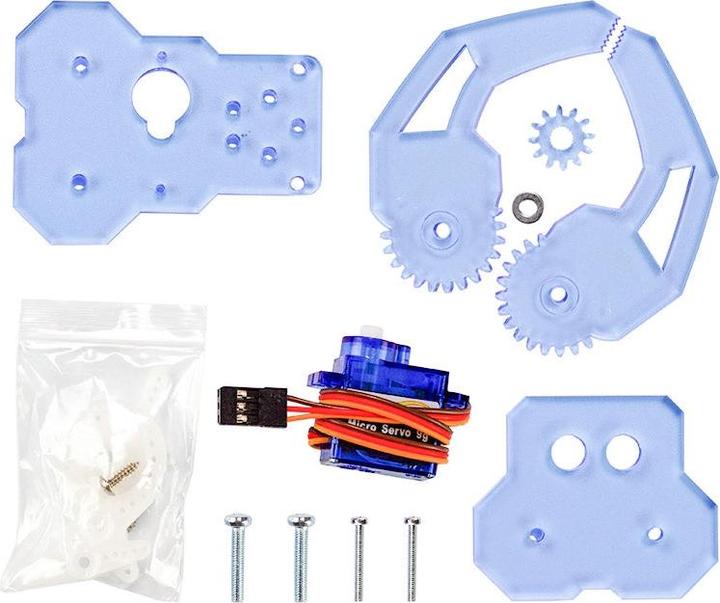

Contents:

• 1 x Mini 180 Degree Servo with accessories.
• 5 x Laser cut Perspex parts.
• 1 x M3 steel washers.
• 2 x M3 x 16 Pozi Pan Steel screws.
• 2 x M2 x 16 Pozi Pan Steel screws.

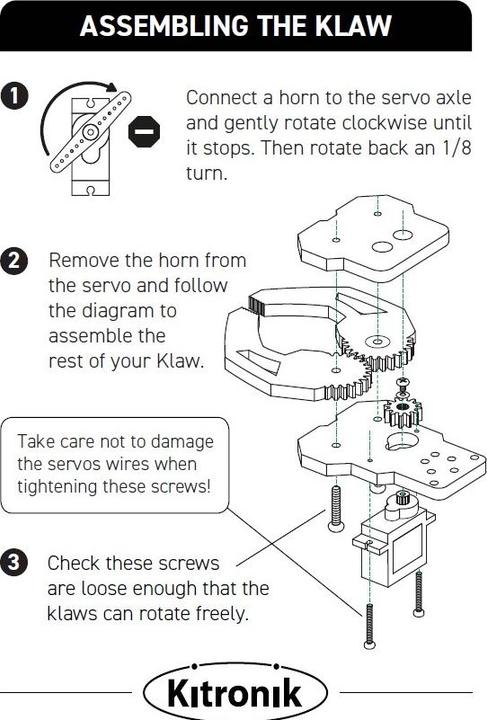

• Printed assembly instructions.

Dimensions:

• Closed length: 85mm.
• Closed width: 70mm.
• Open length: 45mm.
• Open width: 125mm.
• Height with servo: 38mm.
