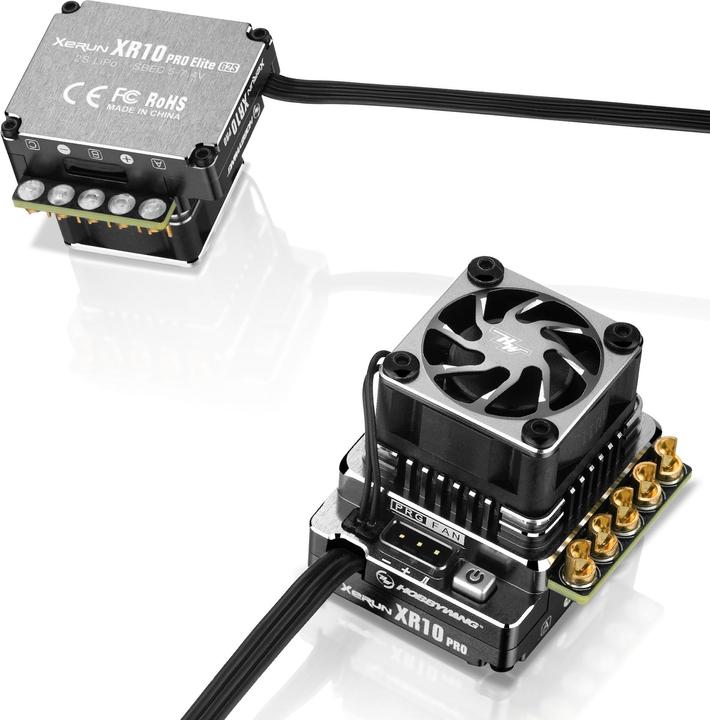

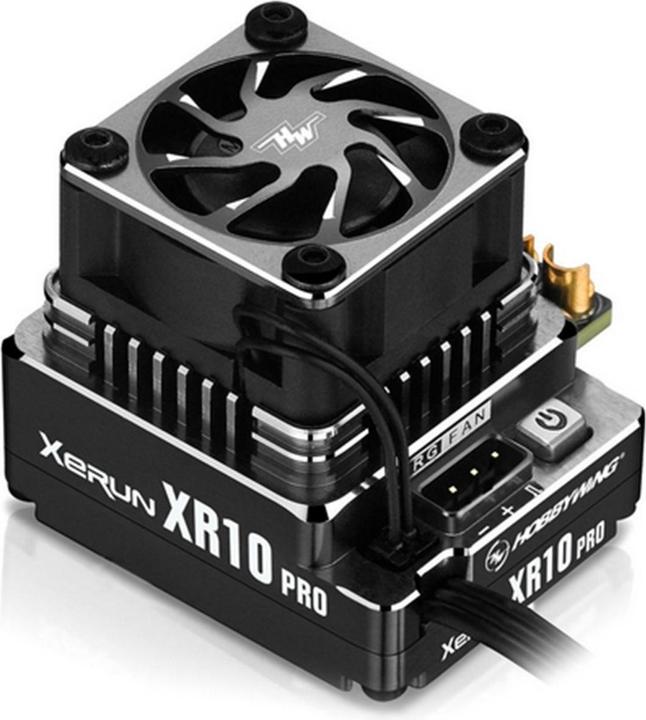

Hobbywing xerun xr10 pro elite g2s brushless controller 160a, 2s lipo

Ratings
BrandMore from Hobbywing
Delivered between Tue, 10.6. and Wed, 18.6.
Only 1 item in stock at supplier

Product details

The XR10 Pro Elite G2S performs exceptionally well in all 1/10 competitions. Equipped with a 32-bit M4 microprocessor and various safety features, it minimizes the risk of damage to a vehicle's components. Additionally, a sophisticated cooling system protects the controller from overheating. The copper heatsink on the power board further enhances this effect. Stay cool and enjoy the ride with the new softening function, which allows for a customizable driving experience tailored to the driver's preferences. When things get intense, drivers of the XR10 Pro G2S benefit from maximized braking power, now at an impressive 150%. With this controller, you can hardly go wrong.

Features:

  • Optimized wiring (compared to the standard XR10 Pro G2S)
  • 10 selectable profiles for all 1/10 RC car racing
  • Internal durable switch as well as the option to connect an external switch
  • Variable frequency control for PWM and brake frequencies
  • Softening function for milder or wilder driving control and improved driving efficiency
  • Various protection features against:
  • Reverse polarity
  • Overheating
  • Low voltage cutoff
  • Signal loss
  • Data logging for temperature, RPM, and more
  • Firmware upgrades available to stay up to date

Technical specifications:

  • Type: Brushless, sensored
  • Current (continuous/peak): 160A / 1200A
  • Input voltage: 2S LiPo / 4-6 cells NiMH
  • BEC: 5V - 7.4V at 5A (in 0.1V increments)
  • Motor types: 3650 brushless motors with 2S LiPo/6S NiMH:
  • (Touring car) T >= 4.5T, (Buggy) T >= 5.5T
  • Fan: Yes, powered by the BEC
  • Programming: LCD programming box, OTA programming module
  • Size: 37.5 x 30.9 x 32.5 mm (without fan and fan cover)
  • Weight: 88 g (without cables)
  • Applications: 1/10
  • Accessories (optional): LCD programming box, OTA programming module.

Key specifications

Engine type
Electric motor
Item number
23149300

General information

Manufacturer
Hobbywing
Category
RC motors
Manufacturer no.
HW30112617
Release date
22.12.2022

Colour

Colour
Black

Engine properties

Engine type
Electric motor
RC Electric motor type
Brushless electric motor
Motor version
Boat engine
Power consumption
160 A

Speed controller features

Speed controller type
Brushless
continuous current
160
usableness
Motor

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
3.75 cm
Width
3.09 cm
Height
3.25 cm
Diameter
30.90 mm
Weight
88 g

Package dimensions

Length
10.80 cm
Width
7.50 cm
Height
5 cm
Weight
150 g
