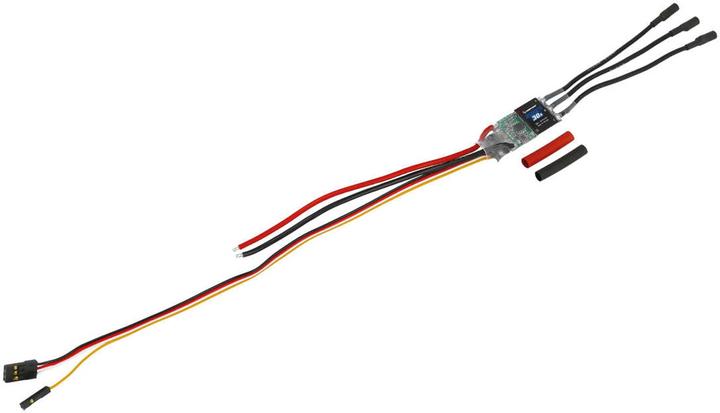

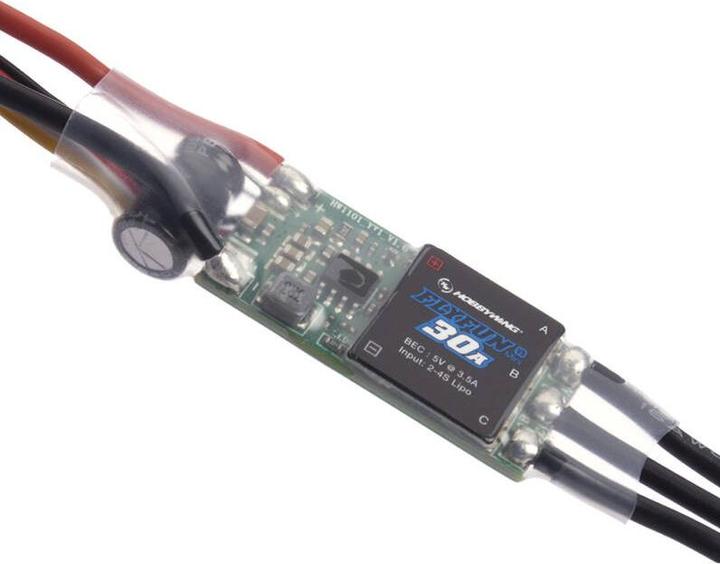

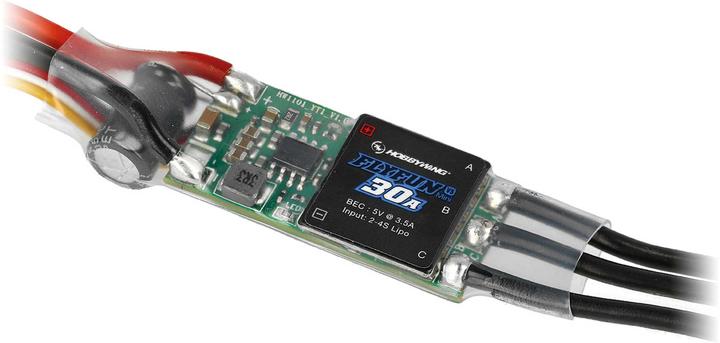

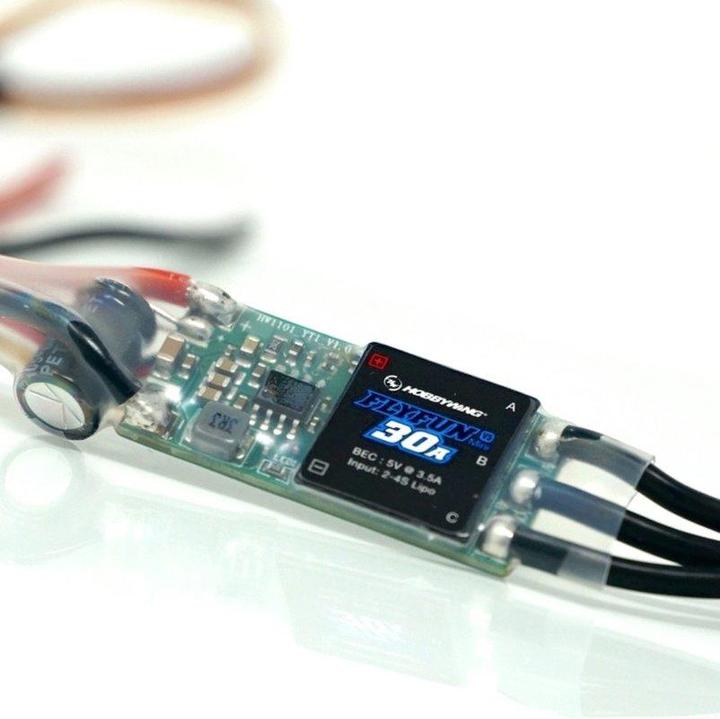

Hobbywing FlyFun 30A Mini V5 Series ESC

The ESC features a high-performance 32-bit ARM M4 microprocessor with a running frequency of up to 72MHz, making it compatible with various brushless motors. The microprocessor, powered by a separate DC regulator, offers better anti-interference performance, significantly reducing the possibility of losing control.

DEO (Driving Efficiency Optimization) technology greatly improves throttle response and driving efficiency while reducing ESC temperature. It includes a built-in high-power BEC with an adjustable output voltage of 5.2V, 6.0V, and 7.4V. The BEC module is separate from other circuits on the ESC, ensuring normal BEC output can be maintained in case of issues like a burnt power board, allowing users to safely return the aircraft before a crash.

Normal, soft, and very soft start-up modes are compatible with regular propeller airplanes and EDF jet airplanes. It is recommended to select the “very soft start-up” mode when using EDF jet airplanes. A separate programming cable connects the ESC to a LED program box, enabling users to program the ESC anytime and anywhere.

Normal, proportional, and reverse brake modes, especially the reverse brake mode, can effectively shorten the landing distance for the aircraft. Multiple protection features, including start-up, ESC thermal, capacitor thermal, over-current, overload, abnormal input voltage, and throttle signal loss, effectively prolong the service life of the ESC.
