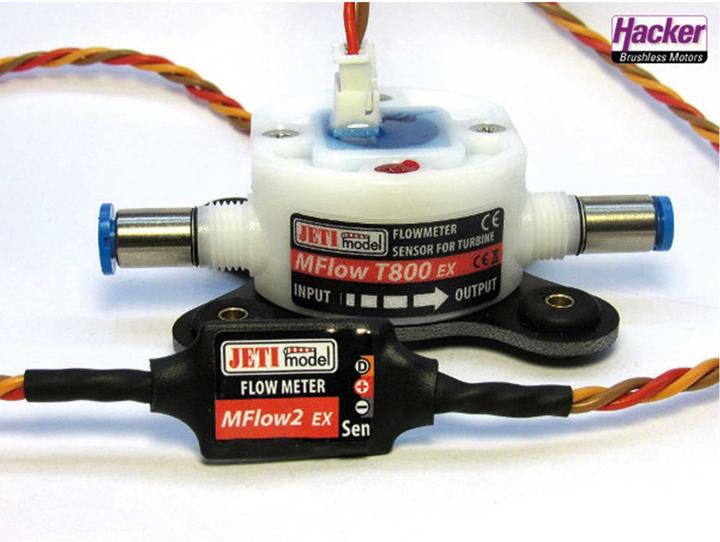

Hacker DUPLEX 2.4EX MFlow2 Turbine 800
Only 1 item in stock at supplier
Product details
This telemetry sensor measures the flow of jet fuel from the tank to the turbines and can reliably display the tank level. The MFlow2-T800 turbine is suitable for models with turbine drive. The sensor is compatible with the Duplex EX-Bus system. Configuration is done through the device overview of the JETI DC/DS transmitter (file MFLOW2.bin required). The switch/button on the DC/DS transmitter can be selected to clear the average and maximum values.
EX telemetry values: current flow and tank level. User-adjustable parameters, such as tank volume and minimum fill level alarm. Firmware update via JETI USBa. Calibration of the sensor specifically for turbine fuel.
Technical specifications MFlow2-T800:
Measuring range [ml/min]: 20-800
Measurement tolerance [%]: ±2
Hose connection [mm]: 2x Festo 4mm
Dimensions [mm]: 77x41x30
Weight [g]: 40
Voltage range [V]: 5-8.4
Operating temperature [°C]: -20 to 80
Installation: on the pressure side.
