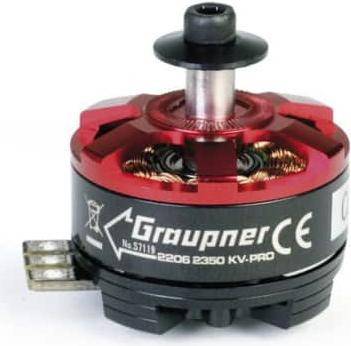

Graupner Electric motor Ultra Pro 2206, 2350 KV, brushless motor left hand thread

High-performance motor for professionals for multicopters. Hand-wound brushless outrunner motors with a special multi-winding design for optimal winding fill and thus optimal efficiency as well as improved cooling. Specially shaped, thicker, and larger N52H magnets provide up to 30% more torque and good temperature resistance. Particularly stable and thicker motor shaft. A 2206 motor stator has been installed. The motor size corresponds to the previous Graupner 2806 sizes, meaning 28 mm outer diameter with a 6 mm stack height. Optimal power-to-weight ratio. Reduced mass inertia due to the new M3 prop mounting. PCB for easy soldering of the connection cables. The set includes a set of screws and a prop adapter for securing the Graupner 3D PROP against twisting. Note: Graupner specifies a connection with 2 mm gold contacts for these motors. In fact, neither connectors nor cables are included in the delivery. The connection is made, as shown in the illustration, via PCBs for self-soldering your cables.

Technical specifications:

• Magnet: N52H
• Operating voltage range [V]: 7.4...15.2 V
• Weight approx. [g]: 35 g
• Height [mm]: 33 mm
• Weight [g]: 35 g
• Number of LiPo, Lilo cells: 2 - 4
• Number of poles: 14
• Nominal voltage [V]: 14.8 V
• Housing length: 20 mm
• Recommended propeller: 5 - 6.5
• Shaft diameter [mm]: 5 mm
• Housing diameter: 28 mm
• RPM/Volt [kV]: 2350
• Brushless: Yes
• Stator: 2206.
