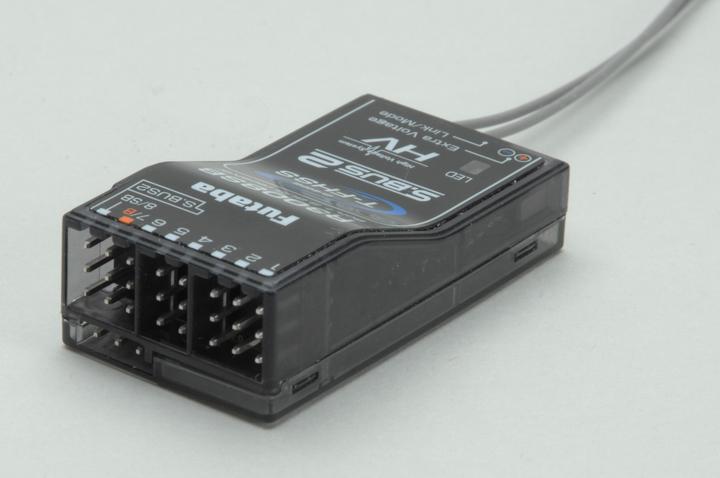

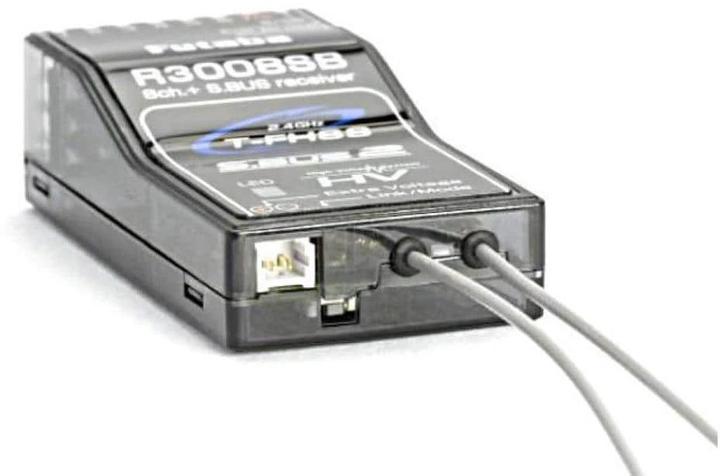

Futaba R3008sb

The Futaba R3008SB is a compact and lightweight T-FHSS 2.4 GHz receiver with an integrated telemetry function. Its ultra-slim design makes it ideal for models with narrow fuselages.

Up to 10 programmable S.BUS servos or peripheral devices such as gyros, flybarless systems, or speed controllers can be connected to the S.BUS output. Thanks to digital addressing, each servo only responds to information that includes the correct servo address. No more cable clutter: one line to the wing, and for larger models, one cable per wing and one cable to the tail. It couldn't be simpler. This cable-saving and therefore weight-saving method can also be achieved with existing analog or digital standard servos. Only a PWM adapter is needed to convert the signal from S.BUS to PWM.

The R3008SB features antenna diversity and constantly checks the signal quality of both antenna inputs. This allows for quick and seamless switching to the better input signal.

Through the S.BUS2 connection, S.BUS2 sensors can be connected, allowing for the transmission of up to 32 telemetry data sets. The integrated telemetry transmitter in the receiver sends the telemetry data from the S.BUS2 connection to the transmitter, which displays, announces, or outputs the information audibly.

When connecting the receiver, the receiver battery voltage and antenna signal strength are automatically transmitted. An additional adapter cable can be used to measure and transmit another external voltage (e.g., the drive battery up to 70 V).

When using 7.4 V LiPo batteries as the receiver battery, the connected servos must also be rated for this voltage. The receiver does not have an internal voltage converter for the servo voltage.
