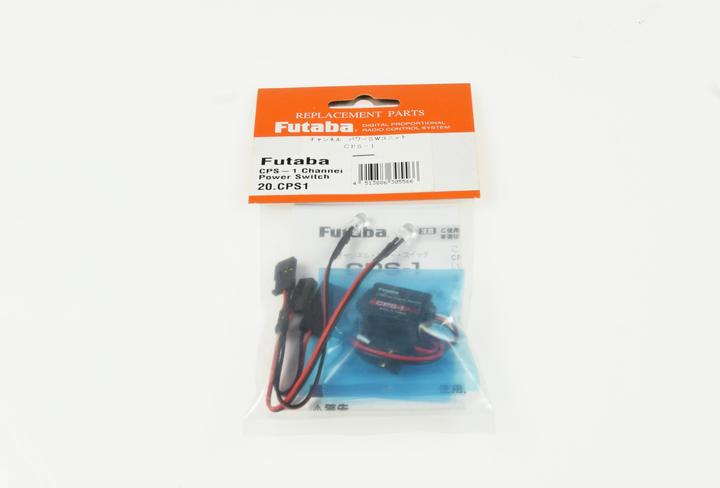

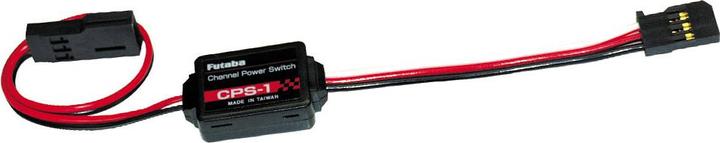

Futaba Channel switch CPS-1

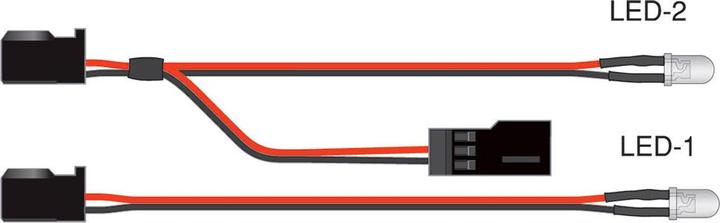

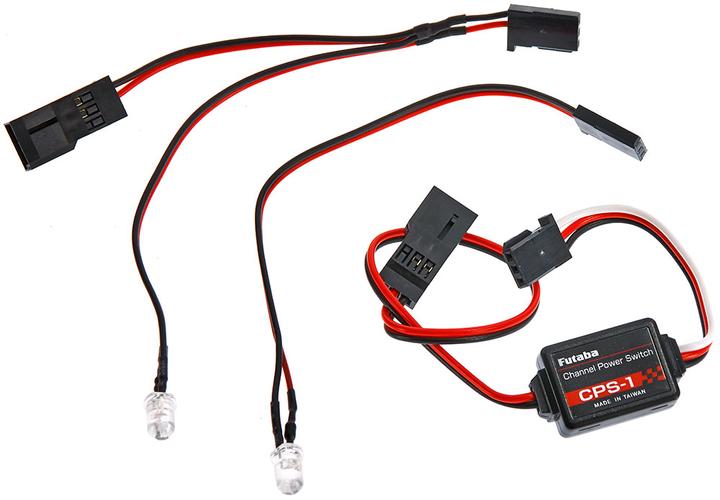

CPS-1 Channel Power Switch with two included LEDs. Designed for lighting, such as an aircraft fuselage. The LEDs can be turned on and off during operation using the CPS-1. To do this, it must be plugged into an available switch channel. The CPS-1 can also be used to turn the wing lighting (LED) on and off, enhancing the visibility of an aircraft or helicopter. Electronic switch, two LEDs with cable and connector included. Dimensions: 16.0 x 22.0 x 7.6 mm (without protrusion), weight: 5.9 g, power consumption: 10 mA at 6.0 V, output voltage: dependent on the receiver's voltage source, output current: max. 200 mA, power supply: NiMH battery 4-5 cells, operating temperature range: -10 to +45°C.
