Carson Reflex Switch 2/4 Power Distribution

Art. No.: 500503062
Product Name: Reflex Switch 2/4 Power Distributor

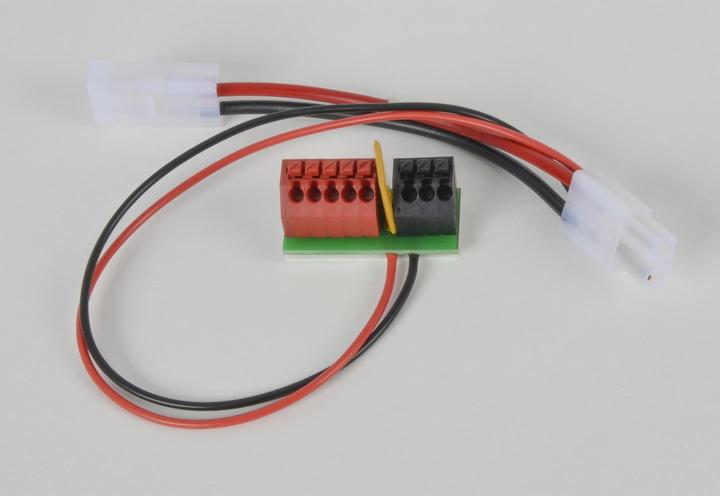

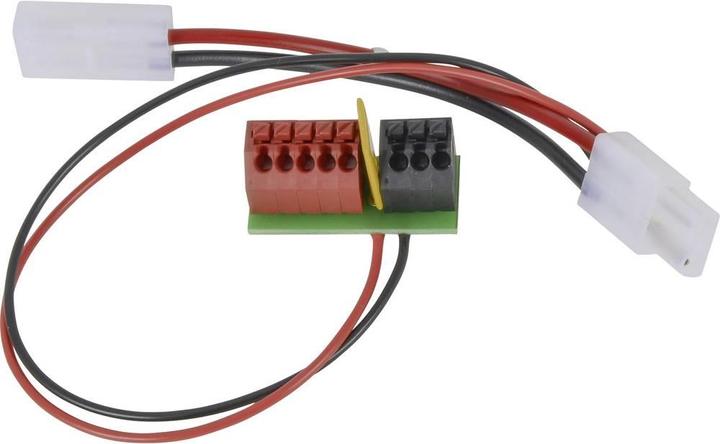

The distribution terminal allows for easy connection (almost solder-free) of additional components, such as switching modules to the drive battery. The battery cable does not need to be cut. The circuit board features two spring-loaded terminals. A red 5-pole terminal is connected to the positive pole via a self-resetting fuse, and a black 3-pole terminal is directly connected to the negative pole. In the event of a short circuit, the fuse quickly becomes high-resistance and nearly completely interrupts the current flow. It maintains this state as long as the short circuit persists. Only once the short circuit is removed does the fuse reset to its original state after a short period. Due to the sluggish behavior of the fuse, higher currents can also be realized temporarily. It is advisable to tin the cable ends.

Compatible with:
CARSON Reflex Switch 2/4
Reflex 6/14Ch Switch 2 (2x 2.5A)
Reflex 6/14Ch Switch 4 (4x 2.5A)
Reflex 6/14Ch Switch 4 (4x 2.5A / 15Prog.).
