BeastX Nanobeast

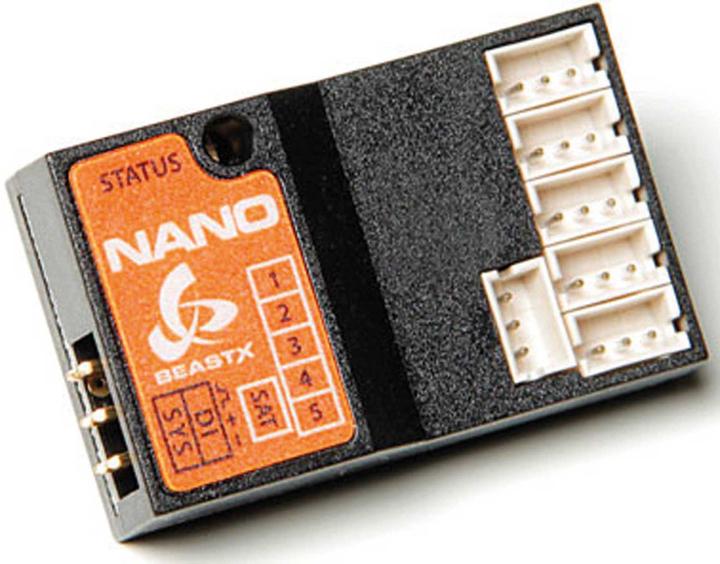

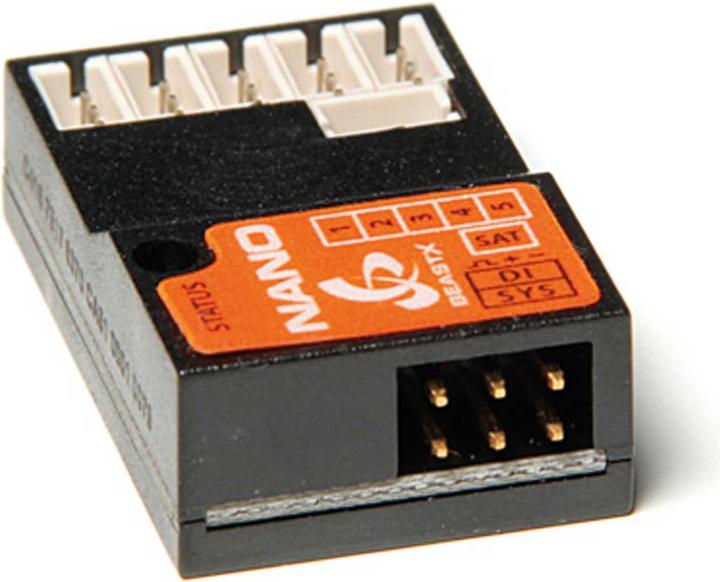

The NANOBEAST is a control unit for small and miniature RC model helicopters without a secondary rotor plane. The integrated gyroscopic elements stabilize the helicopter to a large extent, allowing it to follow only the pilot's commands. The control feel can be adjusted from tame to extremely agile, making the model suitable for nearly all pilot requirements, whether they are beginners or 3D professionals. A paid firmware upgrade allows the system to be expanded to "ProEdition," which offers additional features such as AttitudeControl for stabilization and recovery of the model in unstable flight situations, as well as a bank switch that allows switching between different parameter sets in flight. For basic setup and tuning of the system, a computer (Windows/mac), smartphone, or tablet (iOS/Android) with Bluetooth LE is required. Depending on the technology used, a USB2SYS (for computer) or BLE2SYS (for smartphone/tablet) interface is also needed. This is not included and must be purchased separately. Configuration is done via the StudioX software, which is available for free download.

Supported receiver types/transmission protocols:
• SRXL: JR® XBus (Mode B), Multiplex® SRXL (V1+V2), Jeti® UDI, Graupner/SJ® HOTT SUMD, Spektrum® SRXL
• Futaba® SBUS
• Single satellite (Spektrum® DSM2/DSMX, JR® RJ-01 DMSS)
• Jeti® EXBUS
• ALIGN/FlySky iBus
• PPM sum signal (SPPM)

Technical specifications:
Receiver connections: Spektrum®/JR® single satellite, sum signal connection for Graupner® HOTT, Futaba® SBus, Jeti® exBus, FlySky® iBus, FrSky® SRXL, Multiplex® SRXL, JR® XBus (B), Spektrum® SRXL, Align® iBus, SPPM
Input voltage: 4.8V to 6.0V
Recommended helicopter size: 180 to 250 electric helicopter
Dimensions: 32x20x10mm
Weight: 5.8g

Delivery includes:
• 1x NANOBEAST control unit
• 1x patch cable for sum signal receiver
• 2x adhesive pads
• 1x manual
• 1x decal sheet.
