Best Bernardo Cantina products in the Vices + Clamps category
On this page you'll find a ranking of the best Bernardo Cantina products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

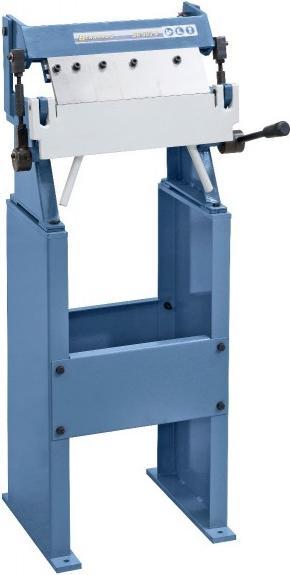

1. Bernardo Cantina Bernardo - Schwenkbiegemaschinen SB 305 S
SB 305 Technical Data
Working Length: 305 mm
Max. Sheet Thickness (400 N / mm²): 1.0 mm
Max. Opening Width: 27 mm
Bending Angle: 0 - 135°
Working Height with Base Frame: 890 mm
Width: 510 mm
Depth: 280 mm
Height*: 365 mm
Weight approx.: 25 kg
* without base frame
Features:
Manual bending machine for standard tasks
Swing movement of the bending arm via a lever handle
Upper arm rail with peak angle of 45°
Affordable entry-level model for craftsmen
User-friendly upper arm delivery via eccentric
Removable segments for bending boxes
Secure clamping of the sheet metal using a special clamping device
Scope of Delivery:
Segmented upper arm
Bending segments 26 | 2 x 51 | 76 | 101 mm
Subject to changes and errors.

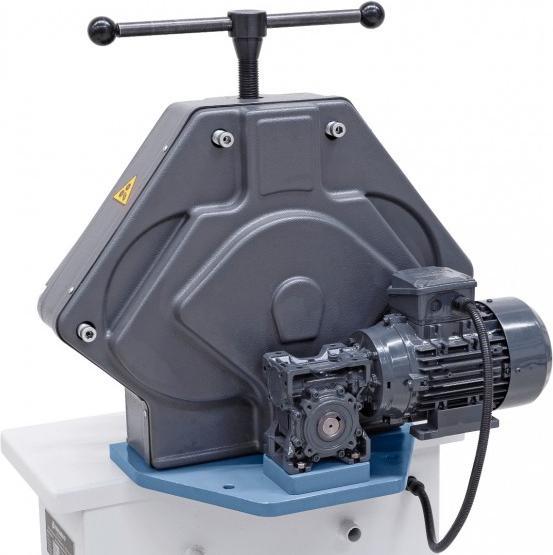

2. Bernardo Cantina Bernardo - Motorische Ringbiegemaschine BPK 35 N
The BPK 35 N motorized ring bending machine from Bernardo Cantina is a powerful tool designed for precise bending of metal profiles and sheets. With a robust design and a motor power of 0.75 kW, this machine offers high efficiency and reliability in material processing. The bending speed of 4.5 m/min allows for quick processing, while the various roller diameters provide a range of bending options. The machine is equipped with a foot pedal that ensures easy operation and safety, as it includes an emergency stop function. The BPK 35 N is ideal for use in workshops that require a precise and efficient solution for metal bending.
- Robust construction for durability and stability
- Built-in safety features such as emergency stop via foot pedal
- Versatile bending options through different roller diameters
- Expandable with special accessories for specific applications.
3. Bernardo Cantina Bernardo - Sickenmaschine SM 470

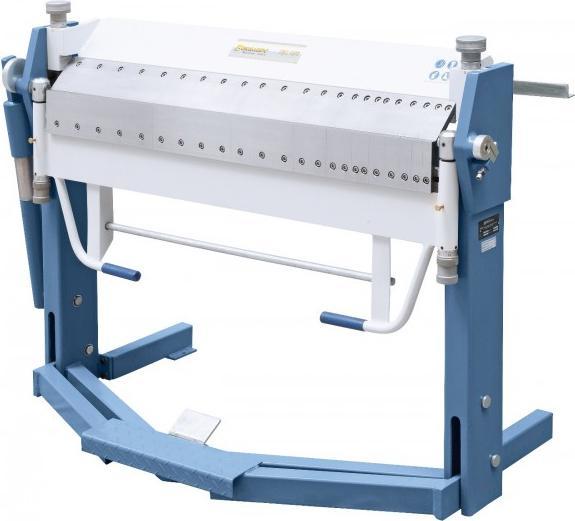

4. Bernardo Cantina Bernardo - Schwenkbiegemaschine TBS 1270
The Bernardo TBS 1270 bending machine is a versatile and robust solution for bending tasks in sheet metal shops and repair businesses. With a maximum sheet thickness of 2.0 mm and a working length of 1270 mm, this manual bending machine offers high flexibility for various bending tasks. The machine is equipped with segmented upper and lower jaws, allowing for a wide range of bending options. The bending process is controlled by a foot pedal, keeping the hands free to optimally position the sheet metal. The TBS 1270 is not only functional but also features a modern design that fits into any workshop. Its sturdy construction ensures durability and reliability when performing standard bending tasks.
- Segmented upper and lower jaws for versatile bending options
- Foot pedal control for hands-free operation
- High upper jaw for creating high-edged profiles
- Easy adjustment of the lower jaw to the sheet thickness
- Optimal price-performance ratio for professional applications.

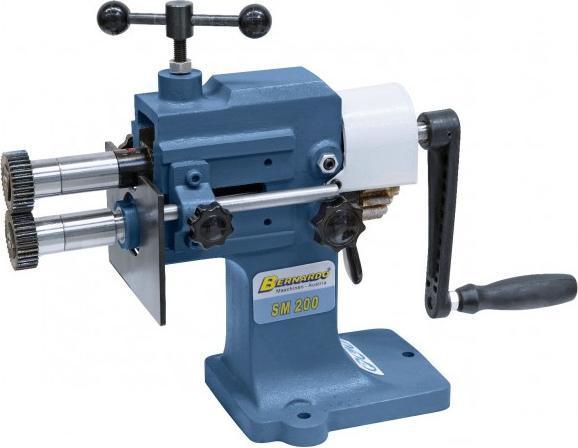

5. Bernardo Cantina Bernardo - Sickenmaschine SM 200

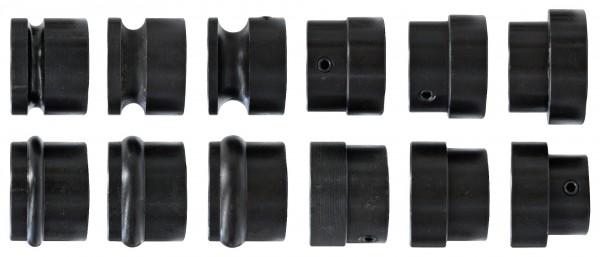

The Bernardo Sickenmaschine SM 200 is a versatile tool specifically designed for the production of various types of flanges. With a stable cast construction and precise shaft bearings, this device offers high processing quality and durability. The SM 200 allows for the processing of sheet metal thicknesses up to 0.8 mm and is equipped with an adjustable stop that ensures precise handling of workpieces. The machine is designed for professional use and is ideal for metalworking shops that value efficiency and accuracy. With the ability to use different pairs of rollers, the SM 200 can be adapted to various requirements, significantly expanding its range of applications. The package already includes seven pairs of flange and beading rollers, enabling immediate use.
- Precise shaft bearings for optimal processing results
- Stable cast construction for high durability
- Adjustable stop on the lower shaft for flexible application
- Includes seven pairs of flange and beading rollers in the package
- Expanded range of applications with optionally available roller pairs.

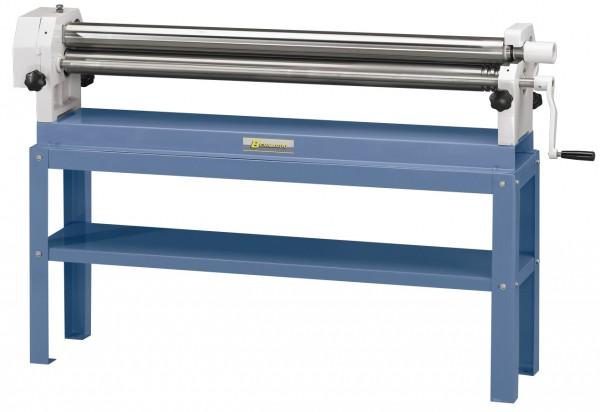

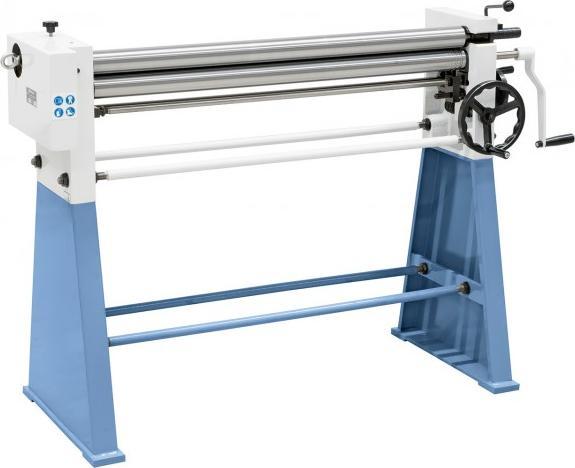

6. Bernardo Cantina Bernardo - Rundbiegemaschine HRM 1000
The Bernardo HRM 1000 round bending machine is a powerful tool designed for processing sheet materials. With a roller length of 1035 mm and the ability to handle sheet thicknesses of up to 1.5 mm, this machine offers high flexibility for various applications. The asymmetrical roller arrangement allows for convenient pre-bending, while the swiveling upper roller facilitates the removal of the finished workpiece. The machine is equipped with a robust gear transmission that ensures reliable roller drive. The high-quality construction of the bending rollers made of steel guarantees durability and precision. The HRM 1000 is ideal for producing cones, pipes, and cylinders and comes with a base frame as well as a conical bending device.
- Upper roller with horizontal insertion groove for tight radii
- Adjustable rear roller for conical bending
- Lower and rear rollers equipped with wire insertion groove
- Solid gear transmission for reliable roller drive
- Optimal price-performance ratio with standard base frame.

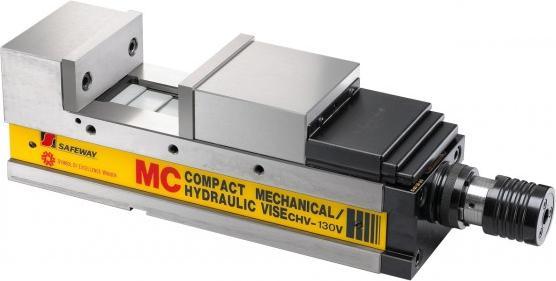

7. Bernardo Cantina Bernardo - NC-Maschinenschraubstock CHV 160 V
NC Machine Vice CHV 160 V
Technical Data:
- A: 630 mm
- B: 495 mm
- C: 135 mm
- D: 161 mm
- E: 160 mm
- F: 163 mm
- G: 85 mm
- H: 15 mm
- I: 130 mm
- J: 0 - 240 mm
- J1: 240 - 320 mm
- J2: 240 - 360 mm
- J3: 240 - 470 mm
- K: 58 mm
- L: 22 mm
- M: 125 mm
- N: 18 mm
- P: 14 mm
- X: 65 mm
- Y: 105 mm
- Max. Clamping Force: 5500 kg
- Weight: approx. 58 kg
Features:
- Suitable for use on machining centers, in tool, fixture, and mold construction.
- The stable base body made of spheroidal cast iron is hardened and ground.
- Clamping system is mechanical/hydraulic, operable via hand crank, usable horizontally, laterally, and vertically.
- Alignment on the table via T-slot, longitudinal upon request.
- Spindle protected against dirt and chips.
- Integrated downforce mechanism prevents the lifting of the movable jaw and tilting of the workpiece.
- High and secure clamping force with minimal physical effort.
- Long flat guide of the movable jaw.
- Various special jaws available.
- The overall length of the vice remains the same even with large workpieces.
- Special versions available upon request: grooves and mounting holes. Subject to changes and errors.
8. Bernardo Cantina Bernardo - Rundbiegemaschine RM 1300
The RM 1300 bending machine from Bernardo Cantina is a powerful tool designed for processing sheet materials. With a roller length of 1300 mm and the ability to handle sheet thicknesses of up to 1.5 mm, this machine offers high flexibility for various applications. The asymmetrical roller arrangement allows for easy pre-bending, while the adjustable rear roller facilitates conical bending. The machine is equipped with high-quality bending rollers that ensure precise and durable use. The swiveling top roller allows for effortless removal of the finished workpiece, increasing efficiency during operation. The RM 1300 is ideal for producing cones, pipes, and cylinders, making it suitable for both professional use and ambitious hobbyists.
- Asymmetrical roller arrangement for convenient pre-bending
- Adjustable rear roller for conical bending
- High-quality bending rollers for durability
- Swiveling top roller for easy removal of workpieces
- Bottom and rear roller with wire insertion groove for precise bends.

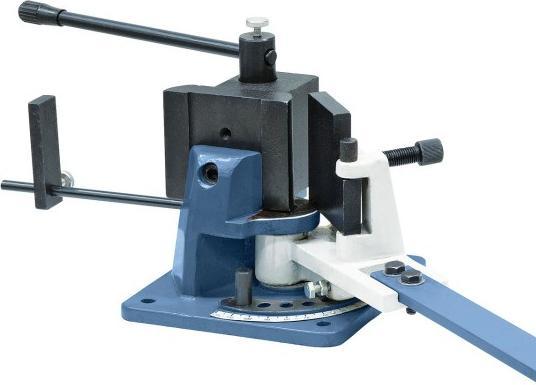

9. Bernardo Cantina Bernardo - Winkelbieger WB 100 S
The WB 100 bending machine from Bernardo Cantina is a versatile tool designed for precise cold and hot bending of various types of steel. It is ideally suited for use in repair shops and metalworking businesses where precision and efficiency are essential. With a sturdy construction, the machine can be securely mounted on a workbench, ensuring safe handling. The bending machine offers high repeat accuracy and allows for bending flat, round, and square steel in different dimensions. The infinitely adjustable bending stop and the eccentric quick clamping provide an efficient working method and easy operation. The readable bending angles of up to 120° allow for precise adjustments to meet specific requirements.
- Sturdy design for secure mounting on the workbench
- Infinitely adjustable bending stop with locating pin
- Eccentric quick clamping for efficient operation
- Readable bending angle up to 120°
- High repeat accuracy due to bending angle stop.

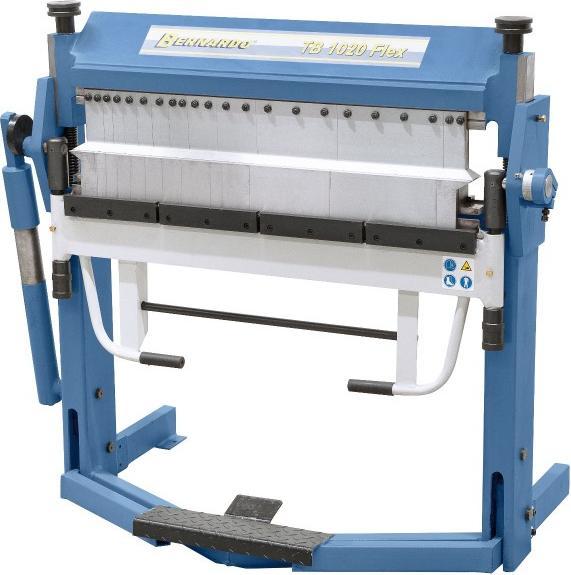

10. Bernardo Cantina Bernardo - Schwenkbiegemaschine TB 1020 Flex
TB 1020 Flex
Technical Data
Working Length: 1020 mm
Max. Sheet Thickness (400 N/mm²): 2.0 mm
Max. Opening Width with Segments: 48 mm
Max. Opening Width without Segment: 150 mm
Max. Passage Height Closed: 125 mm
Bending Angle: 0 - 135°
Backstop: 600 mm
Working Height: 900 mm
Width: 1400 mm
Depth: 1070 mm
Height: 1260 mm
Weight approx.: 430 kg
Features
The piano inserts in the upper, lower, and bending beams provide a wide range of bending options. Cassettes and special profiles with opposing bends can be easily processed with these models. Universally applicable bending machines for sheet metal shops and repair businesses. Simple pivoting movement of the bending beam using a handle. Easy adjustment of the upper beam for efficient working. High upper beam for producing profiles with high flanges. Large flat guide for precise work. An auxiliary cylinder supports the bending process during folding.
Scope of Delivery
Segmented upper, lower, and bending beams, backstop, corner segment left/right each 75 mm | 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 | 200 | 270 mm.
Subject to changes and errors.
