Best selling Thermal imaging cameras from Uni-T
On this page you'll find a ranking of the best Uni-T products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Uni-T UTi712S
The UNI-T UTi712S is an affordable thermal imaging camera with a temperature range of -20 °C to 400 °C. It also features a 2.4-inch TFT-LCD display with a resolution of 320 x 240 pixels. The built-in 2600 mAh lithium-ion battery provides a long operating time.
2. Uni-T UTi720E Professional Thermal Imaging Camera
The UTi720E is an advanced thermal imaging camera with Wi-Fi functionality. Its large 8.89 cm (3.5") IPS screen can clearly display a 2-megapixel camera with an IR resolution of 256x192 or a blended image from both. It is capable of measuring temperatures.

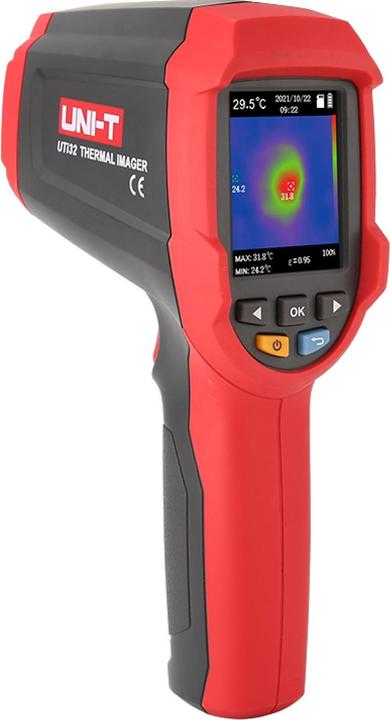

3. Uni-T UTi32 High Temperature Thermal Imaging Camera
The UTi32 professional thermal imaging camera from UNI-T is a powerful and reliable tool specifically designed for high-temperature inspections. This camera is ideal for applications in industries such as metal processing, glass and porcelain manufacturing, petrochemicals, and metallurgy. It can quickly capture temperatures ranging from -20℃ to 1000℃ and automatically track and alert the highest and lowest points. The UTi32 is a portable and lightweight thermal imaging camera featuring a 640x480 pixel digital camera that supports three image modes: thermal image, visual image, and fusion. With PC software analysis, the captured images can be further analyzed and evaluated. The camera boasts a long battery life of over 7 hours, ensuring it won't fail during inspections.
Features:
- Automatic tracking and alarm for high/low points
- Support for PC software analysis
- Portable and lightweight
- Equipped with LED light
Technical Details:
- Manufacturer: UNI-T
- Manufacturer SKU: UTi32
- Infrared resolution (pixels): 32×32
- Digital camera resolution: 640×480
- Spectral range: 8~14µm
- Emissivity: 0.01~1.00 adjustable (0.95 standard)
- Display: 2.4″ IPS (480×320)
- Field of view (FOV): 30°×30°
- Color palettes: 3 (Iron bow, Rainbow, Black hot)
- Image modes: Thermal image, Visual image, Fusion
- Thermal sensitivity (NETD): 0.15°C
- Focus: Fixed focus
- Temperature measurement range: -20°C ~ 1000°C
- Accuracy: ±2℃ or ±2%, whichever is greater
- Hi/Lo temperature alarm: Symbol
- Battery: Fixed Li-ion battery (3.7V 2600mAh)
- Battery operating time: ≥7 hours
- USB: Type-C
- Storage: 16GB Micro SD card
- Image/Video storage format: BMP
- Certifications: CE, UKCA, FCC, RoHS
- Software analysis: PC
- Dimensions: 205 x 124 x 65mm
- Weight: 660g
Package Includes:
- 1x UNI-T UTi32 high-temperature thermal imaging camera
- 1x Micro SD card
- 1x Type-C USB cable
- 1x English manual.

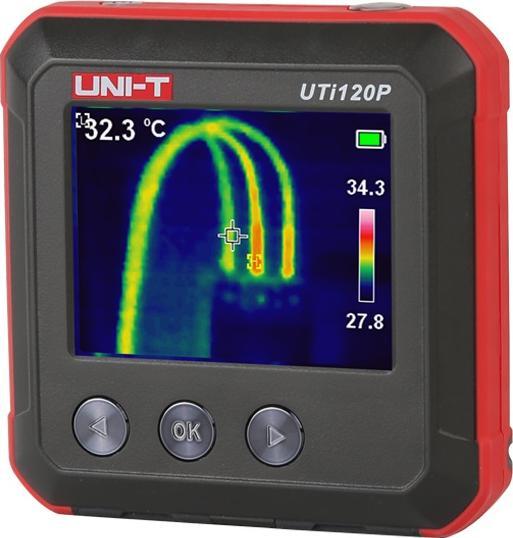

4. Uni-T UTi120P Pocket-sized Thermal Thermal Imaging Camera
The UTi120P pocket-sized thermal imaging camera from Uni-T is a compact and portable device that is ideal for mobile use. Its handy size allows it to fit easily into any pocket, enabling quick and efficient identification of temperature issues. The camera features an IR resolution of 120×90 and a temperature measurement range of -20°C to 400°C, making it versatile for various applications. The 2.4" TFT display with a resolution of 320×240 pixels ensures that all details are clearly visible. The UTi120P is equipped with features such as auto-alarm for high or low temperatures and auto-tracking for hot or cold spots, allowing for quick detection of potential hazards. Additionally, the image capture function enables the storage of important measurements for later analysis. The camera is powered by a rechargeable Li-Ion battery, ensuring long operating times, and is compatible with PC software for more precise data analysis.
- IR resolution of 120×90 for accurate temperature measurements
- Auto-alarm for high/low temperatures for hazard warning
- Auto-tracking for quick identification of problematic areas
- Three color palettes to adapt to specific requirements
- Rechargeable Li-Ion battery for long operating time
- 1m drop-resistant for robust use in everyday work.

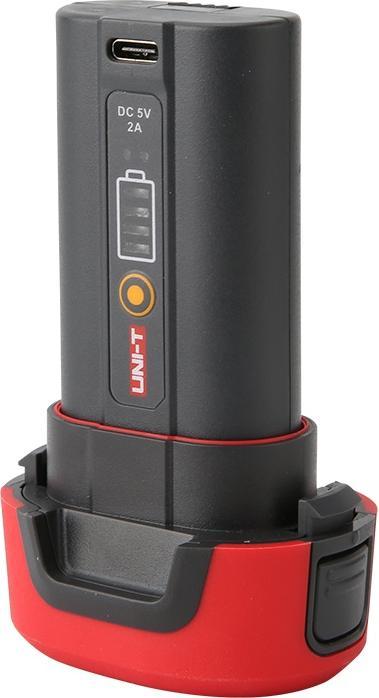

5. Uni-T UT-M17 Li-ion battery for thermal imaging camera UTi 720E/ 730E / 320E
The UT-M17 Li-ion battery is an essential accessory for your UNI-T thermal imaging camera. This powerful battery ensures that your UTi 720E, UTi 730E, or UTi 320E is always ready for use. It can be easily charged via USB-C, providing you with the flexibility to use your camera anytime and anywhere. With its high capacity, it is ideal for longer operations without worrying about power supply.
Features:
- Specifically designed for UNI-T thermal imaging cameras UTi 720E, UTi 730E, and UTi 320E.
- Easy and quick charging via USB-C.
- High capacity of 5200 mAh for extended operating times.
- Compact and lightweight design for easy handling.
Technical specifications:
- Manufacturer: UNI-T
- Manufacturer SKU: UT-M17
- Battery type: Lithium-Ion
- Nominal voltage: 3.7 V
- Capacity: 5200 mAh
- Connection: USB-C
- Dimensions: 62 x 45 x 101 mm
- Weight: 195.6 g
Delivery includes:
- 1 x UT-M17 Li-ion battery for thermal imaging camera UTi 720E/730E.
Thermal imaging cameras
CHF99.–
Uni-T UT-M17 Li-ion battery for thermal imaging camera UTi 720E/ 730E / 320E
6. Uni-T UTi120M
The UTi120M is a compact and portable thermal imaging camera specifically designed for use with Android smartphones. This professional module enables users to capture precise thermal images and measure temperature differences from -20 °C to 400 °C. With a pixel resolution of 120 x 90 pixels, the camera delivers clear and detailed images that are helpful in identifying issues across various applications. Whether inspecting electrical systems, checking heating, ventilation, and air conditioning systems, or analyzing solar panels, the UTi120M provides an efficient solution for DIY enthusiasts, engineers, and contractors. Its easy USB connection and compact design make it a practical tool for on-the-go use. The camera comes with a USB Type C cable and an adapter, making it ready to use right away. The UTi120M is not only a useful tool for technical applications but also a valuable aid in identifying water damage and firefighting.
- Temperature measurement range from -20 °C to 400 °C
- Thermal sensitivity of 60 mK for precise measurements
- Autofocus for clear and sharp images
- Lightweight and portable, weighing only 25 g
- Includes USB Type C cable and adapter for easy connection.
7. Uni-T UTi120Mobile thermal terminal camera
The UTi120Mobile thermal imaging camera is a state-of-the-art device designed for precise temperature measurements across a wide range of -20 °C to 400 °C. With an accuracy of ±2 °C or ±2%, this camera provides reliable results for various applications. Its compact design and lightweight of only 25 g make it an ideal companion for mobile use. The camera features a resolution of 120 x 90 pixels and allows for a frame rate of 25 FPS, ensuring a clear and smooth representation of temperature distribution. With seven available color palettes, users can visually present and analyze temperature data in an appealing manner. The UTi120Mobile is also equipped with various certifications such as CE, REACH, FCC, and RoHS, highlighting its safety and quality.
- Temperature range of -20 °C to 400 °C
- Accuracy of ±2 °C or ±2%
- Resolution of 120 x 90 pixels
- Frame rate of 25 FPS for clear displays
- Certified according to CE, REACH, FCC, and RoHS.
8. Uni-T UTi260B
The UTi260B is a special product from UNI-T's thermal imaging cameras designed for high-performance applications. It is cost-effective and has a wide temperature range of -20℃ to 550℃. It offers a higher IR resolution of 256×192 pixels compared to other models and features seven color palettes as well as four display modes: thermal image, visual image, fusion, and picture-in-picture. Additionally, it is user-friendly and robust enough to meet the IP65 protection rating and withstand a 2-meter drop test.
9. Uni-T UTi120MS
The UTi120MS is a professional handheld thermal imaging camera specifically designed for Apple devices. This compact and portable module easily connects to an iPhone, enabling quick and precise temperature measurements. With a maximum temperature detection of up to 400 °C and a resolution of 120 x 90 pixels, the UTi120MS provides clear thermal images that assist in identifying issues across various applications. Whether inspecting electrical systems, checking heating, ventilation, and air conditioning units, or analyzing solar panels, this device is a valuable tool for both professionals and DIY enthusiasts alike. Its fast response time and user-friendly operation make it an ideal solution for anyone looking to work efficiently and cost-effectively. With the UTi120MS, users can explore a new dimension of thermal imaging technology and locate problems more quickly and easily.
- Temperature measurement range from -20 °C to 400 °C
- Frame rate of 25 Hz for smooth image display
- Thermal sensitivity of 60 mK for precise measurements
- Compact design weighing only 25 g
- Easy connection via Lightning port for iPhones.
10. Uni-T Infrarot-Wärmebildkamera UTi720A
The thermal imaging camera UTi720A features a 2.8" TFT-LCD display, an IR resolution of 256x192, and has a temperature measurement range of -20 °C to 400 °C. The built-in lithium-ion battery provides a runtime of up to 7 hours.
