Best JUNG products in the Sockets category
On this page you'll find a ranking of the best JUNG products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. JUNG SCHUKO socket outlet

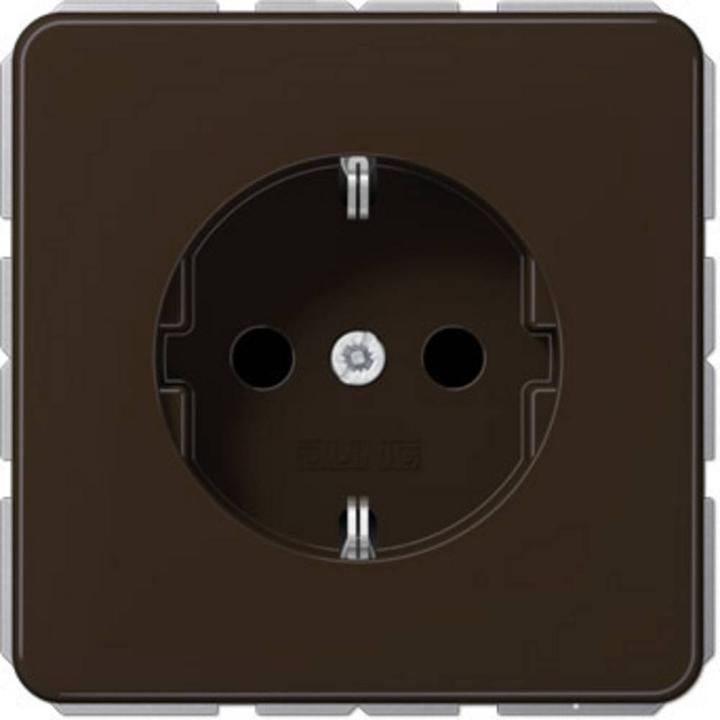

The JUNG SCHUKO socket (CD 1520 BR) is a high-quality built-in socket designed for indoor use. It provides a reliable connection for electrical devices and is equipped with a protective contact that ensures safe operation. This socket is made from duroplastic, a robust and halogen-free material that offers durability and safety. The installation is done flush-mounted, allowing for a clean and aesthetic setup. With a rated voltage of 250 V and a rated current of 16 A, it is suitable for most household applications. The socket features an elegant brown tone that harmoniously fits into various interior styles. The spring clamps enable easy and secure connections for both rigid and flexible conductors up to a cross-section of 2.5 mm². This socket is a practical solution for anyone who values quality and safety.
- Made from halogen-free duroplastic for enhanced safety
- Spring clamps for easy and secure installation
- Suitable for rigid and flexible conductors up to 2.5 mm²
- Flush-mounted for aesthetic integration into walls.
2. JUNG Protective contact socket without claw
Jung Schuko Socket 16A 250V AL 1520 N AN
Manufacturer: Jung
Description: Schuko socket 16A 250V without claws
Type: AL 1520 N AN
Design: Schuko
Protective contact: yes
Round protective earth contact: no
Number of active contacts (round): 2
With signal lamp: no
With built-in USB power supply: no
Number of units: 1
Number of phases: 1
Printing/labeling: none
Connection type: terminal block
With flap cover: no
With increased touch protection: no
Text field/labeling area: no
Color: anthracite
Metallic color: no
Transparent: no
Lockable: no
Ejection mechanism: no
Insulated installation: no
With functional lighting: no
With orientation light: no
Surge protection: no
Residual current protection: no
With fine fuse: no
Special power supply: without special power supply
Mounting type: flush-mounted
Mounting method: screw fastening
Material: metal
Material quality: aluminum
Halogen-free: yes
Surface protection: painted
Surface finish: matte
Antibacterial treatment: no
With on/off switch: no
With pass-through function: yes
Twisted central insert: no
Rated current: 16 A
Rated voltage: 250 V
Suitable for protection class (IP): IP20
Device width: 70 mm
Device height: 70 mm
Device depth: 0 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no
Cover: central plate
For "harsh conditions" (according to VDE): no
Jung Schuko Socket 16A 250V AL 1520 N AN: additional details
Protective contact socket, anthracite (painted aluminum) with spring clamps for rigid and untreated flexible conductors up to 2.5 mm². Connection terminals according to DIN VDE 0620 (screw fastening, without mounting claws). The load ring is integrated into the protective measure via a grounding rail. Material: painted aluminum. Dimensions (W x H): 70 x 70 mm.
