Best Paulimot products in the Protractor category
On this page you'll find a ranking of the best Paulimot products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

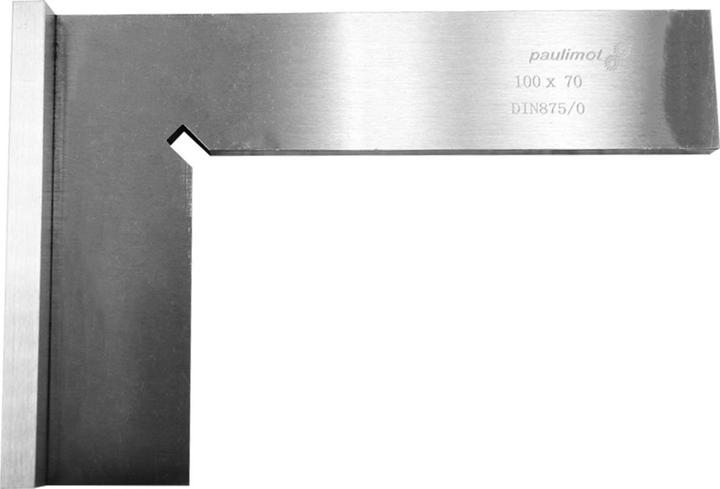

1. Paulimot Anschlagwinkel 90° 100 x 70 mm, DIN 875/1, rostfrei
This angle gauge is manufactured according to DIN 875/1 and represents a 90° angle. Made of stainless steel, it is ground and hardened. With leg lengths of 100 x 70 mm, it can be used for smaller and medium-sized inspection and marking tasks. For practical and proper storage, the angle is supplied in a storage box with a foam insert.

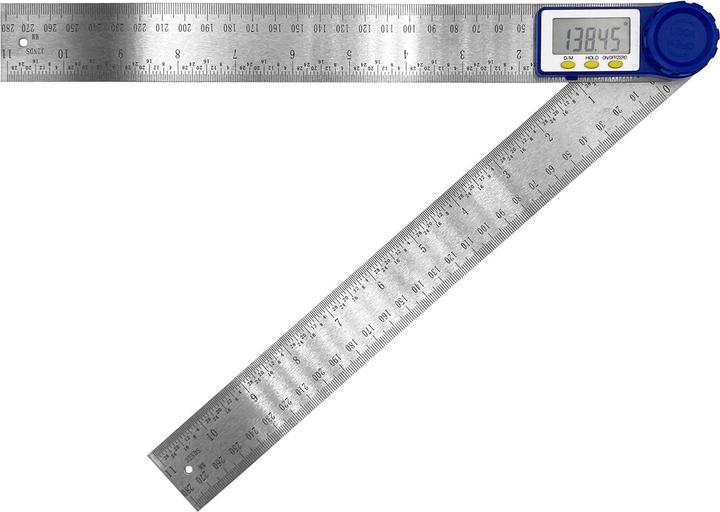

2. Paulimot Winkelmesser digital, 300 mm
With this digital protractor, both interior and exterior angles can be measured and, if necessary, transferred to other workpieces. The laser-etched measuring scales allow for length measurements in mm or inches. To easily transfer a measured angle to a workpiece, the protractor is equipped with a locking button for the measuring arms. The LCD display can show a measured angle in decimal or in degrees and minutes. Measured angles can be saved with the press of a button. A zero setting of the display is possible in any angle position.
Control buttons:
- ON/OFF/ZERO: Power on/off and zeroing
- HOLD: Saves measured values on the display
- D/M: Switches between decimal and minutes.

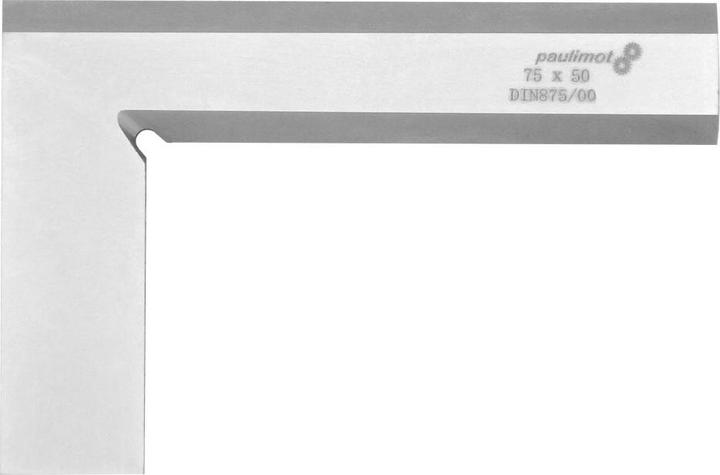

3. Paulimot Präzisions-Haarwinkel 90° 75 x 50 mm, DIN 875/00, rostfrei
This precision hair angle is manufactured according to DIN 875/00 and forms a 90° angle. It is made from hardened stainless steel, and its surface is ground and chrome-plated. With leg lengths of 75 x 50 mm, it is suitable for smaller and medium-sized inspection tasks. For practical and proper storage, the angle is delivered in a storage box with a foam insert.

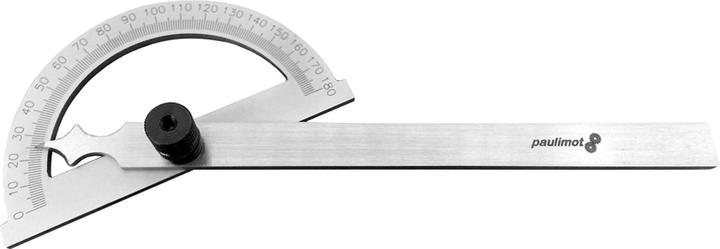

4. Paulimot Winkelmesser 120 x 150 mm
Measuring range: 0 - 180° Scale division: 1° The rail and the angle arc are hardened. Matt chrome-plated for glare-free reading.

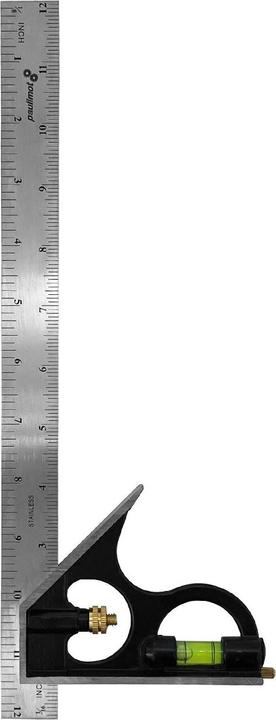

5. Paulimot Kombinationswinkel 300 mm
This combination square made of aluminum is very versatile. It can be used, among other things, as a stop square for 45° and 90°, as a marking gauge, or as a depth gauge. A level bubble is integrated into the body, allowing this square to also function as a small spirit level. Additionally, a small scribe is screwed in, enabling the creation of marking lines without any additional tools. The included 300 mm long stainless steel ruler can be inserted into the combination square and can be fixed in any position using a knurled screw. Both metric and imperial measurement scales are engraved on it.

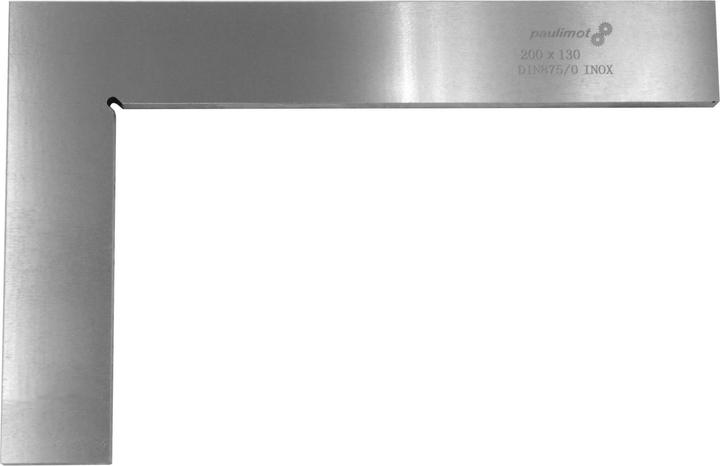

6. Paulimot Flachwinkel 90° 200 x 130 mm, DIN 875/1, rostfrei INOX
This flat angle is manufactured according to DIN 875/1 and forms a 90° angle. Made of stainless steel, this angle is ground and hardened. With leg lengths of 200 x 130 mm, it is suitable for medium to large testing and alignment tasks. For practical and proper storage, the flat angle is supplied in a storage box with foam padding.

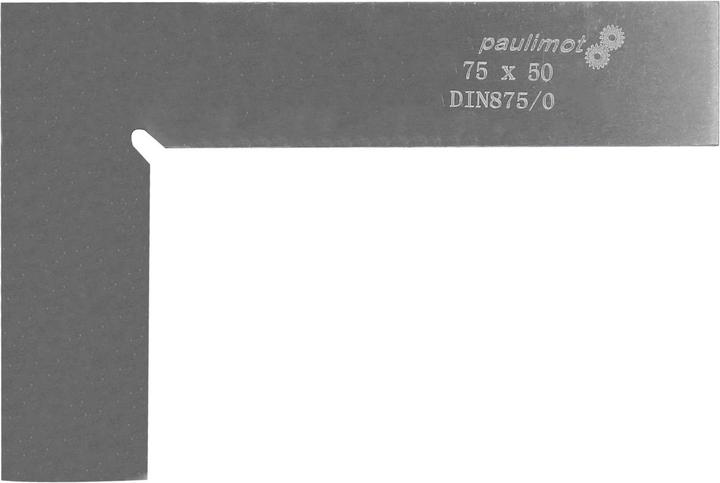

7. Paulimot Flachwinkel 90° 75 x 50 mm, DIN 875/1, rostfrei
This flat angle is manufactured according to DIN 875/1 and forms a 90° angle. Made of stainless steel, this angle is ground and hardened. With leg lengths of 75 x 50 mm, it can be used for smaller and medium testing and alignment tasks. For practical and proper storage, the flat angle is delivered in a storage box with foam padding.

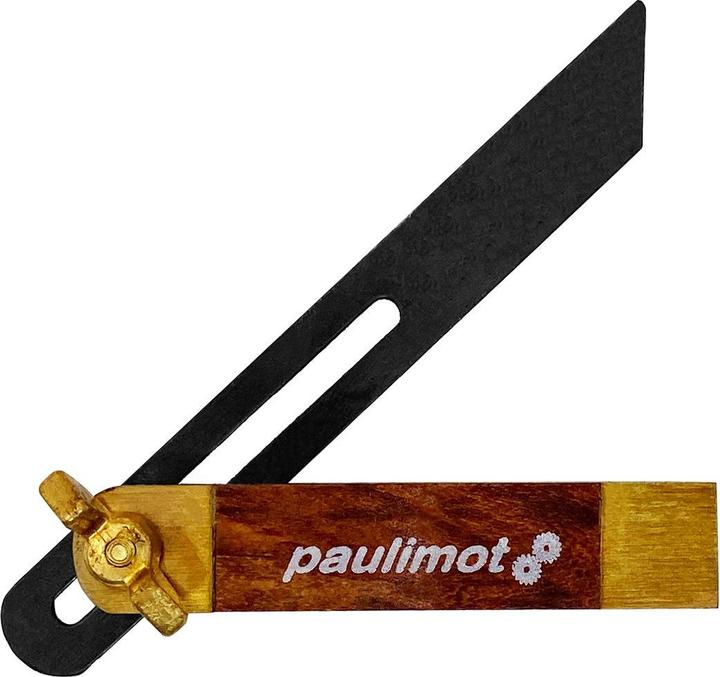

8. Paulimot Tischlerschmiege, 100 mm
The handle of the carpenter's square is made of rosewood and features brass fittings. The tongue, made of spring steel, can be secured with a brass screw. The tongue has a length of 100 mm.
9. Paulimot Kombinationswinkel-Set, 4-teilig, 300 mm
The included 300 mm long steel ruler can be used in combination with the combination square, protractor, and center square. The ruler is adjustable at angles and can be fixed in any chosen position using a knurled screw. It features both metric and imperial measurement scales engraved on it. The combination square, protractor, and center square are made of cast steel and coated with a hammer finish. The contact surfaces are ground.
The combination square from this set is very versatile. It can be used as a stop angle of 45° and 90°, as a marking gauge, or as a depth gauge. A level bubble is integrated into the body, allowing this square to also function as a small spirit level. Additionally, a small scribe is screwed in, enabling the creation of marking lines without additional tools.
The protractor allows for measuring undefined angles and transferring them to other workpieces. The measured or set angle can be fixed using two knurled screws. A level bubble is also embedded in the protractor, allowing it to be used as a spirit level as well.
Using the center square from this set, the center of shafts or circular workpieces with a diameter of up to 90 mm can be determined.

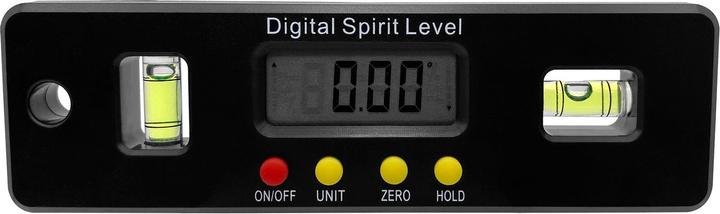

10. Paulimot Winkelmesser digital mit integrierter Wasserwaage, 150 mm
The housing of this angle gauge is made of plastic. This device can display both angle measurements in degrees and slope measurements in percent, mm/m, and inch/ft. It can also switch between absolute and relative measurements. A measured angle can be stored in the LCD display. If the tilt angle of the angle gauge is 90° or more, the display automatically rotates. Thanks to the strong magnets on the bottom of the housing, the angle gauge can be easily and quickly fixed to any metallic surface. Additionally, this angle gauge is equipped with a horizontally and vertically arranged bubble level, allowing it to be used as a spirit level for horizontal and vertical alignment.
Control buttons:
- ON/OFF: Power on and off
- UNIT: Switch (4-way) between angle and slope measurement
- ZERO: Switch between absolute and relative measurement
- HOLD: Stores measured values on the display.
