Best BGS products in the Endoscope camera category
On this page you'll find a ranking of the best BGS products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. BGS Endoskop-Farbkamera
Transportable and mains-independent system for visual inspection of cavities and other hard-to-reach areas. Ideal for use in car repairs or in the sanitary and construction sectors. For creating videos in real time, immediate live viewing via colour monitor. Endoscope camera with LED lighting (6 LEDs), camera probe on flexible gooseneck. Optimum handling thanks to power supply-independent operation.

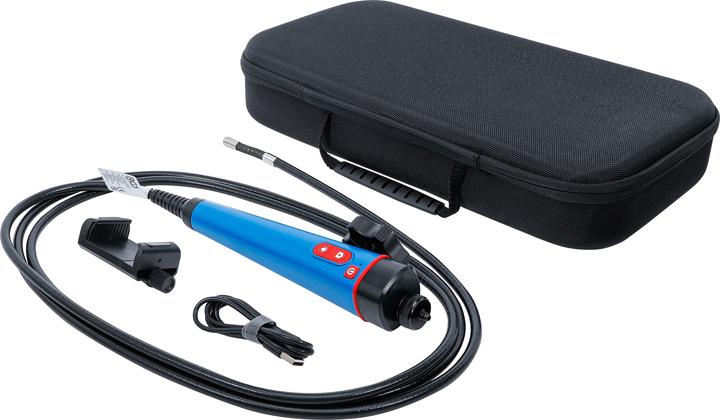

2. BGS WLAN colour endoscope with LED lighting
- Serves for examination of hard-to-reach areas in vehicles and aircraft, household, workshop, and industry.
- Transportable and network-independent system.
- Suitable for devices with Android and iOS operating systems.
- Live image is transmitted directly to the mobile device via WLAN.
- Includes smartphone holder for the end device.
- Continuously swiveling, semi-rigid camera probe (180° laterally swiveling).
- With integrated rechargeable battery.
- Camera diameter: 8 mm.
- Field of view: 60°.
- Focal length: 30 - 80 mm.
- Frame rate: 30 fps.
- Video format: AVI.
- Image format: JPG.
- Gooseneck length: 90 cm.
- Overall length: approx. 125 cm.
- Working temperature: -20 to +60 °C.
Scope of delivery:
- Color borescope.
- Mobile phone holder.
- Charging cable USB-A / Micro-USB.
- Cleaning cloth for camera lens.

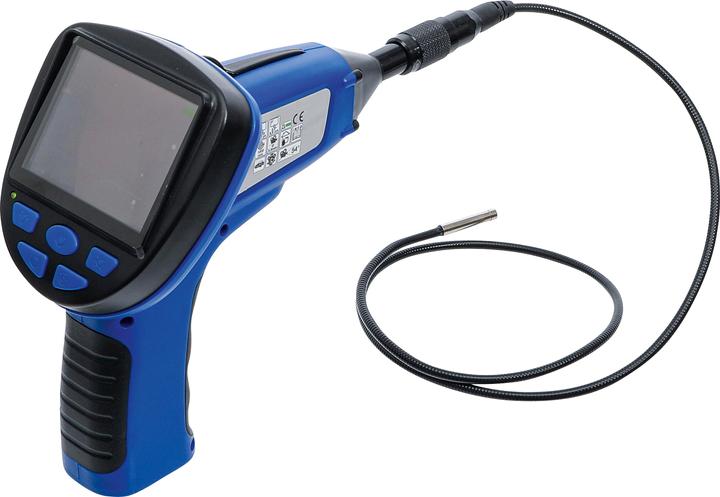

3. BGS Video Borescope with TFT-Display Camera Head Ø 8 mm
for the inspection of hard-to-reach places in vehicles, at home and other areas
also suitable for detecting and lifting falling down screws, nuts, etc. using accessories provided
adjustable lighting in camera head
screen size: TFT LCD 84 mm (3.31 inch)
contrast: 300
brightness: 220 cd/m²
power supply: 4x AA battery 1.5v
work time: max. 6 hours
consumption current: 238 mA
video output impedance: 75 ohm
video signal level: 0.9 - 1.3 Vp-p
imaging sensor: CMOS 2.82 mm (1/9 inch)
effective pixel: 640 x 480
video system: PAL / NTSC
horizontal viewing angle: 48 degrees
waterproof capacity: IP67 (lens and tube only)
tube length: 980 mm
camera diameter: 8 mm
dimensions of handle: 257 x 92 x 44 mm (excl. tube)
operating temperature: -10 °C - 50 °C (14 °f - 122 °f)
relative humidity: 15 - 85%
weight: approx. 407 g (incl. batteries)
scope of delivery:
1 handle with LCD monitor
1 flexible tube
1 hook
1 double hook
1 magnet
1 mirror
2 fixing rings
1 video cable
4 AA batteries 1.5 volts
4. BGS Borescope Colour Camera with LCD Monitor
The endoscope color camera with LCD monitor from BGS is a versatile tool specifically designed for inspecting hard-to-reach areas and cavities. It is used in various fields such as automotive, installation, and mechanical engineering. With its compact design and high functionality, this camera provides a precise and detailed view of objects that are difficult to access with the naked eye. The integrated 90 mm TFT-LCD monitor offers a clear image display, while the adjustable brightness ensures optimal visibility for both the camera and the display. The camera is equipped with a sturdy gooseneck that allows for flexible handling and meets the IP 67 protection class, making it resistant to dust and water. These features make the endoscope camera an indispensable tool for both professionals and hobbyists alike.
- 90 mm TFT-LCD display with 30 levels of adjustable brightness
- Automatic white balance for improved image quality
- Camera angle of 54° for a wider view
- IP 67 protection class for dust and water resistance
- 100 cm long gooseneck for flexible inspections.
