Drill bit insert
CHF749.– CHF749.–/1pcs.
KUB Pentron® indexable insert solid drill with straight shank 5×D
27 millimetres
Best selling Drill bit inserts from Komet
On this page you’ll find a ranking of the best Drill bit inserts from Komet. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Komet KUB Pentron® indexable insert solid drill with straight shank 5×D
The KUB Pentron® indexable insert drill with cylindrical shank from Komet is a highly advanced tool designed for demanding drilling applications. With a drill diameter of 27 millimeters and a working length of 157 millimeters, this drill offers optimal performance and longevity. The special surface treatment and high base body strength ensure excellent dimensional stability, even under extreme machining conditions. The drill is designed to allow for cost-efficient inventory management, as identical internal and external inserts can be used. This reduces the need to stock various inserts and simplifies handling. Additionally, it allows for offset drilling with a maximum offset of 0.25 mm, increasing flexibility in application. The KUB Pentron® is ideal for professional users who require the highest precision and reliability in their machining processes.
- Optimal base body strength for maximum performance and longevity
- Identical internal and external inserts for reduced inventory
- Offset drilling up to V max = 0.25 mm possible
- Drilling tolerance of ⌀D − 0.1 / + 0.35 mm
- Suitable for extreme machining situations with specific inserts.
2. Komet KUB Pentron® indexable insert solid drill 4×D cylindrical shank
The KUB Pentron® indexable insert drill with cylindrical shank from Komet is a highly developed tool designed for demanding drilling applications. With optimal base body strength and a special surface treatment, this drill offers outstanding performance and longevity. It is particularly suitable for extreme machining situations and ensures excellent dimensional accuracy, even under the most challenging conditions. The ability to drill off-axis up to a maximum value of 0.25 mm allows for flexible adaptation to various requirements. Additionally, the use of identical internal and external inserts reduces inventory costs. The drill is available in various diameters and comes with clamping screws, but without indexable inserts. The use of inserts No. 236605 to 236610 expands the tool's application possibilities.
- Optimal base body strength for high performance and longevity
- Best dimensional accuracy under extreme drilling conditions
- Cost-reduced inventory due to identical internal and external inserts
- Off-axis drilling up to V max = 0.25 mm possible
- Suitable for extreme machining situations.
Drill bit insert
CHF629.– CHF629.–/1pcs.
KUB Pentron® indexable insert solid drill 4×D cylindrical shank
4-22 millimetres
3. Komet KUB Trigon® indexable insert solid drill combination shank 3×D
Execution: Offset drilling: diameter-dependent up to 1.5 mm. Special manufacturing process for extremely large chip spaces with maximum rigidity. Specific positioning of the indexable cutting inserts for chip-free drilling and precise dimensional accuracy (±0.1 mm in standard cases). Internal cooling directly at the cutting edges (sophisticated geometry ideal for minimum quantity lubrication). A coolant pressure of 3 − 10 bar is sufficient. Suitable for both stationary and rotating use. Note: Caution! A disc falls off when the drill exits. Risk of injury with rotating workpieces! Please take safety precautions. On request: left-hand cutting; 2×D, other diameters; special designs; torsional vibration dampers for ABS for low-vibration machining, with maximum tool life and minimal noise level. Delivery includes: clamping screws (without indexable cutting inserts). Usage: With indexable cutting inserts No. 236740 − 237080.
Drill bit insert
CHF419.– CHF419.–/1pcs.
KUB Trigon® indexable insert solid drill combination shank 3×D
17 millimetres
4. Komet Base body 8×D
Design: Rigid separation point between the base element and the drill crown. Shaft design in ABS. Process-safe up to 8 (9)×D. Note: Other sizes and spare parts available upon request. Use: For rotating and stationary, as well as vertical and horizontal applications in all materials.
5. Komet KUB Trigon® indexable insert solid drill ABS 50 3×D
Design: Special manufacturing process for extremely large chip spaces with maximum rigidity. Specific positioning of the indexable cutting inserts for burr-free holes and precise dimensional accuracy (±0.1 mm in most cases). Internal cooling directly at the cutting edges (sophisticated geometry ideal for minimum quantity lubrication). A coolant pressure of 3 − 10 bar is sufficient. Suitable for both stationary and rotating applications. Eccentric drilling: diameter-dependent up to 1.5 mm. Note: Caution! A disc falls off upon drill exit. Risk of injury with rotating workpieces! Please take protective measures. Available upon request - left-hand cutting; - 2×D, - other diameters; - special designs - torsional vibration dampers for ABS for low-vibration machining, with maximum tool life and minimal noise level. Delivery includes: Clamping screws (without indexable cutting inserts). Usage: With indexable cutting inserts No. 236740 − 237080.
Drill bit insert
CHF579.– CHF579.–/1pcs.
KUB Trigon® indexable insert solid drill ABS 50 3×D
28 millimetres
6. Komet KUB Pentron® indexable insert solid drill ABS® shank 5×D
The KUB Pentron® indexable insert drill with ABS® shank from Komet is a high-precision tool designed for demanding drilling applications. With a diameter of 40 millimeters and a working length of 243 millimeters, this drill offers excellent performance under stable machine conditions. The special design allows for a drilling tolerance of D − 0.1 / + 0.35 mm, ensuring high accuracy during machining. The drill is compatible with indexable inserts numbered 236605 to 236610 and features innovative technology that allows for axial displacement of up to a maximum value of 0.25 mm. These characteristics make the KUB Pentron® an ideal choice for professional applications in metalworking.
- Drilling tolerance of D − 0.1 / + 0.35 mm for high precision
- Maximum axial displacement up to V max = 0.25 mm
- Achievable maximum diameter of D + 0.5 mm through adjustment
- Suitable for use with indexable inserts No. 236605 − 236610.
Drill bit insert
CHF899.– CHF899.–/1pcs.
KUB Pentron® indexable insert solid drill ABS® shank 5×D
40 millimetres
7. Komet KUB Pentron® indexable insert solid drill 3×D cylindrical shank
The KUB Pentron indexable insert drill from Komet is a highly advanced tool designed for demanding drilling applications. With a diameter of 21 millimeters and a working length of 63 millimeters, this drill offers optimal performance and longevity. The special surface treatment and high base body strength ensure excellent dimensional accuracy, even under extreme machining conditions. The drill is equipped with identical internal and external indexable inserts, making inventory management more efficient. Additionally, the offset drilling allows for a maximum diameter expansion of up to 0.5 millimeters, increasing flexibility in application. The KUB Pentron is ideal for use in challenging machining situations and comes with clamping screws, but without indexable inserts. It is compatible with various insert numbers, further enhancing the tool's adaptability.
- Optimal base body strength for high durability
- Identical internal and external indexable inserts for reduced inventory
- Offset drilling allows for V max = 0.25 mm
- Maximum diameter expansion of D + 0.5 mm
- Suitable for extreme machining situations.
Drill bit insert
CHF509.– CHF509.–/1pcs.
KUB Pentron® indexable insert solid drill 3×D cylindrical shank
21 millimetres
8. Komet KUB Centron® drill bit
Design: Process-safe up to 8 (9)×D. Centering through a centering tip and guide pins. Rigid separation between the base element and the drill crown. The diameter of the guide pins is matched to the indexable cutting insert with 0.4 mm corner radii. For through holes, the diameter of the guide pins can be adjusted with spacer films. Delivery includes: Drill crown including guide pins (replacement guide pin No. 236658). From a diameter of 65 mm with indexable cutting insert cartridges (indexable cutting insert cartridge adjustable +1 mm in diameter). Usage: For rotating and stationary as well as vertical and horizontal use in all materials. With centering tip No. 236655 − 236657. With indexable cutting insert No. 236740 − 237080.
9. Komet KUB Pentron® indexable insert solid drill ABS® shank 4×D
The KUB Pentron® indexable insert drill with ABS® shank from Komet is a high-precision tool designed for demanding drilling applications. With a diameter of 38 millimeters and a point angle of 180 degrees, this drill offers excellent performance when machining materials. The design allows for a drilling tolerance of D − 0.1 / + 0.3 mm, ensuring high accuracy and flexibility in application. The drill is compatible with indexable inserts from serial numbers 236605 to 236610 and can be used under stable machine conditions. The capability for axial offset drilling up to a maximum offset of 0.25 mm expands the tool's application possibilities. Additionally, by adjusting, a maximum diameter of D + 0.5 mm can be achieved, further enhancing the versatility of the drill.
- Drilling tolerance of D − 0.1 / + 0.3 mm for precise applications
- Maximum axial offset of 0.25 mm allows for flexible drilling
- Suitable for indexable inserts from serial numbers 236605 to 236610
- Maximum diameter through adjustment of D + 0.5 mm
- Available in various designs upon request, including PSC shank.

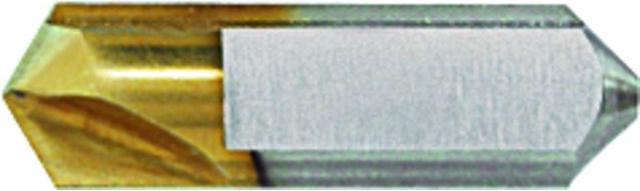

10. Komet KUB Centron® Centre point HSS TiN
The KUB Centron® centering point HSS TiN from Komet is a high-precision centering drill specifically designed for machining steel and aluminum. With a diameter of 10 millimeters, this drill offers excellent performance and accuracy when drilling center holes. The use of HSS TiN (high-speed steel with titanium nitride coating) ensures improved wear resistance and a longer tool life. The TiN coating reduces friction and allows for more efficient heat dissipation, resulting in higher cutting speeds and better surface quality. This centering drill is ideal for applications in metalworking and is suitable for both professional and industrial use. The KUB Centron® centering point simplifies the initial drilling process and ensures precise results, making it an indispensable tool for professionals in metal processing.
