Best selling Door hinges from Simonswerk
Here you’ll find the best Door hinges from Simonswerk. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular Simonswerk options. This page always stays fresh and updates automatically.
1. Simonswerk Tectus TE 240 3D
Object hinges Tectus TE 240 3D F1-coloured coated, 155 mm.

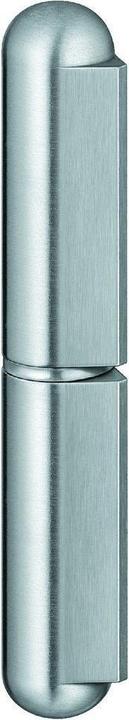

2. Simonswerk Profile roller KO 50 ER Tape length 150 mm Stainless steel Pin Ø 13 mm
2-piece profile roller made of stainless steel with a round head. It features a stainless steel pin and a running surface designed for welding.
Door hinge
CHF37.90
Simonswerk Profile roller KO 50 ER Tape length 150 mm Stainless steel Pin Ø 13 mm

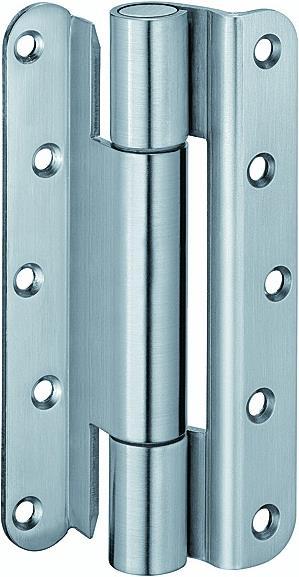

3. Simonswerk Object tapes VN 1939
The VN 1939 object hinges from Simonswerk are high-quality door fittings specifically designed for rebated, overlay doors on block frames and face frames. These hinges are suitable for both left and right applications, providing a reliable solution for use in various door systems. The construction includes internal, twist-proof screw pins as well as concealed, maintenance-free axial-radial sliding bearings equipped with large bearing surfaces. These features ensure high stability and durability, while the use of countersunk screws with a diameter of 5 mm allows for easy installation. The object hinges are made of robust steel and have a nickel-plated surface that is not only aesthetically pleasing but also offers additional protection.
- Suitable for rebated, overlay doors on block frames and face frames
- Maintenance-free axial-radial sliding bearings for high durability
- Maximum leaf weight of 120 kilograms
- Various mounting options due to left and right usable construction.
4. Simonswerk Tectus TE 340 3D
Object hinges Tectus TE 340 3D stainless steel look, 160 mm.
5. Simonswerk Baka C 1-20/C 2-20 WF
The BAKA C 1-20 WF concealed hinge from Simonswerk is a high-quality solution for wooden entrance doors. It features a 3-part system equipped with a loose pin, a roller length of 86 mm, and a roller diameter of 20 mm. This product is suitable for both left and right-hand hinged doors and includes a pin security feature that is particularly advantageous for doors that open outward. The maintenance-free sliding bearing technology ensures smooth operation and durability of the hardware. Made from galvanized steel, the concealed hinge is robust and designed for a maximum leaf weight of up to 100 kg. It is an ideal choice for those who value quality and reliability.
- 3-part system with loose pin
- Maintenance-free sliding bearing technology
- Pin security for added safety
- Suitable for left and right-hand hinged doors
- Maximum leaf weight of 100 kg.
6. Simonswerk Aufnahmeelemente VX 7501 3D
The VX 7501 3D mounting elements from Simonswerk are specially designed for use on block frames with rebated and non-rebated doors. These door fittings offer three-dimensional, infinitely variable adjustability, which enables precise adjustment in three directions: laterally, in height and in pressure. With an adjustment range of +/- 3 mm in each case, the elements can be optimally adapted to the respective conditions. Manufactured from galvanised steel, the mounting elements guarantee high stability and durability, making them ideal for use in demanding environments. The VX 7501 3D are suitable for Variant hinges in sizes 100, 120 and 160 mm and can support a maximum sash weight of up to 200 kilograms. These properties make the mounting elements a reliable choice for professional applications. Infinitely adjustable in three dimensions: +/- 3 mm in height, side and contact pressure. Suitable for Variant hinges in sizes 100, 120 and 160 mm. Maximum sash weight of 200 kilograms. Made of galvanised steel for increased stability and durability.
7. Simonswerk Front door hinge Siku 3D K 3030 steel white 120 kg Pin retention: yes PVC-U front doors
For plastic front doors with angular bolt fastening for overlap thicknesses of 15-19 mm. Usable for DIN left/right. The roller length is 105 mm with a roller diameter of 24 mm. Features three-dimensional adjustability and maintenance-free sliding bearing technology, as well as an integrated safety device with a pin.
Additional technical features include a load capacity of up to 120 kg.
Contents: 3 pieces per carton.
Door hinge
CHF109.80
Simonswerk Front door hinge Siku 3D K 3030 steel white 120 kg Pin retention: yes PVC-U front doors

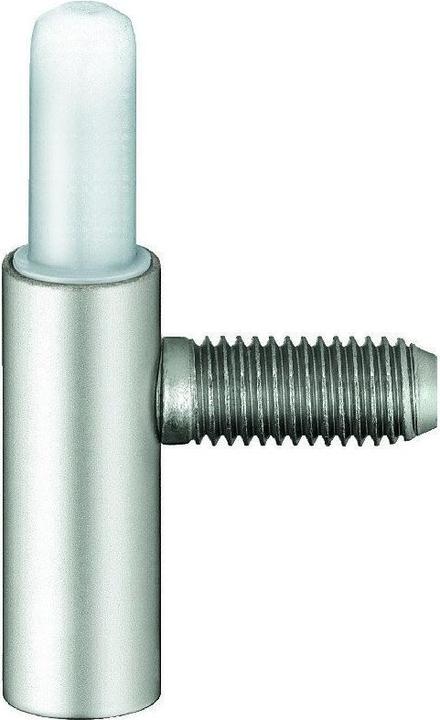

8. Simonswerk Frame part VARIANT V 8100 WF U
The VARIANT V 8100 WF U frame part from Simonswerk is a high-quality solution for installation on rebated and non-rebated doors that are installed on steel frames. This door fitting element is characterised by its maintenance-free design and is specially designed for use with M10 blind rivet nuts. With a roller Ø of 15 mm, it offers reliable functionality and is suitable for a maximum sash weight of up to 60 kg with the corresponding number of hinges. The hinge direction is suitable for both DIN left and DIN right, allowing for flexible application. Manufactured from nickel-plated steel, it combines durability with an attractive design.
- Maintenance-free design for long-term use
- Suitable for rebated and non-rebated doors
- Maximum sash weight of 60 kg with 3 hinges
- Use with M10 blind rivet nut
- Flexible use for DIN left and right.
Door hinge
−20%
only 1 of 3 remaining on sale
CHF4.30 was CHF5.40
Simonswerk Frame part VARIANT V 8100 WF U

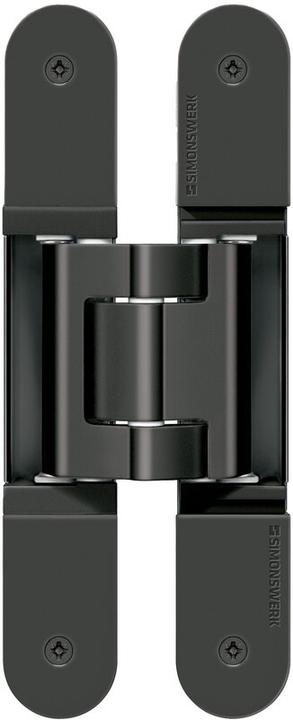

9. Simonswerk Türband TECTUS TE 540 3D A8, schwarz
The TECTUS TE 540 3D A8 hinge from Simonswerk is specifically designed for flush doors and offers an elegant, concealed installation on wooden or steel frames. These door fittings are characterized by their maintenance-free sliding bearing technology, which ensures smooth functionality. With a maximum opening angle of 180°, they allow for flexible use and are suitable for both left and right door hinges. The identical milling for the frame and leaf parts ensures easy installation and adjustment. Additionally, the hinges are three-dimensionally adjustable, allowing for precise adjustments in height, width, and pressure. These features make the TECTUS TE 540 3D A8 an ideal choice for object and functional doors with overlays up to 8 mm.
- Maintenance-free sliding bearing technology for long-term reliability
- Maximum opening angle of 180° for flexible use
- Three-dimensional adjustability in height, width, and pressure
- Identical milling for frame and leaf parts for easy installation
- Suitable for leaf weights of up to 100 kg.

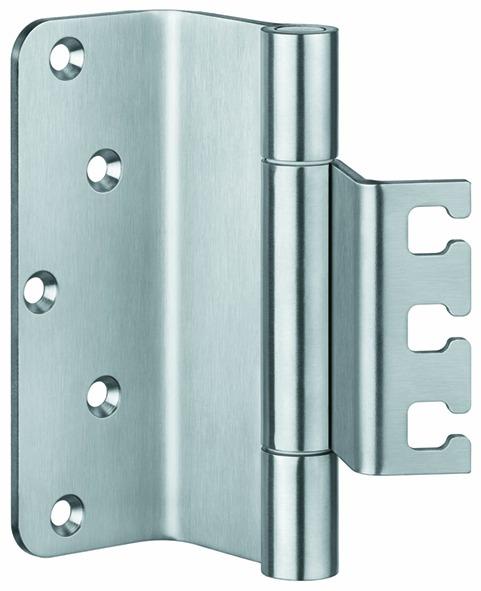

10. Simonswerk VARIANT VX 7749/160-4 Care object belts
The Variant VX 7749/160-4 Care hinge from Simonswerk is specifically designed for use in care facilities. It provides a reliable solution for door hardware and ensures unobstructed access throughout the frame's reveal. These hinges are suitable for unrebated doors and can be mounted on wooden, steel, and aluminum frames. The 3D adjustable mounting elements VX allow for precise adjustment and installation. The use of high-quality materials, such as brushed stainless steel, ensures durability and an appealing appearance. With a maximum leaf weight capacity of 100 kilograms, these hinges are robust and suitable for intensive use in public and commercial areas.
- Suitable for wooden, steel, and aluminum frames
- 3D adjustable mounting elements for easy adjustment
- Maximum leaf weight capacity of 100 kilograms
- Made from brushed stainless steel for durability.
