Best FritsJurgens products in the Door fittings category
On this page you'll find a ranking of the best FritsJurgens products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. FritsJurgens Zapfenbänder TP-70-B Türgewicht -150kg Z
The TP-70-B pivot hinge from FritsJurgens is a high-quality door fitting known for its versatility and functionality. Made from stainless steel A2, this top pivot hinge provides a durable and reliable solution for pivot doors. With a distance of 70 mm from the door edge, it optimizes space and allows for an elegant, distinctive movement of the door. The design permits flexible installation in any position from 70 mm to the door center, making it easier to install on various door types. This product is ideal for applications where both aesthetics and functionality are required.
- Made from stainless steel A2 for high durability
- Optimizes space with a distance of 70 mm from the door edge
- Allows for an elegant, distinctive movement of the pivot door
- Flexible installation from 70 mm to the door center.

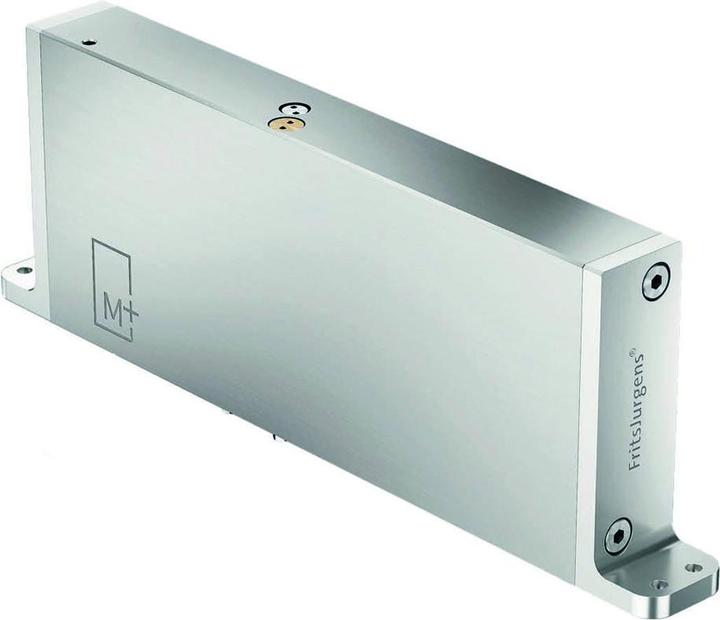

2. FritsJurgens Pivot-Türbänder Sys. M32+/ B, 70mm
For pivot and flush doors, the upper and lower pivot hinges are invisibly milled into the door. It features maintenance-free moving parts and is suitable for door thicknesses starting from 40 mm. The hinge can be installed later, as no structural modifications are required. It is also compatible with underfloor heating. All functions and adjustment options are integrated into the hinge.
Fully customizable door movement
Thanks to opening damping, 30° speed control, and end stop, the movement of the M+ system is completely adjustable.
Perfect latching
The end stop function ensures that doors with locks always close correctly. Ideal for pivot doors in outdoor areas.
Small to oversized doors
The M+ system is suitable for light and heavy doors weighing between 80 kg and 500 kg, providing maximum design freedom.
The maximum door height depends on the door material and maximum door weight. The doors have been tested with 1,000,000 door cycles.

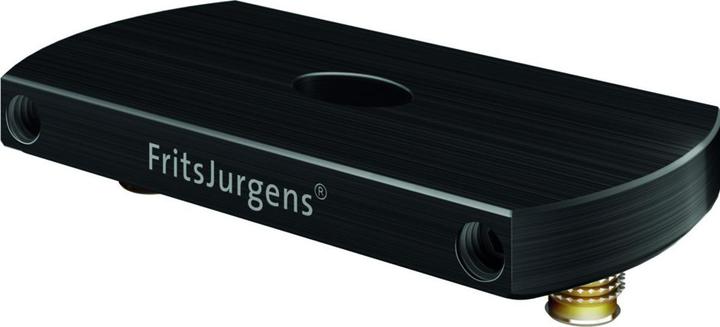

3. FritsJurgens Bodenplatten, schwarz 80x40x9mm
Rustproof, 2 additional pins are supplied with each base plate. Ideal for floors with expansion joints.
4. FritsJurgens Pivot-T+AMMAvA-rb+AMMApA-nder One / G 40mm, ES matt
The new System One is only 18 mm high, making it significantly flatter than the previous model. It is designed for doors with a pivot point of 40 mm and can be combined with the upper pivot hinge of 40 mm. Despite the new, sleeker design, the hinge can still be used for doors weighing up to 500 kg. For swing and pivot doors, the upper and lower pivot hinges are invisibly recessed into the door, featuring maintenance-free moving parts, suitable for door thicknesses starting at 40 mm. It can be retrofitted without requiring any structural modifications and is also compatible with underfloor heating.
Compact
System One functions as a single pivot point without fixed positions or automatic closing mechanisms. It is a simple, small, yet versatile pivot hinge.
Free-swinging
Thanks to the simplicity of System One, free-swinging pivot doors can be easily combined with door frames.
For swing and pivot doors
Due to the free rotational movement of System One, this pivot hinge can be used in pivot doors with and without stops.
The maximum door height depends on the door material and maximum door weight. The doors have been tested for 1,000,000 door cycles.
5. FritsJurgens Pivot-Türbänder Sys. M32/ B, 70mm
For pivot and swing doors. The upper and lower pivot hinge is invisibly milled into the door and features maintenance-free moving parts. It is suitable for doors with a thickness of 40 mm and can be retrofitted without the need for structural modifications. The system is also compatible with underfloor heating. All functions and adjustment options are integrated into the hinge.
Controlled door movement: With Damper Control, System M offers adjustable closing damping and hydraulic opening damping, ensuring smooth door movement.
Self-closing and hold-open positions: System M is self-closing and has hold-open positions at 0°, 90°, and -90°. This way, you can determine the spatial effect of the door.
For swing and pivot doors: System M is suitable for almost any type of pivot door. Doors with or without a stop, interior and exterior doors, with or without a door frame.
The maximum door height depends on the door material and maximum door weight. The doors have been tested for 1,000,000 door cycles.
6. FritsJurgens Paumelle de porte System M32 / 70 mm Version C
Pivot hinge system M32 / 70 mm version C. For swing and flush doors, the upper and lower pivot hinge is invisibly milled into the door, featuring maintenance-free moving parts, suitable for door thicknesses starting at 40 mm, and can be retrofitted as it requires no structural modifications, making it compatible with underfloor heating. All functions and adjustment options are integrated into the hinge. Controlled door movement. With Damper Control, system M features adjustable closing damping and hydraulic opening damping, resulting in a smooth door movement. Self-closing and hold-open positions. System M is self-closing and has hold-open positions at 0°, 90°, and -90°. This way, you can determine the spatial effect of the door. Suitable for flush and swing doors. System M is suitable for almost any type of pivot door. Doors with or without a stop, interior and exterior doors, with or without a door frame. The maximum door height depends on the door material and maximum door weight. The doors have been tested for 1,000,000 door cycles.
7. FritsJurgens Pivot-Türbänder Sys. M32+/ E, 70mm
For pivot and hinged doors, the upper and lower pivot hinges are invisibly milled into the door. It features maintenance-free moving parts and is suitable for door thicknesses starting from 40 mm. The hinge can be installed retroactively, as no structural modifications are required, and it is also compatible with underfloor heating. All functions and adjustment options are integrated into the hinge.
The door movement is fully customizable. Thanks to opening damping, 30° speed control, and end stop, the movement of the M+ system is completely adjustable. The end stop function ensures that doors with locks always close correctly, making it ideal for pivot doors in outdoor settings.
The M+ system is suitable for light and heavy doors weighing between 80 kg and 500 kg, providing maximum design flexibility. The maximum door height depends on the door material and maximum door weight. The doors have been tested for 1,000,000 door cycles.
8. FritsJurgens Pivot-Türbänder Sys. 3/ E, 70mm
For swing doors, the upper and lower pivot hinge is invisibly milled into the door. It features maintenance-free moving parts and is suitable for doors with a thickness of 40 mm or more. The hinge can be retrofitted as no structural modifications are required. It is also compatible with underfloor heating. All functions and adjustment options are integrated into the hinge. From an opening angle of approximately 45 degrees, the door automatically continues to rotate to the 90-degree position. The opening angle gradually increases between 0 and 45 degrees. The upper pivot hinge is available optionally with or without cable routing.
System 3 offers a 360° rotational movement along with features such as self-closing and fixed stop positions. From any 45° angle, System 3 automatically swings into the fixed stop positions of 0°, 90°, 180°, or 270°.
The 360° rotation combined with the fixed stop positions and the automatic closing function are ideal characteristics for movable walls. The maximum door height depends on the door material and maximum door weight. The doors have been tested for 1,000,000 door cycles.
9. FritsJurgens Bodenplatten Flush rechteckig, 80x40x11m
The Flush floor plate from FritsJurgens is a high-quality door fitting designed for flush installation in the floor. Made of stainless steel, it features an anodized polished surface that is extremely corrosion-resistant and weatherproof. With a sleek design that requires only 5 mm of space under the door, the floor plate integrates seamlessly into modern architecture. It is equipped with four 8 mm pins that ensure secure fastening. This floor plate is specifically designed for hinged doors of the M system and offers an ideal solution in combination with Athmer recessed thresholds. The designs are available in rectangular and rounded shapes to meet various aesthetic requirements.
- Stainless hardened for durability
- Anodized polished surface for corrosion resistance
- Flat design with only 5 mm space under the door
- Suitable for hinged doors of the M system.
10. FritsJurgens Pivot-Türbänder Sys. 3/ AA, 70mm
For pivot doors, the upper and lower pivot hinges are invisibly milled into the door, featuring maintenance-free moving parts. It is suitable for doors with a thickness of 40 mm and can be retrofitted since no structural modifications are required. It is also compatible with underfloor heating. All functions and adjustment options are integrated into the hinge. From an opening angle of approximately 45 degrees, the door automatically continues to rotate to the 90-degree position. The opening angle increases gradually between 0 and 45 degrees. The upper pivot hinge is available optionally with or without cable passage.
System 3 offers a 360° rotational movement along with features such as self-closing and locking positions. From any 45° angle, System 3 automatically swings into the locking positions of 0°, 90°, 180°, or 270°. The 360° rotation combined with the locking positions and the automatic closing function are ideal characteristics for movable walls.
The maximum door height depends on the door material and maximum door weight. The doors have been tested for 1,000,000 door cycles.
