Best selling Dial gauges + micrometers from Sylvac
This page always stays fresh and updates automatically.
1. Sylvac Dial test indicator
The Sylvac feeler gauge is a precise measuring instrument designed for a variety of applications in industry and craftsmanship. With an accuracy of ± 0.8/2.0 micrometers and a resolution of 0.001 millimeters, it allows for exact measurements. The polyamide housing ensures durability and robustness, while the swiveling measuring probe with a carbide ball of Ø 2 mm offers flexible handling. The integrated Bluetooth® technology enables wireless data transmission, making it easier to use in modern work environments. The LCD display is rotatable by 360° and provides clear readability of the measurement values. Additionally, the device features functions such as zeroing, switching between millimeters and inches, as well as MAX/MIN/DELTA functions, highlighting the versatility of the measuring instrument. The feeler gauge comes in a practical transport case and includes a test report and a clamping shank of Ø 8 mm.
- Integrated Bluetooth® technology for wireless data transmission
- 360° rotatable LCD display for optimal readability
- Swiveling measuring probe with carbide ball for flexibility
- Versatile functions such as MAX/MIN/DELTA and zeroing.
2. Sylvac Set of internal micrometers Bluetooth®
Sylvac Internal Micrometer Set Xtreme SXT3D BT Bluetooth Data Transmission, 20...50 / 0.001 / IP67
3-Year Warranty
Xtreme 3 BT - Equipped with interchangeable measuring heads for the toughest working conditions. Oil splashes, cooling lubricants, and casting dust do not affect the measurement. Can be used for measurements in through holes as well as in blind holes (from Ø 12.5 mm). The measuring inserts are hardened, ground, and coated with carbide from Ø 10 mm.
Features:
LCD Display
SET (sets the display to zero)
Max/min function
REF (reference)
HOLD (freeze display)
TOL (tolerance input)
Conversion mm/inch
Bluetooth data transmission + proximity
Scope of delivery:
Delivered in a case with measuring element, measuring heads, and rings with UKAS certificate.
Note:
The accuracy specifications assume that the measuring surfaces are fully in contact.

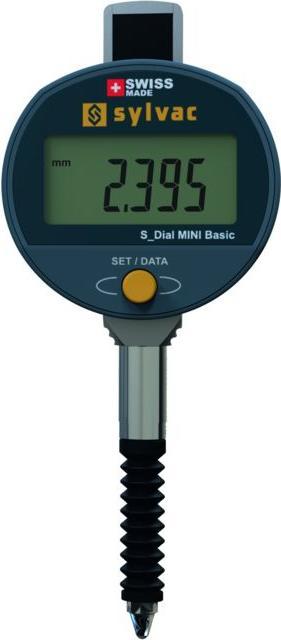

3. Sylvac Small dial gauge reading 0.001 mm
The Sylvac small measuring clock is a highly precise measuring instrument specifically designed for applications that require exact measurements. With a reading of 0.001 mm, this digital measuring clock offers exceptional accuracy that is significant for professionals in various technical fields. The compact housing with a diameter of 45 mm and the patented inductive measuring system ensure reliable performance and a long battery life of over 3500 hours. The measuring clock is versatile and offers various functions, including ABS and relative mode, as well as the option for presetting. The additional dovetail guide on the back allows for easy handling and precise positioning during the measuring process. This measuring clock is an essential tool for anyone who values accuracy and reliability.
- Patented inductive measuring system for high precision
- Battery life of over 3500 hours
- Versatile functions: ABS and relative mode, PRESET
- Additional dovetail guide for easy handling.

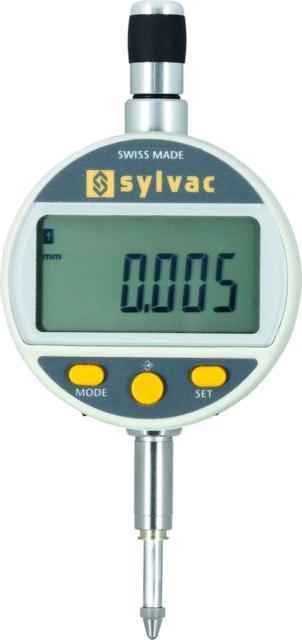

4. Sylvac Digital dial gauge reading 0.001 mm
The digital dial gauge from Sylvac offers precise measurements with a reading of 0.001 mm. It is housed in a robust aluminum casing and features a large display area with a digit height of 11 mm, making it easier to read the values. The gauge is equipped with an absolute system that allows for zero setting at any position, simplifying the comparison of measurement values. Practical features include a power-saving mode, automatic reactivation, and the ability to store two reference values. The gauge supports various measurement modes such as Min/Max/Delta and offers a preset for individual values. Additionally, a customizable button can be used for a selectable function, increasing flexibility in use. The delivery includes a battery, so the gauge is ready to use immediately.
- Robust aluminum casing for durability
- Large display area with 11 mm digit height
- Zero setting at any position for easy comparison
- Two storable reference values for flexible use
- Customizable button for individual functions.
5. Sylvac Micrometer S Mike EVO Smart Bluetooth®
The Sylvac S Mike EVO Smart Bluetooth® caliper is a high-precision measuring instrument designed for professional applications. With a measuring range of 0 to 25 millimeters and an accuracy of 0.002 millimeters, this device delivers excellent performance for precise measurements. The XXL LCD display ensures clear readability, while features such as auto-on with movement and the ability to switch between millimeters and inches enhance user-friendliness. The carbide measuring surfaces guarantee a long lifespan and high durability. Thanks to Bluetooth® functionality, measurement data can be easily transmitted and stored, increasing efficiency in use. The caliper is also protected to IP67 standards, making it resistant to dust and water, and comes in a practical case with a test report.
- XXL LCD display for optimal readability
- Bluetooth® data output for easy data transfer
- Auto-on function with movement for immediate use
- IP67 protection class for dust and water resistance.
6. Sylvac Micrometer S Mike PRO Bluetooth®
The Sylvac S Mike PRO Bluetooth® caliper is a high-precision measuring instrument specifically designed for professional applications. With a measuring range of 0 to 30 millimeters and a resolution of 0.001 millimeters, it provides accurate measurements suitable for various industrial requirements. The non-rotating measuring spindle with quick adjustment allows for easy handling and precise measurements. The carbide measuring surfaces ensure high durability and resistance. Thanks to its IP67 protection rating, the device is dust and waterproof, making it ideal for use in demanding environments. The digital LCD display ensures clear readability of the measurement values, while the Bluetooth® functionality enables easy data transfer. The caliper comes in a practical case and is equipped with a calibration certificate, highlighting its quality and accuracy.
- Bluetooth® function for easy data transfer
- IP67 protection rating for dust and water resistance
- Non-rotating measuring spindle for precise handling
- LCD display with auto-on and standby function.

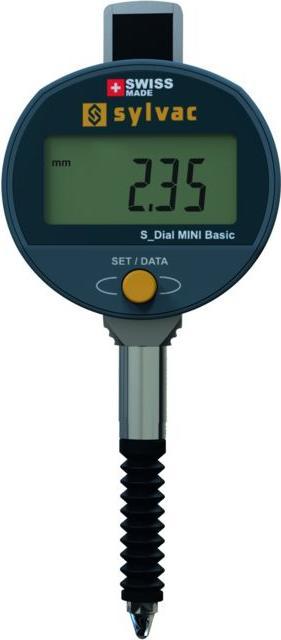

7. Sylvac Small dial gauge reading 0.01 mm
The small measuring gauge from Sylvac is a high-precision measuring instrument specifically designed for applications requiring exact measurements. With a reading of 0.01 mm, this digital gauge allows for precise measurement of dimensions in the range of 12.5 mm. The patented inductive measuring system ensures reliable and consistent performance, while the IP67 protection rating safeguards the device against dust and water, making it ideal for use in demanding environments. The gauge is equipped with an RS232C interface for easy data transfer. Its long battery life of over 3500 hours ensures that the device remains reliable even with intensive use. The additional dovetail guide on the back provides enhanced stability and handling during the measurement process.
- Patented inductive measuring system for high precision
- IP67 protection rating for dust and water resistance
- RS232C interface for easy data transfer
- Long battery life of over 3500 hours
- Additional dovetail guide for improved stability.
8. Sylvac Measuring insert M1.4
SYLVAC Insert with carbide ball, Ø 1 / M1.4 x 36.5
For dial test indicators.

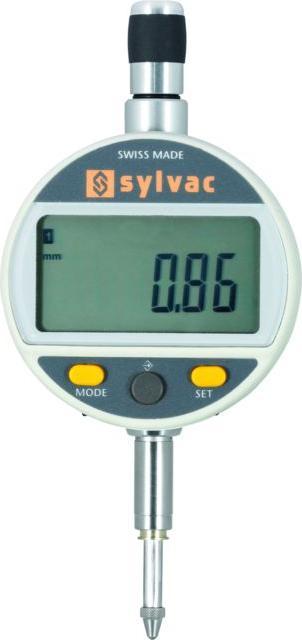

9. Sylvac Digital dial gauge reading 0.01 mm
The digital dial gauge from Sylvac offers precise measurements with a reading of 0.01 mm. It is housed in a robust aluminum casing that ensures both durability and user-friendly handling. The large display with a digit height of 11 mm allows for clear and easy reading of values. The gauge features numerous functions, including a power-saving mode that conserves battery life, as well as the ability to set the zero point at any position, significantly facilitating the comparison of measurement values. Additionally, two reference values can be stored, increasing flexibility in use. The customizable button allows for quick selection of a preferred function, while the counting direction reversal provides further adjustment options.
- Robust aluminum casing for high durability
- Power-saving mode and automatic restart for energy conservation
- Zero setting at any position for easy measurement comparison
- Memory function for two reference values
- Customizable button for individual function settings.
10. Sylvac Micrometer S Mike PRO Proximity
Sylvac External Micrometer S_Mike PRO Proximity, 0...30 / 0.001 / Ø 6.5 / IP67
Swiss quality - 3 years warranty. Non-rotating measuring spindle with quick spindle adjustment. Carbide-coated measuring surfaces.
Variants:
Set with 3 external micrometers (0...102 mm) including setting gauges 50 / 75 mm.
Features:
LCD display, standby functions, automatic activation upon motion detection and position memory, mm/inch switching, adjustable measuring force (depending on model), data transmission via proximity or Bluetooth (depending on model).
Scope of delivery:
Delivered in a case including factory certificate.
Suitable batteries: 1 piece CR2032 / 3.0 V (included).
Measuring surface standard.
