Best Studer 1883 products in the Charge controller category
On this page you'll find a ranking of the best Studer 1883 products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Studer 1883 Studer VarioString VS120
The VarioString meets the highest requirements to help solar systems achieve their best efficiency. It allows PV string voltages of up to 900V or 2 x 600V. The interconnection of PV modules into strings leads to considerable savings in system costs. The two independent, isolated MPPT inputs allow the connection of different PV strings with varying voltages, currents, and orientations, enabling a wider range of applications. Thanks to the galvanic isolation, all possible grounding systems of PV and battery are feasible.
Product features and performances:
- Easy installation, saving labor time, connection material, junction boxes, fuses, and cables.
- String voltages up to 900V or 2 x 600V.
- Optimal use with different PV fields (easy connection with SUNCLIX connectors).
- Full protection against wrong connections.
- PV grounding fault detection.
- Fast and precise MPPT algorithm allows power yield better than 99%.
- World's best efficiency for isolated controllers over 98%.
- 7kW per unit; up to 15 VarioString can be connected in parallel for a total of 105kW.
- Low self-consumption of less than 1.2W in night mode.
- 4-stage charger for longer battery life.
- Status and current display with 9 LEDs.
- Optimal use in an Xtender system with synchronized battery management.
- Internet access with Xcom-LAN or Xcom-GSM (optional).
- Comprehensive display, programming, and data logging with the RCC-02/-03 SUNCLIX (Phoenix Contact "tool free").
Dimensions: 133 x 322 x 466 mm
Weight: 7.5 kg.

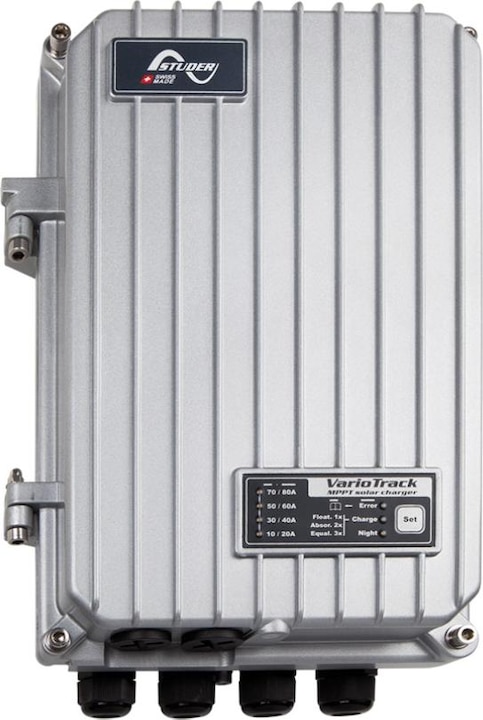

2. Studer 1883 Studer VarioTrack VT-80
VarioTrack series
The VarioTrack solar charge controller meets the highest industry standards, is fully flexible and programmable, and thus achieves optimal performance from the solar installation. When connected to the solar panels and the battery, the VarioTrack automatically and optimally charges the batteries with all available solar energy thanks to a sophisticated algorithm that searches for the maximum power point tracking (MPPT). The maximum power point tracking continuously searches the solar generator for the optimal voltage to retrieve the maximum available power. This operating point varies constantly depending on the external conditions (solar radiation, temperature) to which it must adapt.
Nominal voltage of battery:
- VT-80: 12V, 1250W, 80 VDC, 80 A
- 24V: 2500W, 150VDC
- 48V: 5000W, 150VDC
Product features and performances:
- Ensures optimal energy use
- Tracking efficiency: >99%
- Efficiency: 98%
- 4-stage charger for longer battery life
- 8 predefined standard battery charging curves
- Free programming of the battery charging curve with the RCC-02/-03
- Low self-consumption: < 1W in night mode
- Protection against incorrect connection
- Protection against reverse polarity
- Fully configurable IP54 housing
- Comprehensive display, programming, and data logging with the RCC-02/-03
- Up to 15 VarioTracks can be connected in parallel on the same communication bus
- Compatible with all solar systems
- Optimal use in an Xtender system with a synchronized battery management model
Dimensions (L/W/H) [mm]:
- VT-80: 120/220/350
- Weight: 5.5 kg
General information about batteries can be found under: Things to know about batteries. General information about charging batteries can be found under: Things to know about charging batteries. General information about solar technology can be found under: Things to know about solar technology.

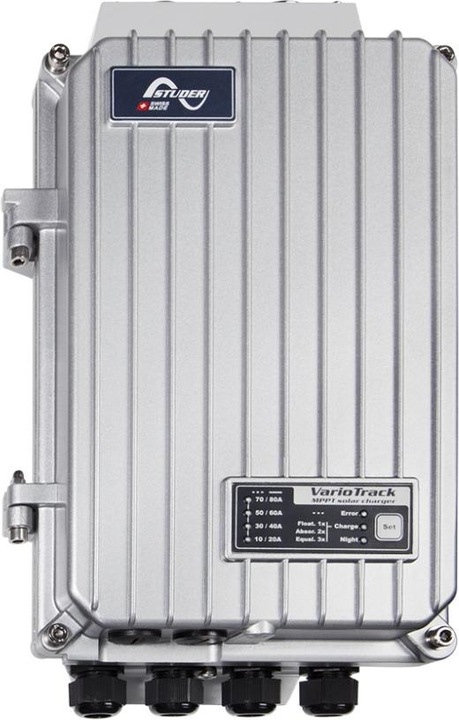

3. Studer 1883 Studer VarioTrack VT-65
VarioTrack series
The VarioTrack solar charge controller meets the highest industry standards, is fully flexible and programmable, and thus achieves optimal performance from the solar installation. When connected to the solar panels and the battery, the VarioTrack automatically and optimally charges the batteries with all available solar energy thanks to a sophisticated algorithm that searches for the maximum power point tracking (MPPT). The maximum power point tracking continuously searches the solar generator for the optimal voltage to retrieve the maximum available power. This operating point varies constantly depending on the external conditions (solar radiation, temperature) to which it must adapt.
Nominal voltage of battery:
- VT-65: 12V, Max. PV generator power: 1000W, Max. Voltage of the PV generator: 80 VDC, Max. Charging current: 65 A
- 24V: 2000W, 150VDC
- 48V: 4000W, 150VDC
Product features and performances:
- Ensures optimal energy use
- Tracking efficiency: >99%
- Efficiency: 98%
- 4-stage charger for longer battery life
- 8 predefined standard battery charging curves
- Free programming of the battery charging curve with the RCC-02/-03
- Low self-consumption: < 1W in night mode
- Protection against incorrect connection
- Protection against reverse polarity
- Fully configurable IP54 housing
- Comprehensive display, programming, and data logging with the RCC-02/-03
- Up to 15 VarioTracks can be connected in parallel on the same communication bus
- Compatible with all solar systems
- Optimal use in an Xtender system with a synchronized battery management model
Dimensions (L/W/H) [mm]: VT-65: 120/220/310, Weight: 5.2 kg
General information about batteries can be found under: Things to know about batteries. General information about charging batteries can be found under: Things to know about charging batteries. General information about solar technology can be found under: Things to know about solar technology.
4. Studer 1883 Studer VarioTrack VT-40
The Studer VarioTrack VT-40 is a highly advanced MPPT solar charge controller specifically designed for the efficient use of solar energy. With an advanced algorithm, it continuously optimizes the maximum power point to charge the battery effectively and extend its lifespan. The VarioTrack VT-40 meets the highest industry standards and, thanks to its robust construction and IP54 protection rating, is ideal for use in demanding environments. It offers comprehensive protection features, including reverse polarity protection and protection against incorrect connections, making it a reliable choice for various solar systems. The flexibility of the device is highlighted by the ability to freely program the battery charging curve and its compatibility with various communication sets. Thus, the VarioTrack VT-40 is an optimal solution for anyone seeking efficient and long-lasting energy supply through solar power.
- Tracking efficiency of over 99% for maximum energy yield
- Efficiency of over 97% for optimal battery charging
- Fully configurable with 8 predefined battery charging curves
- Low self-consumption of less than 1W in night operation
- Up to 15 VarioTrack devices can be connected in parallel.
