Best Unex products in the Cable trunking category
On this page you'll find a ranking of the best Unex products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Unex Edge moulding
Unex 73880 Edge moulding for flat angle U24X.
2. Unex Grey partition wall
Unex 66831-48 Partition wall halogen-free 100.

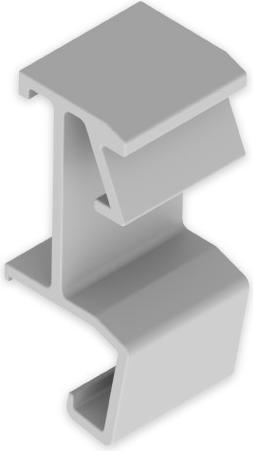

3. Unex Lid spacer
Unex Cover Spacer 67855-48
Manufacturer: Unex
Description: Cover spacer made of U48X
Type: 67855-48
Suitable for cable trough: no
Suitable for cable ladder: yes
Suitable for cable channel: no
Material: Plastic
Stainless steel, pickled: no
Material quality: other
Surface protection: other
This element allows the cover of the cable ladder to be raised and secured against potential weather influences (wind, etc.). It also ensures good ventilation for the cables. Insulating material, halogen-free. Safe, easy, and quick installation. Color: Agate gray RAL 7038.

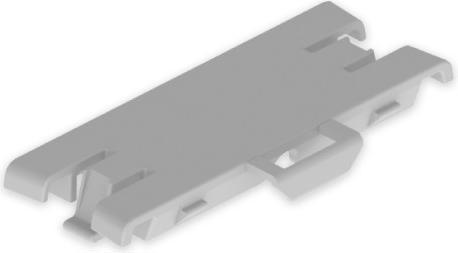

4. Unex Clamp
Unex Clamp 73862-00
Manufacturer: Unex
Description: Clamp 90mm
Type: 73862-00
Width: 90 mm
Height: 26 mm
Clamp Length: fixed
Material: Plastic
Material Quality: Polyvinyl Chloride (PVC)
Surface Protection: other
Halogen-free: no
Mounting Type: snap-in
With potential equalization: no
Suitable for function maintenance: no
Color: other
Unex Clamp 73862-00: additional details
For secure and easy cable management in the channel. Provides a firm hold on the cover even in difficult locations: impact-resistant, suitable for use on standpipes, for overhanging installations, outdoors, etc. One clamp for fastening to the sidewalls is included for every 0.5 m of channel. Additional clamps can be added along the channel as needed. Quick installation by pressing against the channel sidewalls, even with partitions mounted on the channel floor. Compatible with channels measuring 40/60x90 pure white and 60x90 light gray.

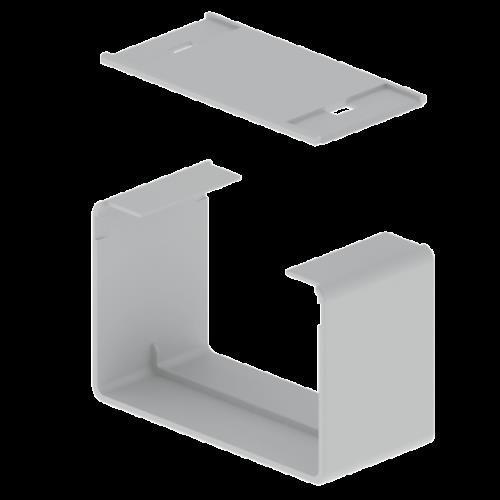

5. Unex Joint cover
The Unex joint cover is a practical solution for protecting and covering interfaces on cable trays and covers. It offers a high level of protection according to IP3X and is made of insulating plastic, making it ideal for use in various environments. The installation is simple and quick, which makes the process more efficient. With its light gray color (RAL7035), the cover blends harmoniously into different work environments and provides a clean and tidy appearance. This joint cover is not only functional but also durable and reliable, making it a valuable addition to any cable installation.
- Protection level IP3X for increased safety
- Easy and quick installation
- Made from insulating plastic.

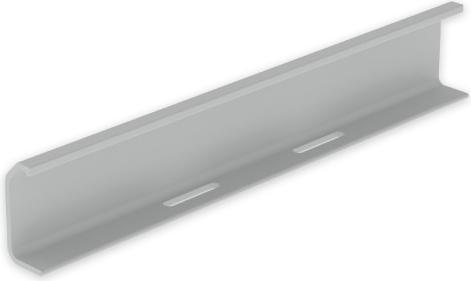

6. Unex Butt joint connector 67825-04light grey RAL7035 85mm U23X
Unex joint connector 67825-04
Manufacturer: Unex
Designation: Joint connector
Type: 67825-04
Version: Longitudinal connector
Horizontal joint connector: No
Vertical joint connector: No
Connection type: Screw connector
Suitable for mesh cable tray: No
Suitable for cable ladder: Yes
Suitable for cable tray: No
Suitable for cable support system width: 200-600 mm
Suitable for cable support system height: 85 mm
Suitable for mesh cable tray wire: 0 mm
Length: 500 mm
Suitable for functional integrity: No
Material: Plastic
Stainless steel, pickled: No
Material grade: Polyvinyl chloride (PVC)
Surface protection: Other
Colour: Grey
RAL number: 7035
Unex joint connector 67825-04: Further details
For mechanical connection of cable ladder sections. Allows expansion to be absorbed. Insulating material. Colour: Light grey RAL 7035.
Cable trunking
CHF11.90 CHF23.80/1m
Unex Butt joint connector 67825-04light grey RAL7035 85mm U23X
50 cm

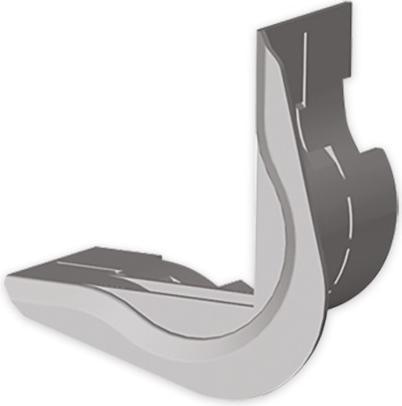

7. Unex Angle connector, rising, light grey 66843 Angle connector version, screw connection type
Unex Angle Connector 66843
Manufacturer: Unex
Designation: Rising angle connector, light gray
Type: 66843
Design: Angle connector
Horizontal joint connector: no
Vertical joint connector: no
Connection type: Screw connector
Suitable for grid trough: no
Suitable for cable ladder: no
Suitable for cable tray: yes
Suitable for cable support system width: 75 - 400 mm
Suitable for cable support system height: 60 mm
Length: 152 mm
Suitable for function maintenance: no
Material: Plastic
Stainless steel, pickled: no
Material quality: Polyvinyl chloride (PVC)
Surface protection: other
Operating temperature: -20 - 60 °C
Color: gray
RAL number: 7035
Unex Angle Connector 66843: additional details
For vertical, rising direction changes (+45°). Color: gray. Insulating material. Additional stability for the cable tray. Accessory for data lines. Safety and quick assembly like with the joint connectors.
Cable trunking
CHF10.53 CHF69.28/1m
Unex Angle connector, rising, light grey 66843 Angle connector version, screw connection type
15.20 cm
8. Unex Cable tray perforated grey
For carrying, protecting and guiding power and telecoms cables.
Insulating material, halogen-free.
Delivery length: 3m.
Colour: agate grey RAL 7038 Insulating halogen-free cable tray system in accordance with EN 61537:2007.
Insulating halogen-free cable tray system with cover in accordance with EN 50085-1:1997. Electrical safety.
Mechanical safety: full load test type I in accordance with DIN EN 61537
impact resistance with degree of protection up to 20J), safety against fire (glow wire test 960°C
non-flame propagating).
RoHS compliant.
Weathering behaviour.
Recyclable. Quick and easy installation. No burr when cutting. Accessories for data cables. Suitable for outdoor use. Resistant to corrosion and chemicals.
9. Unex Joint connector
For the mechanical connection of cable tray sections. The use of bolts with clamps is recommended at all joint connections to absorb possible expansions in areas with temperature fluctuations (e.g., in outdoor installations). Color: Agate gray RAL 7038. Insulating material. Very stable.
10. Unex Weighting stone
Unex weighting block 60305-48
Manufacturer: Unex
Designation: Weighting block grey 300 U48X
Type: 60305-48
Length: 300 mm
Width: 148 mm
Height: 85 mm
Suitable for cable support system width: 75...300 mm
Version: Wall bracket
Load capacity: 0.842 kN
Suitable for functional integrity: no
Material: Plastic
Material quality: other
Surface protection: other
Colour: grey
RAL number: 7035
Unex weighting block 60305-48: more details
Weighting block compatible with cable trays, cable ladders or conduits. Safe, simple and quick installation: ready-to-install support that stays in place due to its own weight, does not need to be fixed to the ground and has a rubber underside to prevent damage to the roof surface. The weighting block consists of an insulating rail (made of U48X halogen-free) and a concrete base. Corrosion-resistant material with good behaviour against weathering and UV rays.
Dimensions: 300x150x85
Weight: 6.1 kg.
