Best Niedax products in the Cable trunking category
On this page you'll find a ranking of the best Niedax products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

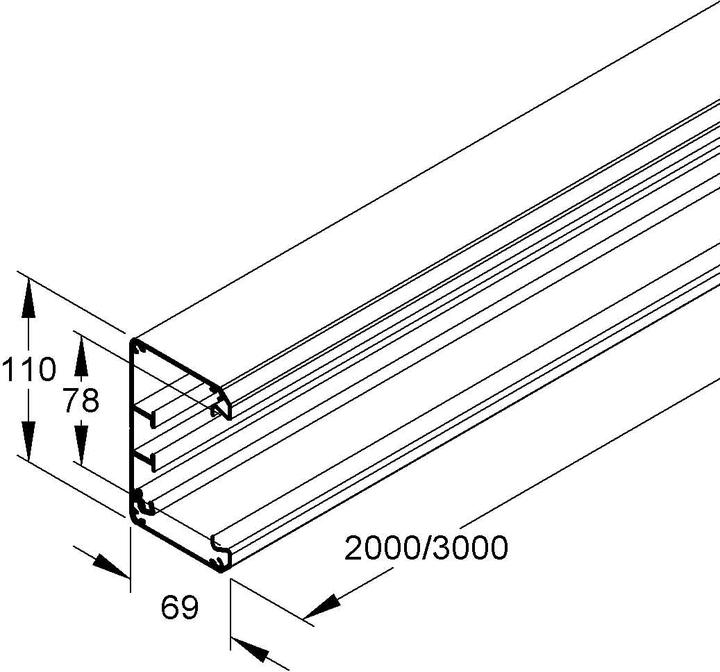

1. Niedax Aluminium appliance channel
Niedax GAU 110-78 P GK lower part, 1 pc.
2. Niedax NIE ZF 175.650-90 Strain relief Function maintenance with clear internal dimension 650mm, Leic
Niedax Strain Relief ZF 175.650-90
Manufacturer: Niedax
Description: Light strain relief
Internal dimension: 650 mm
Type: ZF 175.650-90
Accessory/Spare part type: Strain relief
Accessory: yes
Spare part: no
Further details on the Niedax Strain Relief ZF 175.650-90:
The set includes a housing, an ablative sealing mass cartridge, a labeling plate, and the mounting materials (2 pieces of threaded rods M10X300, corresponding hex nuts, and sliding nuts (GSM 410 V U for C-profile rails with a slot width of 16 mm) as well as washers). For mounting on C-profile rails 2986 or on the rung of the STM 60 ladder tray, the sliding nuts (GMZ M10 F) must be ordered separately. The mounting can be done either directly in the ground or with sliding nuts in the C-profile rail.
For vertical cable routing in cable installations with integrated functional integrity according to DIN 4102-12 for functional integrity classes E30, E60, or E90 in single installation (screw spacing clamps SAS or bracket clamps B or BU) or with ladder trays (STL, STM, or STIC).
Expert opinion no.: GS 3.2/20-027-1 (MFPA Leipzig GmbH)
Maximum vertical spacing of the strain relief: every 3500 mm
Maximum cable self-weight: 20 kg/m
Dimensions (approx. dimensions) H x W x D: 200 x 750 x 225 mm (external)
Clear internal dimension: 650 mm
Housing material: Lightweight concrete, fiberglass reinforced, cement-bound, mineral fiber
EAN: 4013339193912.
Cable trunking
CHF349.– CHF1745.–/1m
Niedax NIE ZF 175.650-90 Strain relief Function maintenance with clear internal dimension 650mm, Leic
20 cm

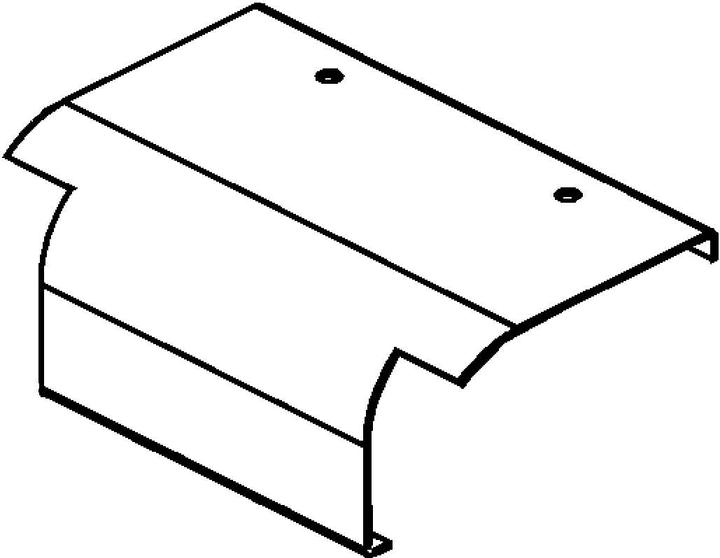

3. Niedax RESCD 150 S
Niedax cover for bend 90° RESCD 150 S
Manufacturer: Niedax
Designation: Cover for bend 90°
Width: 155.5 mm
Type: RESCD 150 S
Angle: 90°
Change of direction: Horizontal
Suitable for cable tray: Yes
Suitable for mesh cable tray: No
Suitable for cable ladder: No
Mounting type: Surface-mounted
Hinged: No
Suitable for functional integrity: No
Material: Steel
Material grade: Other
Surface protection: Strip galvanised
This cover is designed for CITO bend 90°, without twist locks, and features a height-independent design. It is additionally used for covering a 90° bend manufactured with a corner extension piece. Dimensions (approximate): B (inside): 155.5 mm. Material: Steel, strip galvanised according to DIN EN 10346.

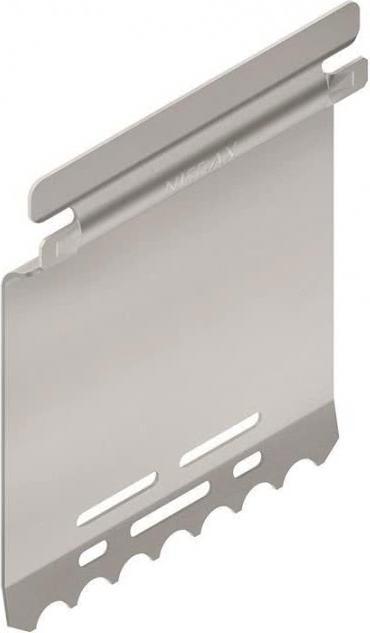

4. Niedax NIE KLAB 500 F end outlet plate B500mm f.v.w.pre-assembled accessories
Niedax KLAB 500 F end outlet plate B500mm.
Cable trunking
CHF119.– CHF1586.66/1m
Niedax NIE KLAB 500 F end outlet plate B500mm f.v.w.pre-assembled accessories
7.50 cm
5. Niedax NIE KLAB 600 F end outlet plate B600mm f.v.w.pre-assembled accessories
Niedax KLAB 600 F end outlet plate B600mm.
Cable trunking
CHF129.–
Niedax NIE KLAB 600 F end outlet plate B600mm f.v.w.pre-assembled accessories
6. Niedax Support angle
The Niedax support bracket is a robust and versatile solution for suspending wire trays, cable trays, and distribution trays. With a width of 190 mm, this support bracket provides reliable support for various applications in cable protection and management. It is made of strip galvanized steel, which gives it high corrosion resistance, making it ideal for use in different environments. The support bracket is designed for both central and dual-sided suspension and comes with the necessary mounting accessories, facilitating installation. Its compatibility with various tray types ensures that it can be used in a wide range of projects, making it a flexible solution for professionals in electrical installation.
- Suitable for suspending wire trays, cable trays, and distribution trays
- Includes proportional mounting accessories
- Made of strip galvanized steel according to DIN EN 10346
- Compatible with various tray types such as MTC, RLV, and RSV.
7. Niedax NIE MIABK600F Connection floor H600mm fire-retardant.
Niedax MIABK600F Floor connection.
Cable trunking
CHF72.90 CHF364.50/1m
Niedax NIE MIABK600F Connection floor H600mm fire-retardant.
20 cm
8. Niedax Hanging handle 500mm HU5050/500 **
Niedax Hanging Handle HU 5050/500
Manufacturer: Niedax
Designation: Hanging Handle
Type: HU 5050/500
Length: 505 mm
Profile width: 50 mm
Profile height: 50 mm
Design: U-profile
Load capacity: 4 kN
Suitable for functional maintenance: Yes
Material: Steel
Stainless steel, pickled: No
Material grade: Other
Surface protection: Hot-dip galvanised
Weight: 1.65968 kg
Niedax Hanging Handle HU 5050/500 further details:
Hanging handle with a three-sided continuously perforated U-profile and a welded-on top plate, designed for outriggers for one-, two-, and three-sided installation. This design prevents deformation of the suspended support profile when installing outriggers. For static reasons, the suspended support spacer profile HDS 50.50 F with a hexagon head screw should be considered. If the bracket is attached to the suspended support profile on one side, it is preferable to align the closed side of the bracket with the profile web of the suspended support. For static reasons and to enable the protective cap to be fitted without issues, the bracket must be mounted at a distance of 50 mm (lower edge of bracket to end of hanger post) above the end of the hanger post.
For use in functional maintenance or for suspended ceilings with fire protection requirements, please observe additional regulations. VDE certified.
For outriggers: KTAL... KTAM... KTA...
For cantilevers: KTAS 100 - 400 (functional integrity/KFO)
For cantilevers: KTA 100 - 600 (functional integrity/MLAR)
Dimensions (approx.):
Top plate L x W x d: 140 x 80 x 5 mm
Fixing holes: 13 x 20 mm
Central distance: 100 mm
U-profile: 50 x 50 x 50 mm
Material thickness t: 2.5 mm
Three-sided profile perforation, single row: 12 x 30 mm
Central distance: 50 mm
Total length L: 505 mm
Material: Steel, hot-dip galvanised according to DIN EN ISO 1461
EAN: 4013339858781.
9. Niedax Joint connector LST40 ** LST 40
Niedax Joint Connector LST 40
Manufacturer: Niedax
Designation: Joint Connector
Type: LST 40
Height of the cable duct: 40 mm
Design: other
Material: Steel
Material quality: other
Halogen-free: yes
Suitable for function maintenance: no
With potential equalization: yes
The Niedax Joint Connector LST 40 is a joint connector with 6.3 mm flat plugs for the additional connection of potential equalization lines. It electrically and mechanically connects the channel bases and fittings in one operation and can be used in the side parts of the circuit protection channels. The potential equalization occurs automatically upon insertion. VDE certified!
Suitable for circuit protection channels: LLK... / LUK... with a height of 40 mm and their fittings.
Length L (approx. measurement): 80 mm
Material: Steel, strip galvanized according to DIN EN 10346
Requirement: 2 pieces per joint
EAN: 4013339516506.

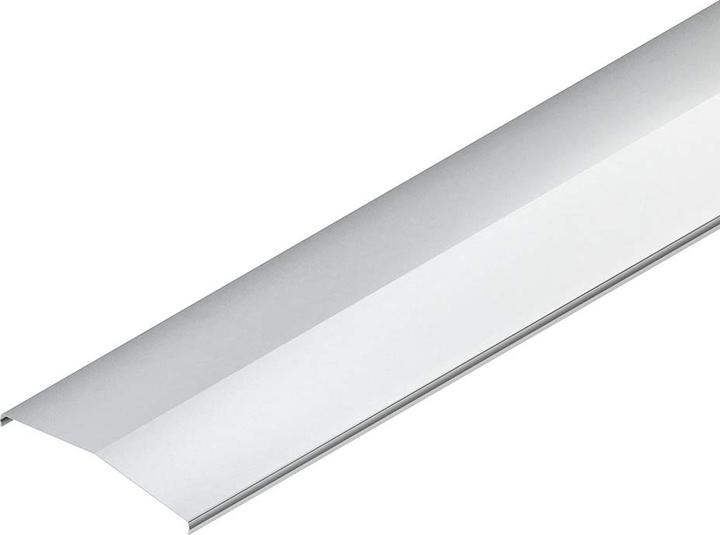

10. Niedax GRD 300/7.5° E3
Niedax GRD300/7.5° E3 Cover for grating
