Zuwa-Zumpe ZUWA - Pumpe und Betankungssysteme f. Diesel E 3000 Dieselpumpe, 12 V

Pump and fueling systems for diesel E 3000 Diesel pump, 12 V rotary vane pump with 12 and 24 Volt DC motor. The rotary vane transfer pumps are ideal as a primary installation for construction machinery due to their compact design. The pumps are reliable, economical, and operate with minimal noise.

Models: Panther 56/72, BI 100, and E 3000. The pumps are self-priming and feature a built-in pressure relief valve (bypass). The Panther model includes a built-in filter (500 µm) on the suction side and a lift protection device. Extensive accessories are available.

Maximum duty cycle of 30 minutes.

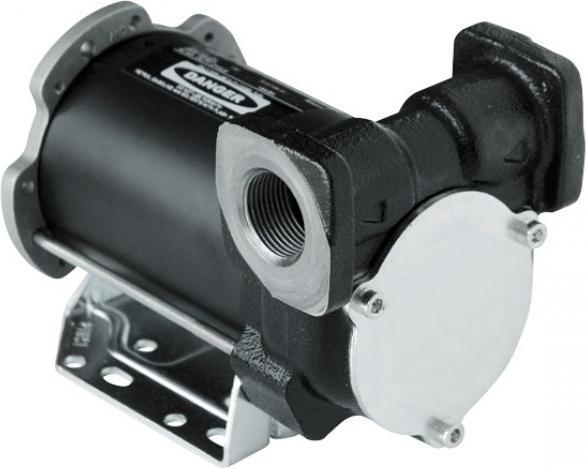

Rotary vane pump E 3000: The E3000 diesel pump is a powerful and reliable pump with a 12 and 24 Volt DC motor for light diesel transfer tasks.

CARRY E 3000: The Carry E3000 rotary vane pump is our portable version, equipped with a sturdy handle for safe transport of the pump.

Features: Pump with carrying handle, on/off switch, battery cable. The transfer pumps can be purchased with either horizontal or vertical connections.

Note: Do not exceed the 30-minute duty cycle!

Optional accessories: Upon request, connection box 12 V / 24 V with 4 m cable and clamps, item P17018.

Technical data:

• Article number: 1206283N
• Self-priming rotary vane pump E 3000
• Max. flow rate: 50 l/min
• Max. flow rate: 3.0 m³/h
• Max. delivery pressure: 1.5 bar
• Inlet/Outlet: 3/4" internal thread, horizontal
• Bypass valve
• Material of pump housing: Cast iron
• Rated voltage of electric motor (DC): 12 V
• Rated power: 0.3 kW
• Rated current (DC): 24 A
• Max. speed: 2600 min⁻¹
• Max. duty cycle: 30 min.
• Protection class: IP55
• Packaging dimensions: 200 x 120 x 140 mm
• Weight: 3.5 kg
