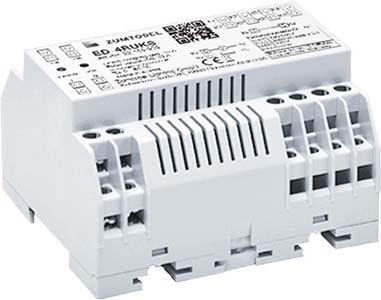

Zumtobel Relay output (DALI) Control cabinet 22169939

DALI relay output device for switching lamps and other electrical consumers for mains voltages up to 230/240 V. The device features 4 independently controllable relay contacts on the output side. The maximum total current through these contacts is designed for 10 A each (at cosj=1). The connection of consumers and the input-side mains and DALI supply is done via screw terminals. In the event of a power failure, the relays drop out. White plastic housing made of flame-retardant polycarbonate, halogen-free. The device is mounted in switch and distribution cabinets on a 35 mm DIN rail with an allowable ambient temperature of 0 to 50 °C. Protection class IP20. Dimensions: 90 x 105 x 58 mm.
