Zumtobel Multifunctional control unit 22162349
Product details
Zumtobel Group Control Unit ws LM-CIRIA WH
Manufacturer: Zumtobel Group
Designation: Control unit ws for lighting
Type: LM-CIRIA WH
Material: Glass
Protection class (IP): IP20

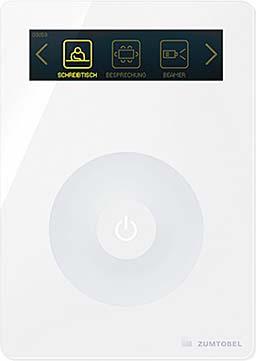

The multifunctional control unit with capacitive touch allows for the selection of up to 20 lighting moods and individual control of various functions. It features a central, white backlit ON/OFF button. The lighting can be dimmed continuously, or blinds and other functions can be finely adjusted using the dimming ring by rotating it clockwise or counterclockwise.
The housing is fully enclosed and has a smooth glass surface in white. An OLED display with intuitive and labeled symbols makes operation and menu navigation easier.
Installation is done in a standard Euro socket according to DIN 0606 or a UK metal backbox (not included) with a minimum depth of 50 mm. After installation, the screws are not visible.
The control unit is connected to the LUXMATE bus (polarity-sensitive) and the 230 VAC power supply using screw terminal blocks.
Dimensions: 130 x 92 x 50 mm
Weight: 0.3 kg
EAN: 4024318848846.
Colour | White |
Number of inlets | 2 x |
Width | 130 mm |
Item number | 32456313 |
Manufacturer | Zumtobel |
Category | Accessories switch programme |
Manufacturer no. | 22162349 |
Release date | 16.1.2023 |
Colour | White |
Exact colour description | White |
Material group | Glass |
Material | Glass |
Number of inlets | 2 x |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
Protection type (IP code) | IP20 |
Country of origin | Austria, Germany |
CO₂ emissions | 19.87 kg |
Climate contribution | CHF 0.48 |
Length | 92 mm |
Width | 130 mm |
Height | 50 mm |
Weight | 300 g |
