Product details

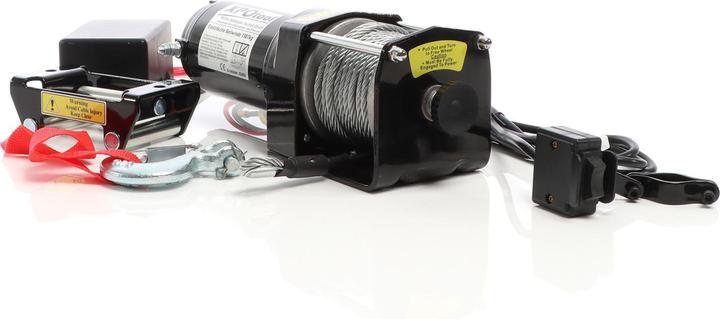

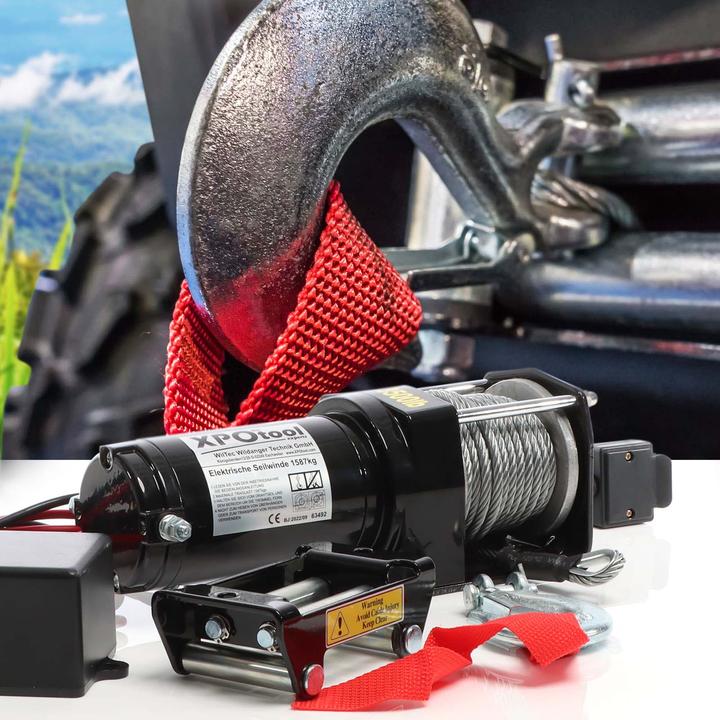

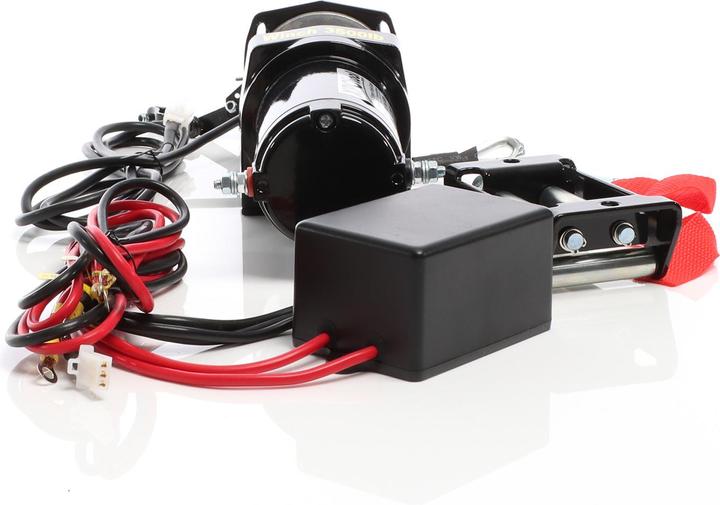

The electric cable winch from XPOtool is a reliable aid for pulling heavy loads such as vehicles, trailers or boats. The 1.5 hp motor is powered by 12 V and enables a maximum load capacity of 1587 kg to be moved. For this purpose, the motorised winch has a planetary gearbox or planetary gearbox with a gear ratio of 136:1. The load is secured using a load hook and additional safety latch to make the cable winch safer to use. The 10.5 m long steel cable has a diameter of 5.5 mm and is extremely robust. With overall dimensions of 316 x 120 x 106 mm, the electric cable winch does not take up much space, even though it can pull such heavy loads. The cable-connected toggle switch ensures greater freedom of movement when loading or controlling the cable winch. Depending on how much weight is to be moved, this has an influence on the pulling speed and the motor amperage: Maximum pulling load - pulling speed - motor amperage. 0 kg - 3.3 m/min - 12 A. 454 kg - 2.5 m/min - 60 A. 907 kg - 1.1 m/min - 80 A. 1590 kg - 0.8 m/min - 130 A. In addition, the windings on the drum are related to the possible tensile force and the rope length on the drum. This then looks as follows: Winding(s) on the drum - possible tractive force - rope on the drum. 1 - 1590 kg - 1.5 m. 2 - 1050 kg - 3.5 m. 3 - 858 kg - 5.9 m. 4 - 720 kg - 8.7 m. 5 - 620 kg - 10.0 m.
