XPOtool 3pc Ball Joint Puller Extractor Remover Tool Set for Pulling Ball Joints Tie Rods Car Repair

Does the car suddenly stop tracking? Is it pulling to the right or left? In this case, you should check whether the ball joints and track rod need to be replaced.

This 3-piece set from XPOtool, which consists of a ball joint puller and tie rod end remover, is the right tool for hobby mechanics and professionals alike. The tools are universally suitable for almost all vehicle types for loosening ball studs and tie rod ends.

The set is galvanised to increase durability.

• Universal ball joint puller plus tie rod end extractor
• For pressing out the ball studs when removing the ball joints
• Made from forged tool steel
• For all vehicle types in the passenger car sector

The three tools have the following properties:

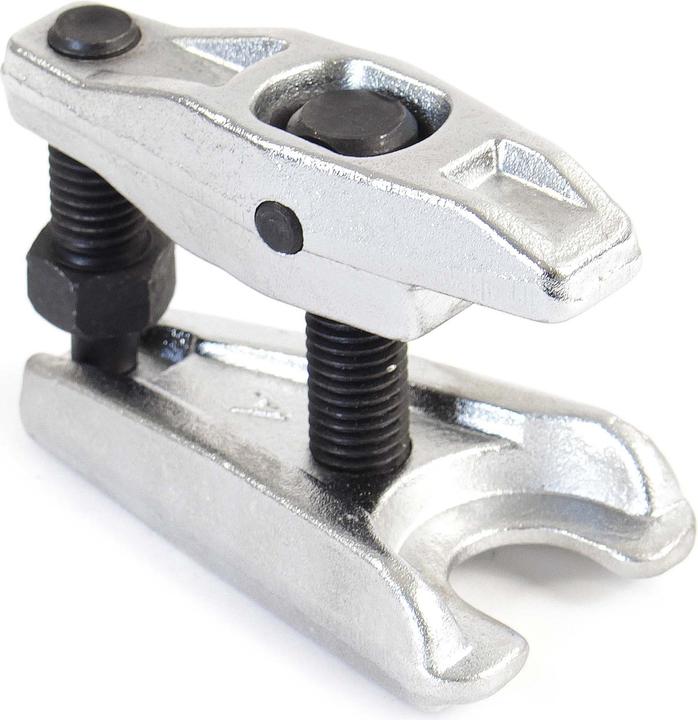

Model A

• For pressing out the ball joint pins on tie rods, stabilisers, suspension joints and coupling rods
• Fork opening: 22-18 mm
• Drive via spanner width: 21 mm, external hexagon
• Pressure spindle with fine thread M16 x 1.5 mm, with ball in the centre, clamping range adjustable in two positions to 25 or 55 mm
• Length: 156 mm

Model B

• For pressing out the ball joint pins on the steering lever, tie rod, axle, stabiliser and steering linkage
• Can be used on almost all common vehicles
• Large clamping range thanks to stepless adjustment and rotation of the lower part
• Drive with spanner with spanner width 19 mm
• Jaw opening: 19.5 mm
• Adjustable clamping range: 20-50 mm height
• Lightweight tool with solid handling

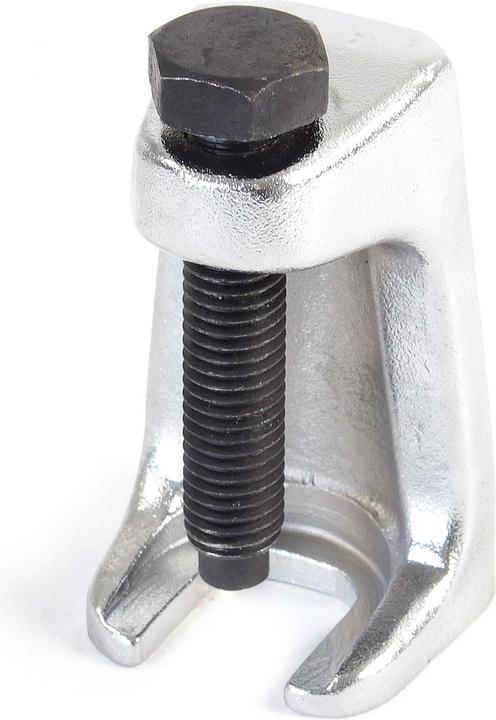

Model C

• 1 tie rod end puller, forged and galvanised
• Jaw opening: 19 mm
• Jaw depth: 22 mm
• Width: 40 mm
• Insertion height: 40 mm
• Total length of the screw: 71 mm (M12 x 1.75 thread)
• Total height: 71 mm
• Drive: Hexagon (SW19 mm)
