Wiltec Three-roll round bending machine 480x150x200mm to 320mm sheet metal processing

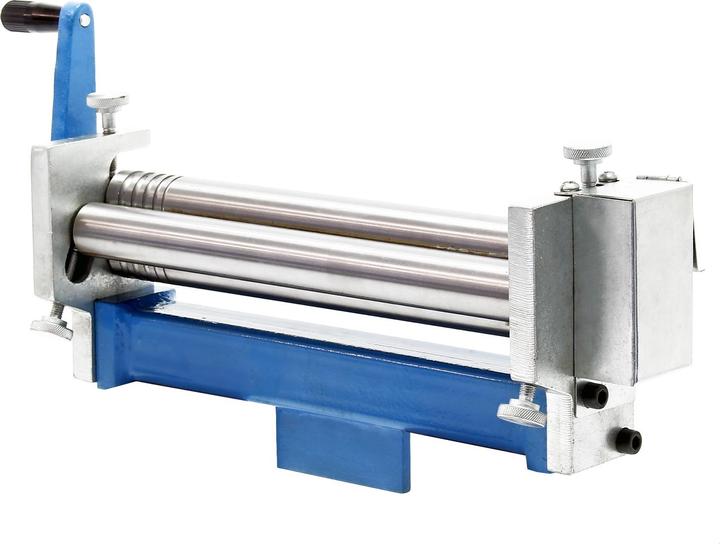

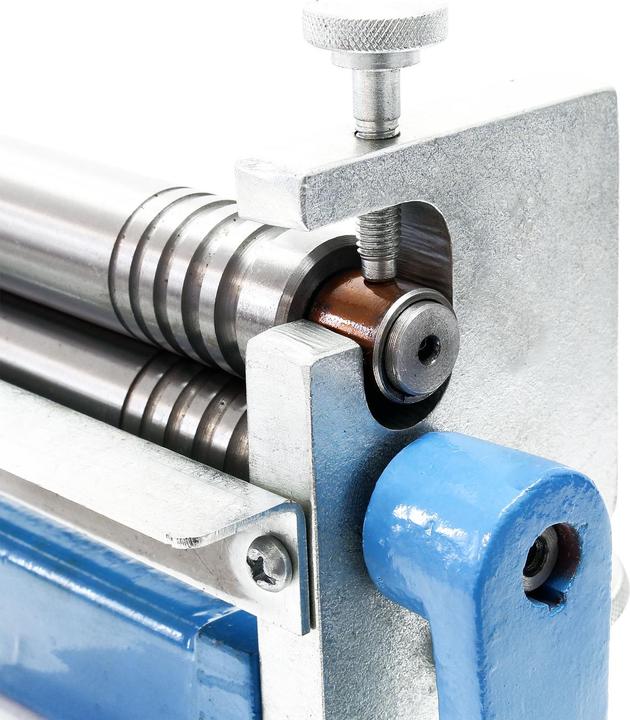

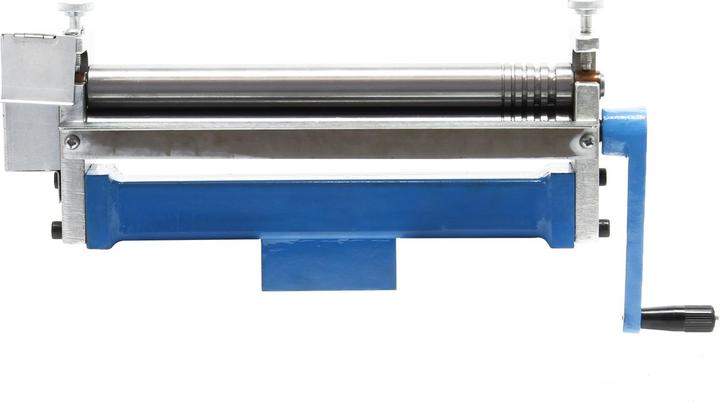

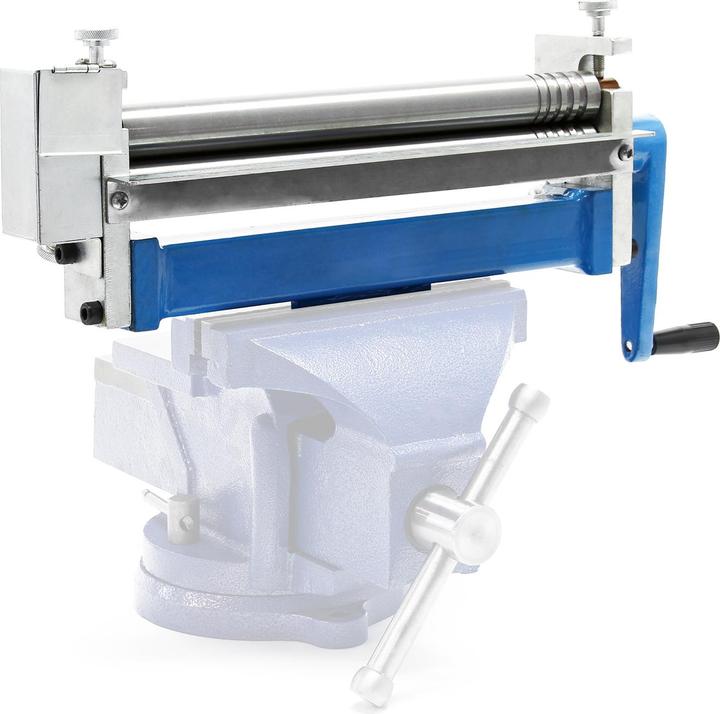

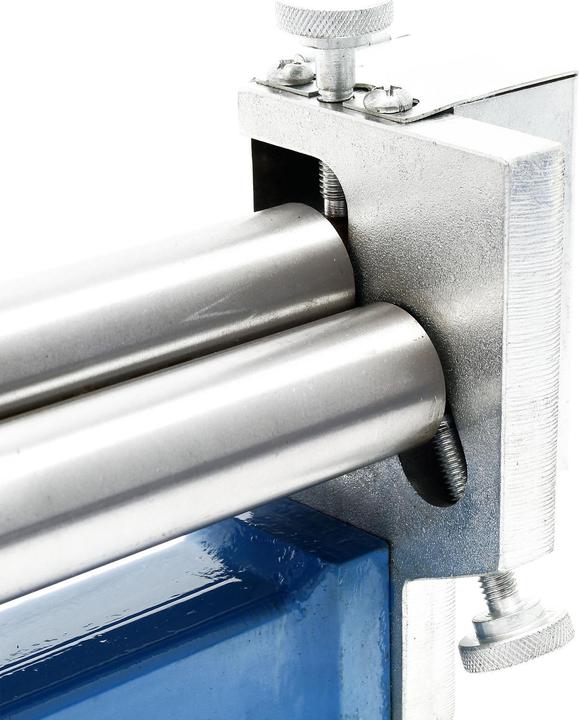

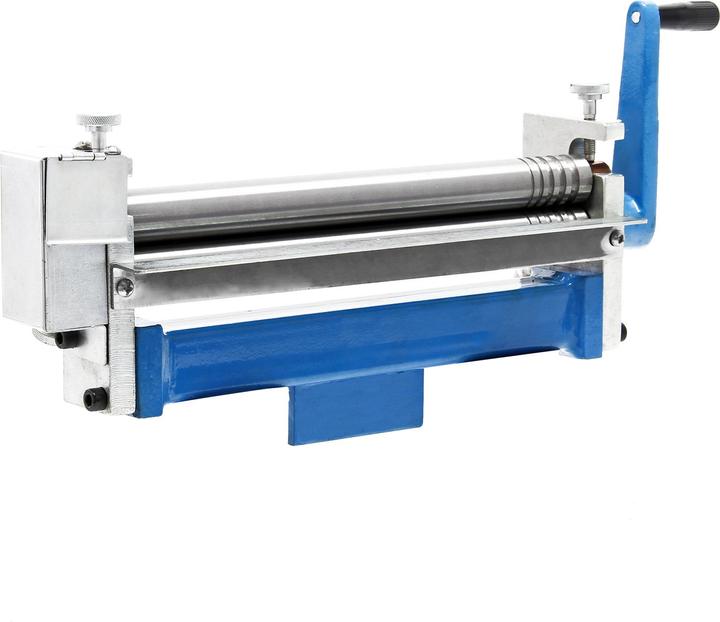

The three-roller round bending machine is the right tool for processing sheets, wires, and much more. The machine's application area is diverse. For example, cylinders, pipes, and curves can be formed, or sheets can be straightened. With this machine, sheet metal work can be carried out easily and precisely. There are individual adjustment options for roll radius and material thickness. The round bending machine features three rollers that are manually operated via a crank and can bend metals up to a thickness of 2.5 mm. Additionally, the machine can also deform rods with a maximum diameter of 5 mm. For this purpose, there are five different insert grooves with diameters of 1 mm, 2 mm, 3 mm, 4 mm, and 5 mm located at the edge of the rollers. Depending on the desired curvature and the available material thickness, the distance and roller angle can be adjusted accordingly. The round bending machine can process workpieces with a maximum width of 320 mm. The machine dimensions are 480 x 150 x 200 mm (L x W x H). The maximum working width is 320 mm, the diameter of the rollers is 30 cm, and the minimum bending radius is 40 mm. The sheet thickness is a maximum of 1 mm for steel, 2.5 mm for aluminum/copper, and 1 mm for brass. The wire diameter can be 1, 2, 3, 4, or 5 mm. The diameter of the roller is 5 mm.
